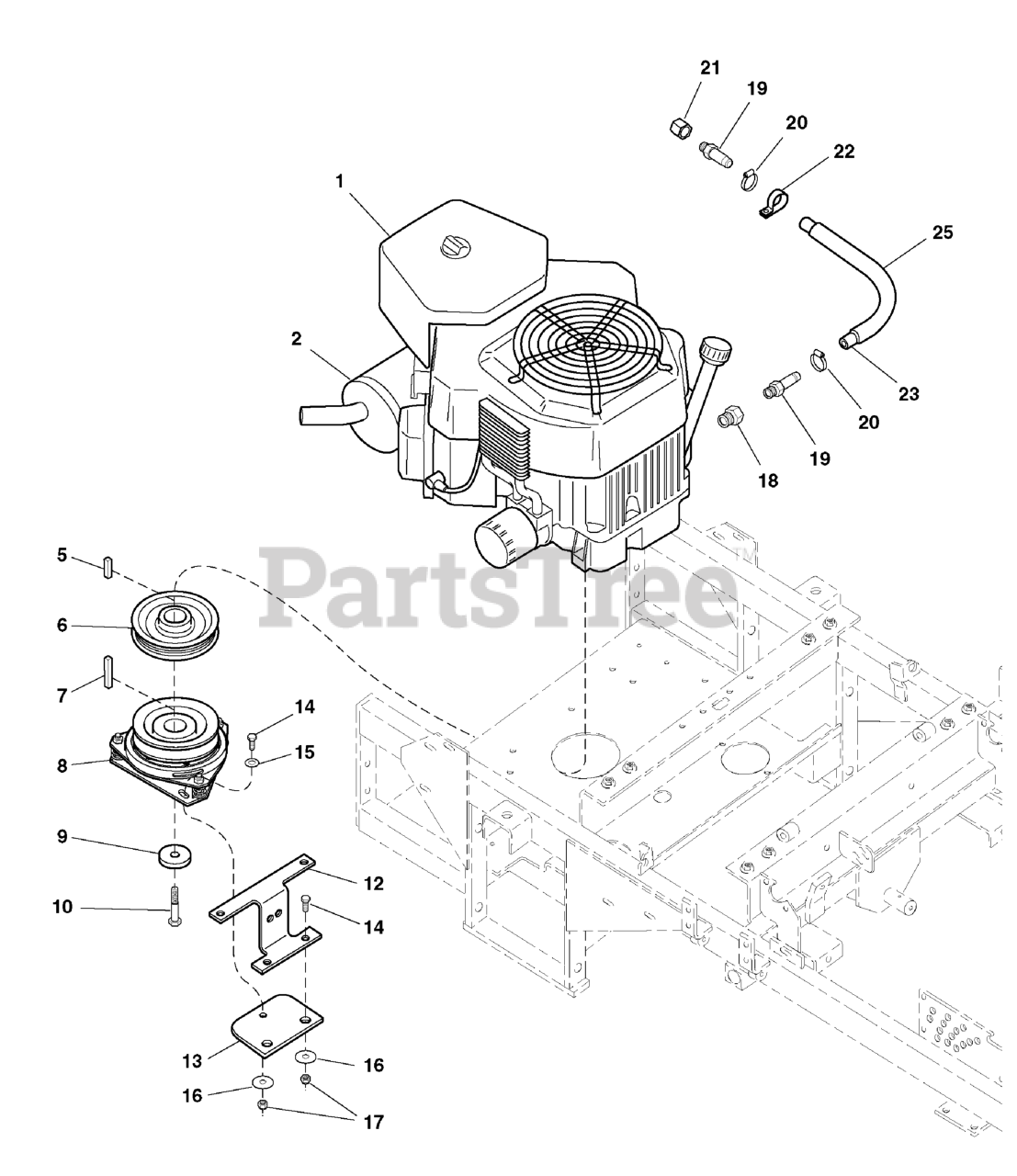

IS Z (5901078) - Ferris ISZ Series 52" Zero-Turn Mower, 25hp Kohler (SN: 2269 & Above) Engine & PTO Group Parts Diagram

ISZ Series 52" Zero-Turn Mower, 25hp Kohler

Engine & PTO Group Parts Diagram

  • Title

1

ENGINE, Kohler (Model CV25S)

$

$

Not available

2

Ferris 5022161

MUFFLER, Kohler
(Superseded to 5022161SM)

$509.99

$

Usually ships in 2-12 days

0

3

ENGINE, Kawasaki (Model FH680V)

Note: (Not Shown)

$

$

Not available

4

Ferris 5045417B

HEAT SHIELD, Kawasaki Muffler

Note: (Not Shown)

$50.99

$

Usually ships in 2-12 days

0

5

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

6

Ferris 5022154

PULLEY, Crankshaft

$188.99

$

Usually ships in 2-12 days

0

7

Ferris 5050407X3

KEY, 1/4 SQ. X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

8

Ferris 5022334

ELECTRIC CLUTCH
(Superseded to 5022334SM)

$723.99

$

Usually ships in 2-12 days

0

9

Ferris 5045475

SPACER, .45 x 1.88 x .38
(Superseded to 5045475SM)

$14.99

$

In Stock, only 1 left!

0

10

Ferris 5045938

CRANKSHAFT BOLT, 7/16 x 2-1/4
(Superseded to 5102863FS)

Note: (Kohler)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5045473

CRANKSHAFT BOLT, 7/16 x 1-1/2

Note: (Kawasaki)

$

$

Currently unavailable

12

Ferris 5045474B

ANCHOR, Clutch

$36.99

$

Usually ships in 2-12 days

0

13

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

14

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

17

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

Note: (Kawasaki only)

$15.99

$

Usually ships in 2-12 days

0

19

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

20

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

21

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

22

Ferris 5021500

CLAMP, Vinyl
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5050857X16

HOSE, 16" Long
(Superseded to 5050857X16SM)

Note: (Kohler)

$12.99

$

Usually ships in 2-12 days

0

24

Ferris 5050857X14

HOSE, 14"
(Superseded to 5050857X14YP)

Note: (Kawasaki)

$9.99

$

Usually ships in 2-12 days

0

25

Ferris 5050862X14

WIRE LOOM, 14"

Note: (Kohler)

$

$

Not available

26

Ferris 5050862X12

WIRE LOOM, 12"
(Superseded to 5050862X12SM)

Note: (Kawasaki)

$4.49

$

Usually ships in 2-12 days

0
