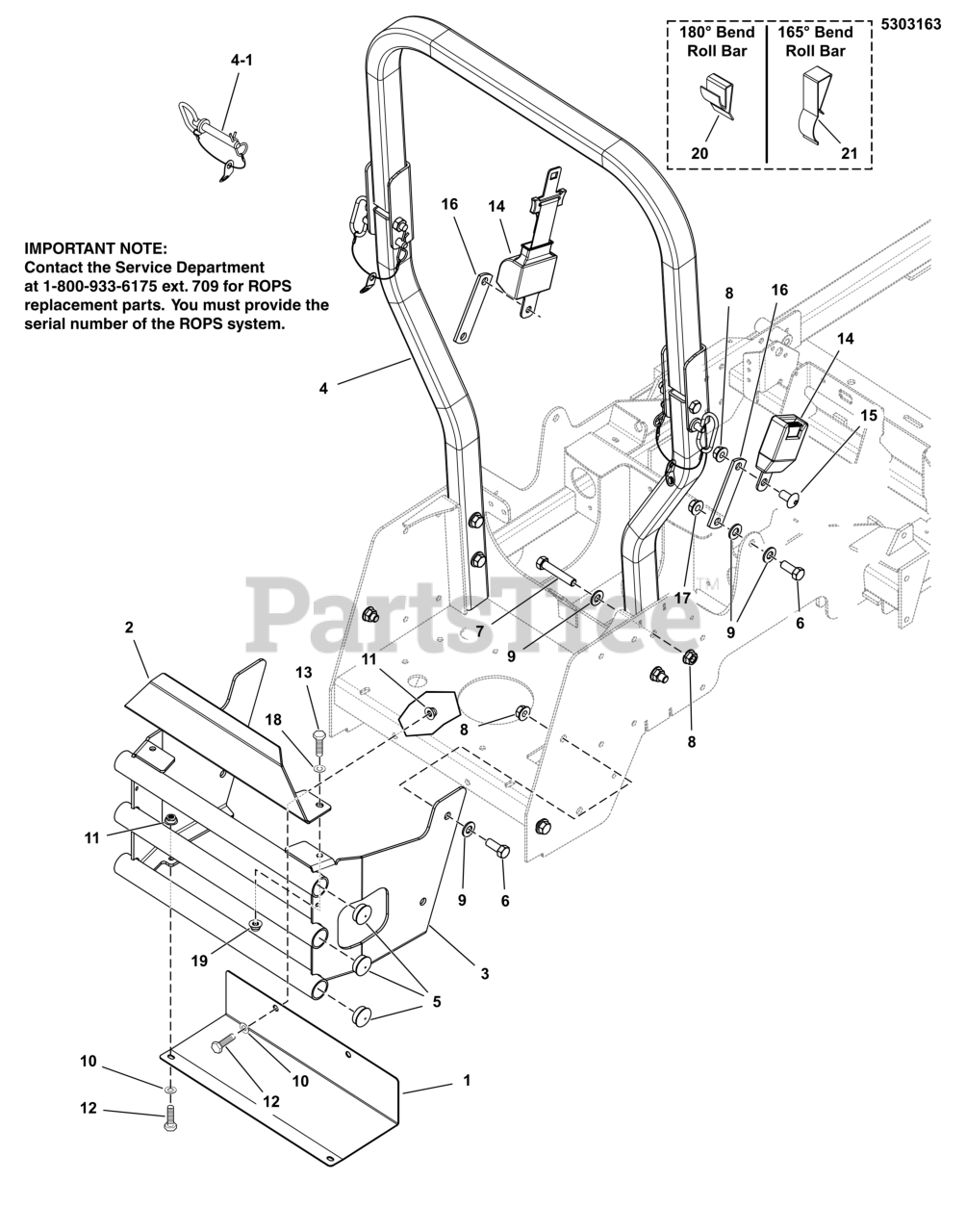

IS 700Z (5901816) - Ferris IS700Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, CARB, Side-Discharge Rear Bumper and ROPS Group S/N: 4000906410 and Below Parts Diagram

IS700Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, CARB, Side-Discharge

Rear Bumper and ROPS Group S/N: 4000906410 and Below Parts Diagram

  • Title

1

Ferris 5410485A

PLATE, HEAT SHIELD, IS700 - BLK
(Superseded to 5410485AYP)

$69.99

$

Usually ships in 2-12 days

0

2

Ferris 5410486B

PLATE, CARB PROTECTOR - RED
(Superseded to 5410486BFS)

$53.99

$

Usually ships in 2-12 days

0

3

Ferris 5410483B

WELD, BUMPER - IS700 - RED
(Superseded to 5410483BFS)

$266.99

$

Usually ships in 2-12 days

0

4

ROPS (Call 1-800-933-6175 ext. 2193 if replacing a ROPS)

$

$

Not available

4-1

Ferris 5100013SM

PIN, HITCH, .50 X 3.2

$35.99

$

Usually ships in 2-12 days

0

5

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

8

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

9

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

13

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

14

Ferris 5100139

SEAT BELT, RETRACTING - ASSM
(Superseded to 5100139SM)

$103.99

$

Usually ships in 2-12 days

0

15

Ferris 5100267

SCREW, 1/2-13 X 1.00, SHCS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5410295A

PLATE, SEAT BELT ANCHOR - BLK
(Superseded to 5410295AYP)

$7.49

$

Usually ships in 2-12 days

0

17

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

18

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

20

Ferris 5103403X1

ANTI-RATTLE SPRING, FEMCO #230328972 (SV)

Note: (180 Degree Bend Roll Bar)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5105140X1

ANTI-RATTLE SPRING, ROPS, 165 DEGREE (SV)

Note: (165 Degree Bend Roll Bar)

$5.99

$

Usually ships in 2-12 days

0
