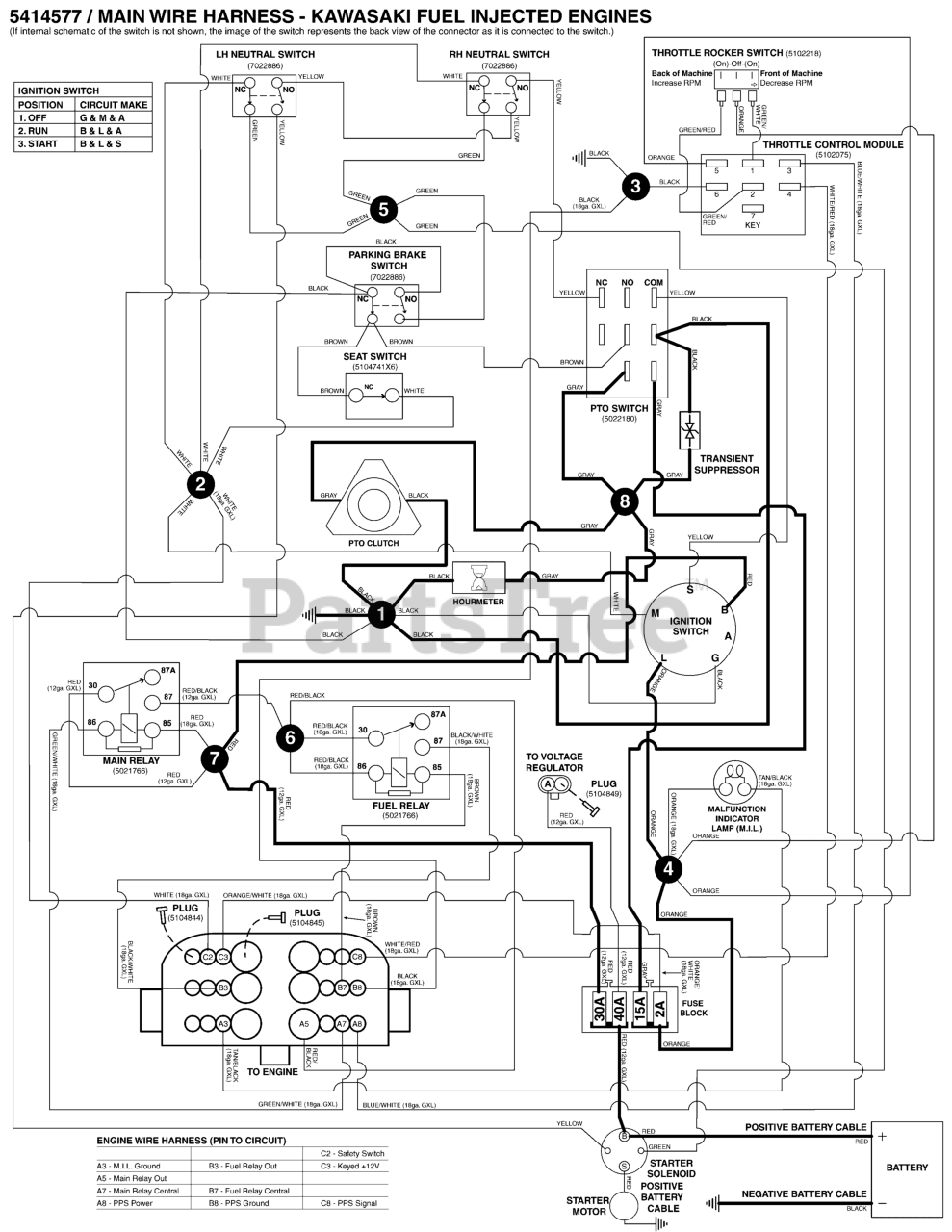

IS 700Z (5901505) - Ferris IS700Z Series 61" Zero-Turn Mower, 26hp Kawasaki, Side-Discharge Electrical Schematic - PTO Clutch Circuit - Kawasaki Fuel Injected S/N: 2017549125 & Below Parts Diagram

IS700Z Series 61" Zero-Turn Mower, 26hp Kawasaki, Side-Discharge

Electrical Schematic - PTO Clutch Circuit - Kawasaki Fuel Injected S/N: 2017549125 & Below Parts Diagram

  • Title
