IS 700Z (5901505) - Ferris IS700Z Series 61" Zero-Turn Mower, 26hp Kawasaki, Side-Discharge Electrical Group - S/N: 2017612395 - 2017954955 Parts Diagram

IS700Z Series 61" Zero-Turn Mower, 26hp Kawasaki, Side-Discharge

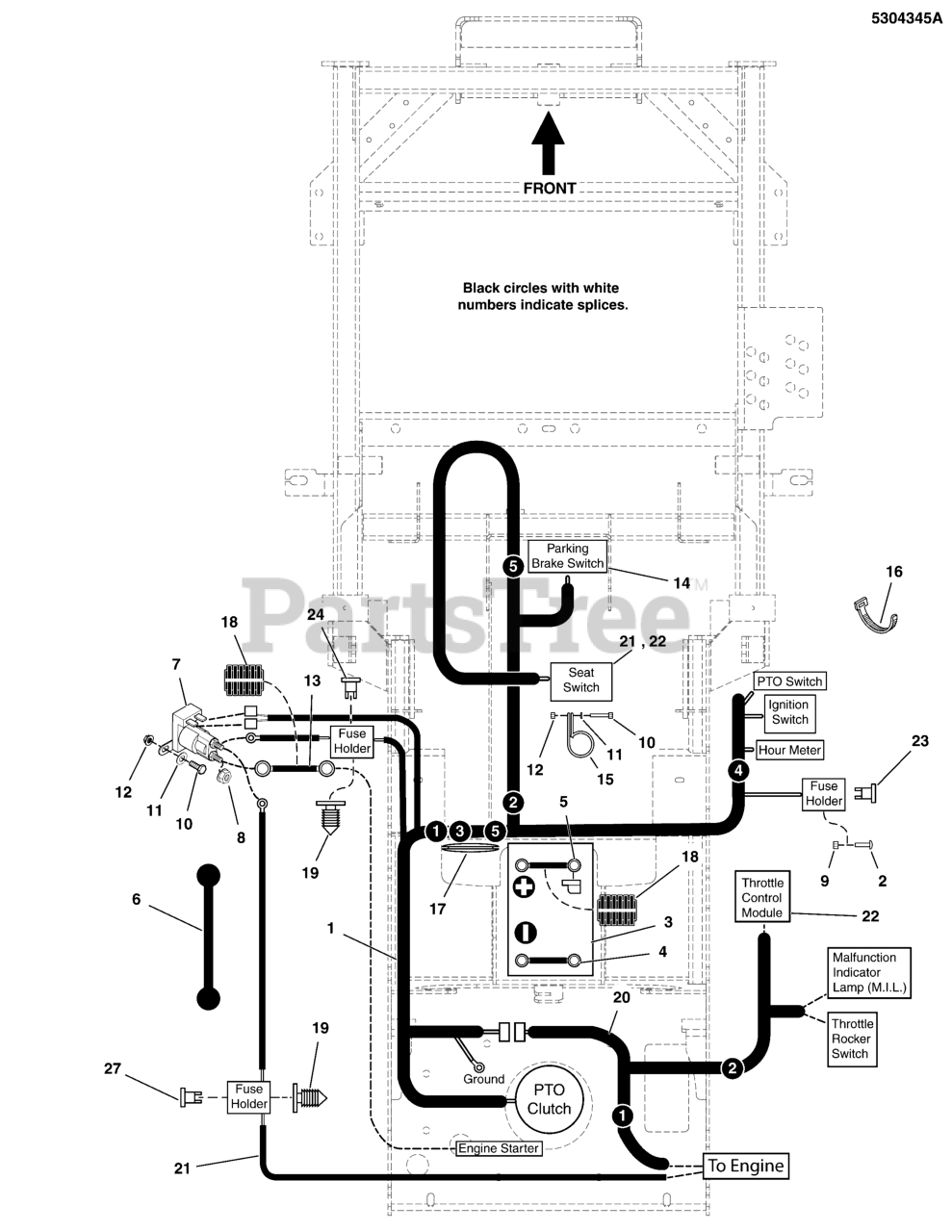

Electrical Group - S/N: 2017612395 - 2017954955 Parts Diagram

  • Title

1

Ferris 5416016

WIRE HARNESS, MAIN, SM, ZTR

$176.99

$

Usually ships in 2-12 days

0

2

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

3

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

4

Ferris 5047690

BATTERY CABLE, NEG, 14, 5/16-13/32
(Superseded to 5047690SM)

$16.99

$

Usually ships in 2-12 days

0

5

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

6

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

7

Ferris 1755382

SOLENOID, STD-BRACKET, 2-SPADE
(Superseded to 1755382FS)

$27.99

$

Usually ships in 2-12 days

0

8

Ferris 80003921

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

9

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

13

Ferris 5023488

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5023488SM)

$27.99

$

Usually ships in 2-12 days

0

14

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

15

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

Note: (Secures wire harness to wire carrier rod).

$

$

Not available

17

Ferris 5102677

GROMMET, 1-1/2" ID FOR 1/4" METAL

Note: (S/N: 2018023894 & Below)

$

$

Currently unavailable

18

Ferris 5050927X18

WIRE LOOM, 3/8 ID X 18 IN

$

$

Currently unavailable

19

Ferris 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

20

Ferris 5416382

WIRE HARNESS, JUMPER FX730V, EFI, IS700

$198.99

$

Usually ships in 2-12 days

0

21

Ferris 5416597

HARNESS, KAWI, FS, EFI CHARGE JUMPER
(Superseded to 5416597FS)

$53.99

$

Usually ships in 2-12 days

0

22

Ferris 5102075

MODULE, THROTTLE CONTROL, KAV DFI

$

$

Not available

23

Ferris 5100540

SWITCH, NC, W/ BOLT-IN BASE
(Superseded to 5100540YP)

Note: (SV)

$32.99

$

In Stock, only 1 left!

0

24

Ferris 5100541

SWITCH, NC, W/ TWIST-IN BASE

Note: (SV)

$29.99

$

Usually ships in 2-12 days

0

25

Ferris 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

Note: (SV)

$4.99

$

In Stock, only 2 left!

0

27

Ferris 5023454

FUSE, ATO-40 (40 AMP)

Note: (SV)

$

$

Currently unavailable
