IS 700Z (5901394) - Ferris IS700Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, CARB, Side-Discharge Electrical Schematic - Cranking Circuit - B&S 49R977 Vanguard S/N: 2017612395 - 2017954955 Parts Diagram

IS700Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, CARB, Side-Discharge

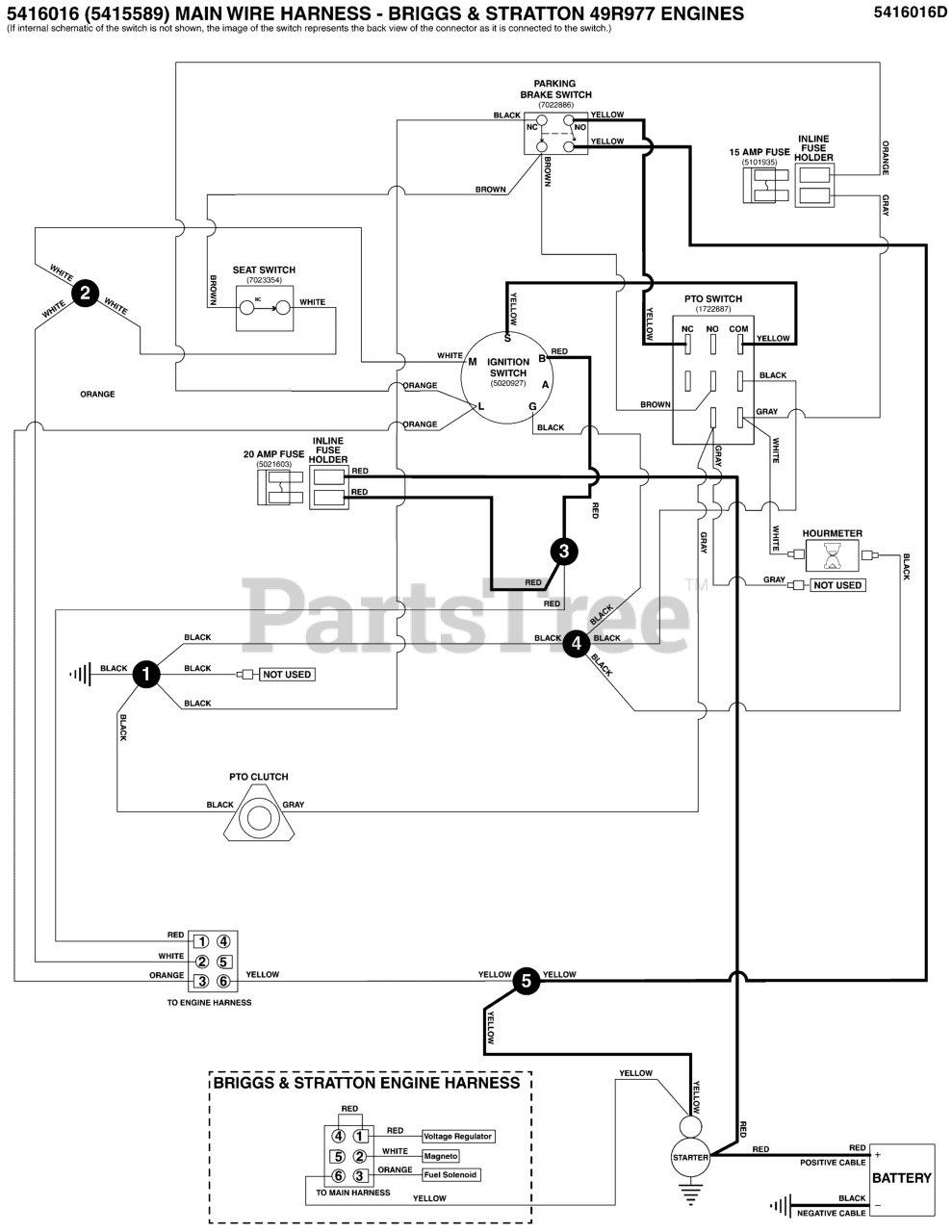

Electrical Schematic - Cranking Circuit - B&S 49R977 Vanguard S/N: 2017612395 - 2017954955 Parts Diagram
