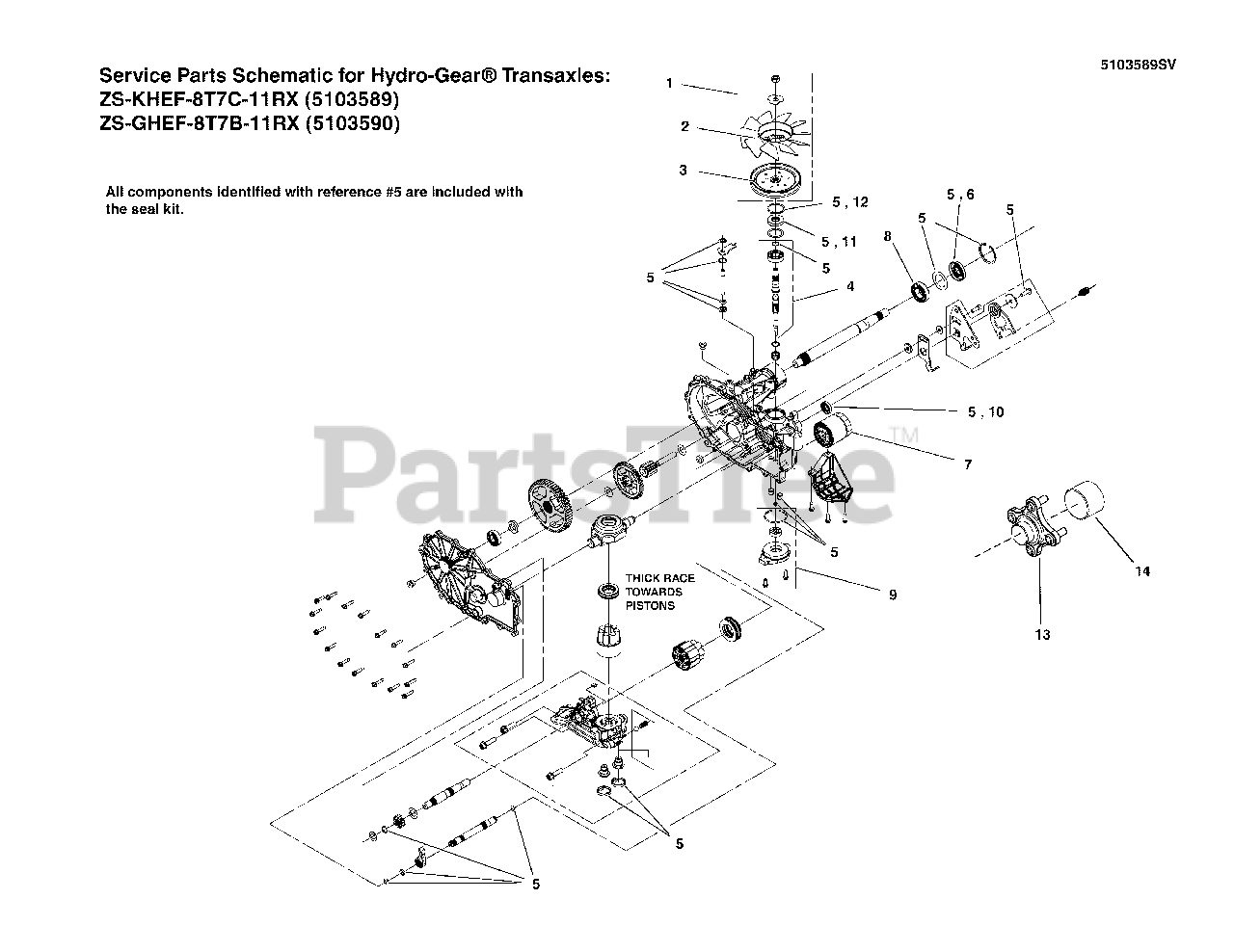

IS 700Z (5901308) - Ferris IS700Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, Side-Discharge Transaxle SERVICE PARTS - ZT3400 (5103589_5103590) Parts Diagram

IS700Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, Side-Discharge

Transaxle SERVICE PARTS - ZT3400 (5103589_5103590) Parts Diagram

  • Title
1

Ferris 5103589X3

KIT, FAN & PULLEY -

Note: HG# 71907

$160.99

$

Usually ships in 2-12 days

0

2

Ferris 5103589X5

FAN, 7.0 -

Note: HG# 52747

$46.99

$

Usually ships in 2-12 days

0

3

Ferris 5103589X6

KIT, PULLEY 5.0 -

Note: HG# 53435

$160.99

$

Usually ships in 2-12 days

0

4

Ferris 5103589X4

KIT, INPUT SHAFT (BEARING AND SHAFT ONLY)

Note: HG# 71978

$296.99

$

Usually ships in 2-12 days

0

5

Ferris 5103589X2

KIT, SEAL - HG# 73239

Note: HG# 71976

$154.99

$

Usually ships in 2-12 days

0

6

Ferris 5103589X1

KIT, SEAL, AXLE - HG# 53699

Note: HG# 53699

$26.99

$

Usually ships in 2-12 days

0

7

Ferris 5101026X1

FILTER, OIL, ZT2800

Note: HG# 52114

$40.99

$

Usually ships in 2-12 days

0

8

Ferris 5101026X5

BEARING BALL, 1.0 X 52 X 15 OPEN 6205M
(Superseded to 5101026X5SM)

Note: HG# 53656

$35.99

$

Usually ships in 2-12 days

0

9

Ferris 5101026X12

KIT, CHARGE PUMP, ZT2800, ZT3100

Note: HG# 71977

$150.99

$

Usually ships in 2-12 days

0

10

Ferris 5101026X2

SEAL, CONTROL ARM, 18X32X7, #51140
(Superseded to 5101026X2SM)

Note: HG# 51140

$16.99

$

Usually ships in 2-12 days

0

11

Ferris 5100161X3

OUTPUT SHAFT SEAL, 17X40X7, HR #51161

Note: HG# 51161

$17.99

$

Usually ships in 2-12 days

0

12

Ferris 5101026X4

RING, RET 2.06 INT,
(Superseded to 5101026X4SM)

Note: HG# 50329

$12.99

$

Usually ships in 2-12 days

0

13

Ferris 5103589X8

ASSM, HUB

Note: HG# 71405

$154.99

$

Usually ships in 2-12 days

0

14

Ferris 5103589X7

AXLE CAP,

Note: HG# 53088

$18.99

$

Usually ships in 2-12 days

0

15

Ferris 5104471X1

SEAL, .375 X .750 X .25 LIP, H/G 51626
(Superseded to 84003137)

Note: HG# 51626

$9.99

$

Usually ships in 2-12 days

0

1000

Ferris 5104580X4

KIT, PLUG, BRAKE BORE, OUTBOARD

$160.99

$

Usually ships in 2-12 days

0
