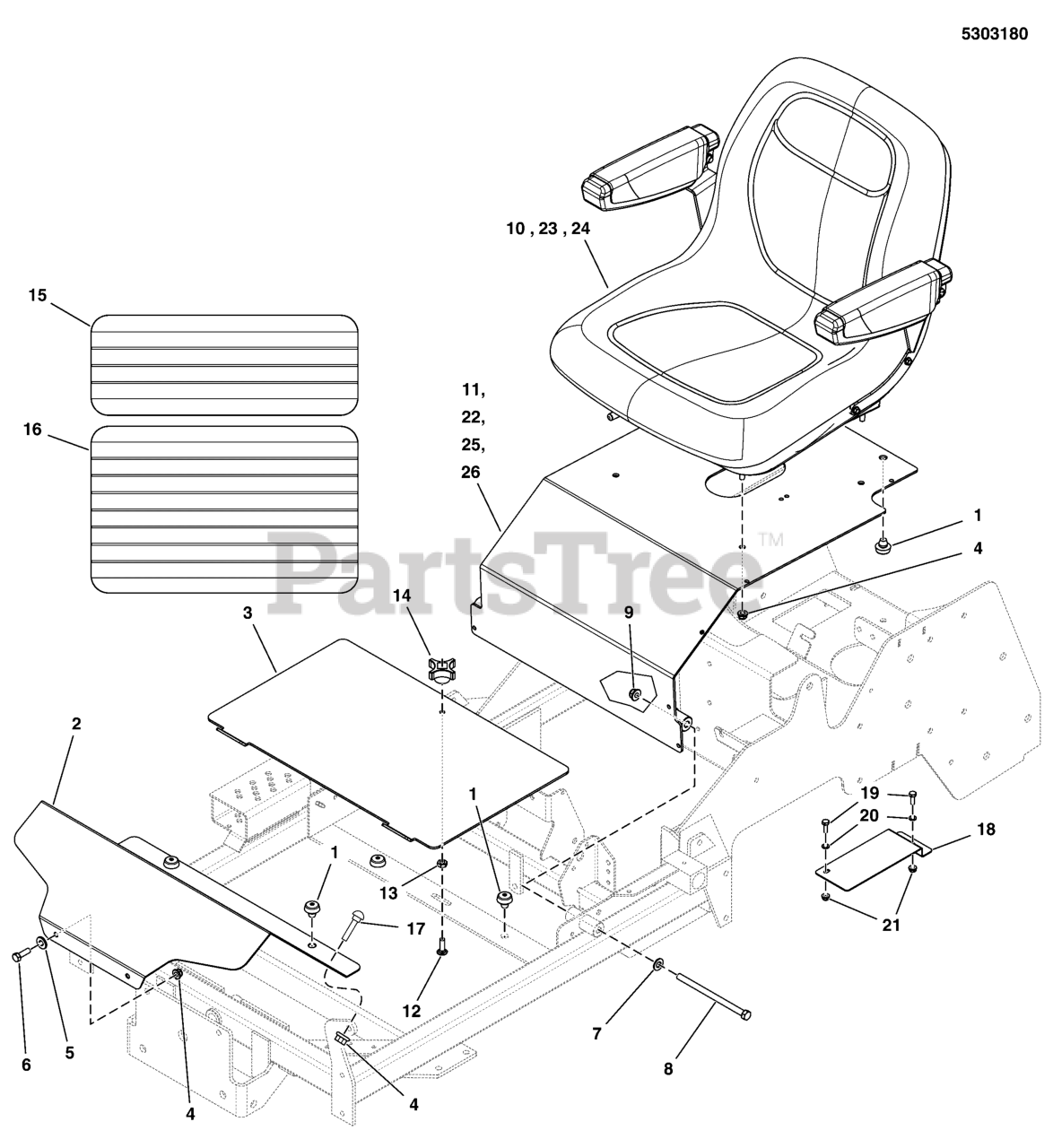

IS 700Z (5901308) - Ferris IS700Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, Side-Discharge Seat Mount & Floor Group - USA & ANSI-EXP Models - S/N: 2017954955 & Below Parts Diagram

IS700Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, Side-Discharge

Seat Mount & Floor Group - USA & ANSI-EXP Models - S/N: 2017954955 & Below Parts Diagram

  • Title

1

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

2

Ferris 5410297B

PLATE, FLOOR, RIDGID, IS700 - RED
(Superseded to 5410297BFS)

$99.99

$

Usually ships in 2-12 days

0

3

Ferris 5410296B

PLATE, FLOOR, REMOVABLE, IS700 - RED
(Superseded to 5410296BFS)

$84.99

$

Usually ships in 2-12 days

0

4

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

7

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025013X44

BOLT, 3/8-16 X 5-1/2" GD5 CZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

10

Ferris 5061599

SEAT, XB-180, NO LOGO, BLACK

Note: (S/N: 2017202281 & Below)

$

$

Not available

11

Ferris 5600650

ASSM, SEAT PLATE W/DECALS - IS700Z (5409985B)

Note: (SV)(USA Models - S/N: 2017612394 & Below)

$343.99

$

Usually ships in 2-12 days

0

12

Ferris 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE YZ
(Superseded to 5025145X10YP)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 80003675

NUT, 5/16-18,GR8, HEX, CNTR LK, ZINC/CL
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

14

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

Usually ships in 2-12 days

0

15

Ferris 5101374

SAFETY WALK, FLOOR REST, 6.00 X 16.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

16

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X16
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

17

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

18

Ferris 5410611A

PLATE, SEAT BELT GUARD, IS700 - BLK

$

$

Currently unavailable

19

Ferris 5025299X8

SCREW, 1/4-20 X 1, ALLEN BH, CZ
(Superseded to 5025299X8YP)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5025391

NUT, 1/4-20, NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

22

Ferris 5600676

ASSM, SEAT PLATE W/DECALS - IS700Z, ANSI-EXP (5409985B)

Note: (SV)(Export Models - S/N: 2017612394 & Below)

$

$

Currently unavailable

23

Ferris 5104741

SEAT, 907 SEAT INC
(Superseded to 5105039)

Note: (S/N: 2017202282 - 2017612394)

$751.99

$

Usually ships in 2-12 days

0

24

Ferris 5105039

SEAT, 907 WITH ARM RESTS W/ SWITCH
(Superseded to 84003662)

Note: (S/N: 2017612395 & Above)

$751.99

$

Usually ships in 2-12 days

0

25

Ferris 5600989

ASSM, SEAT PLATE W/DECAL (5416034B)

Note: (SV)(USA Models - S/N: 2017612395 & Above)

$397.99

$

Usually ships in 2-12 days

0

26

Ferris 5601059

ASSM, SEAT PLATE W/DECALS, EXP (5416034B)

Note: (SV)(Export Models - S/N: 2017612395 & Above)

$

$

Currently unavailable
