IS 700Z (5901308) - Ferris IS700Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, Side-Discharge Deck Lift Group - S/N: 2017954955 & Below Parts Diagram

IS700Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, Side-Discharge

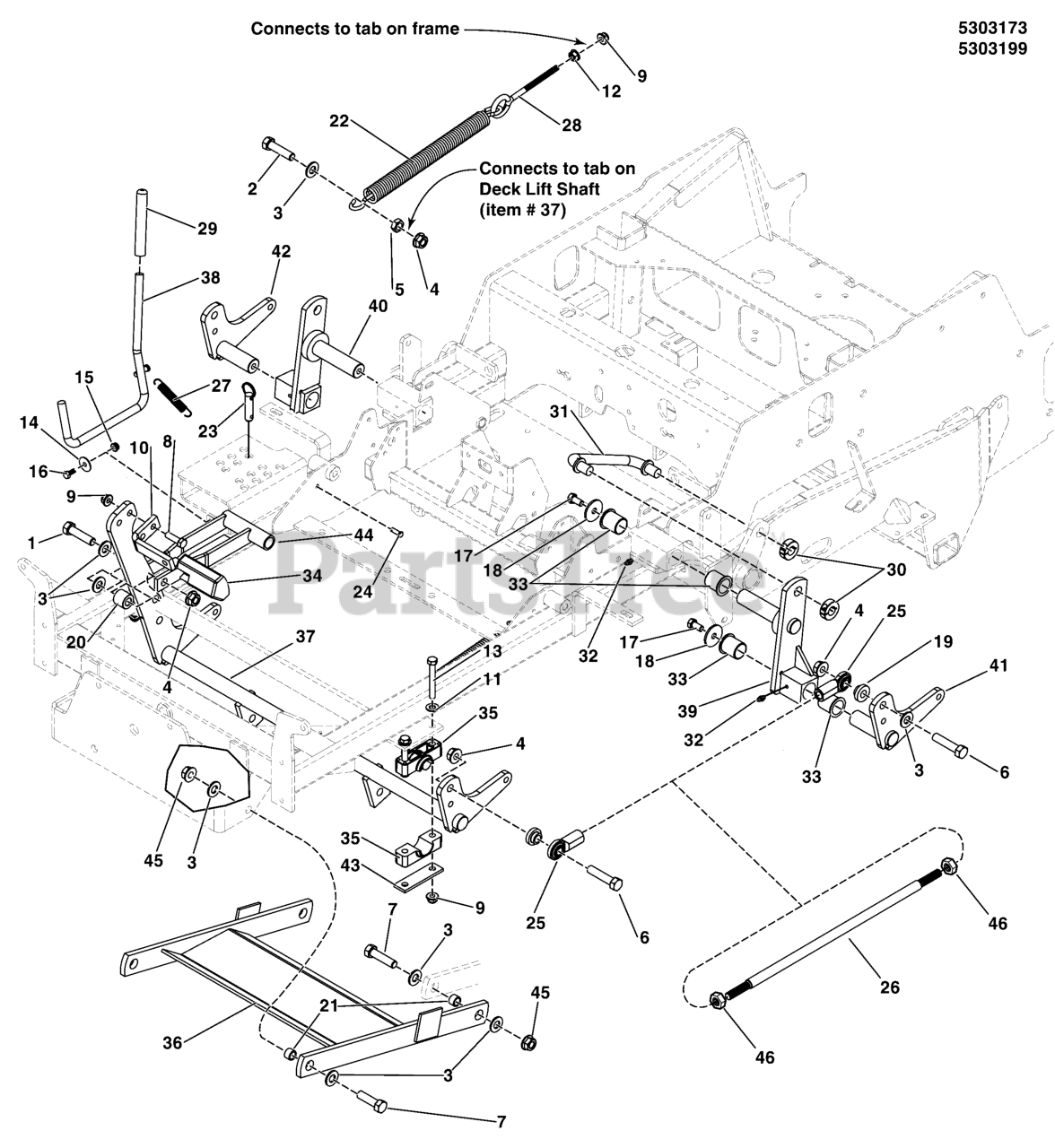

Deck Lift Group - S/N: 2017954955 & Below Parts Diagram

  • Title

1

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

2

Ferris 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

Note: Qty: 1 - 52" Models

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: Qty: 13 - 52" Models

$3.99

$

In Stock, Qty 12

0

4

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: Qty: 6 - 52" Models

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5025301

NUT, 1/2-13 HEX JAM
(Superseded to 5025301SM)

Note: Qty: 1 - 52" Models

$3.49

$

In Stock, only 1 left!

0

6

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

7

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

8

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

9

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: Qty: 7 - 52" Models

$4.49

$

In Stock, Qty 20+

0

10

Ferris 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

11

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

Note: Qty: 1 - 52" Models

$3.49

$

In Stock, only 2 left!

0

13

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

14

Ferris 5025288

WASHER, 1/4 FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

15

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

16

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

17

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5045023

SPACER, .52 X 1.00 X .44. CZ
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

20

Ferris 5044673

SPACER, .52 X 1.00 X .88, CZ
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

21

Ferris 5020870

INSERT, BEARING
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

22

Ferris 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

Note: Qty: 1 - 52" Models

$49.99

$

Usually ships in 2-12 days

0

23

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

24

Ferris 5025212X4

CLEVIS PIN, 1/4 X 1/2, CZ
(Superseded to 5025212X4SM)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 1702779

JOINT-BALL .500-20 THD .500ID, CLR ZINC
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 14

0

26

Ferris 5103758

ROD, DECK LIFT, 19.25
(Superseded to 5103758YP)

$37.99

$

Usually ships in 2-12 days

0

27

Ferris 5010213

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK
(Superseded to 5010213YP)

$14.99

$

Usually ships in 2-12 days

0

28

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3.0 THREAD
(Superseded to 5021812SM)

Note: (S/N: 2016893014 & Below)(Qty: 1 - 52" Models)

$5.99

$

In Stock, Qty 18

0

28

Ferris 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

Note: (S/N: 2016893015 & Above)(Qty: 1 - 52" Models)

$6.49

$

Usually ships in 2-12 days

0

29

Ferris 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

30

Ferris 5020441

COLLAR, 5/8 SPLIT
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

31

Ferris 5103703

ROD, SUSPENSION LINK, IS700
(Superseded to 5103703YP)

$19.99

$

Usually ships in 2-12 days

0

32

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

33

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

34

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

In Stock, only 1 left!

0

35

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

36

Ferris 5410213A

WELD, PULLER BAR, IS700Z - BLK
(Superseded to 5410213AYP)

$148.99

$

Usually ships in 2-12 days

0

37

Ferris 5410219B

WELD, DECK LIFT SHAFT, IS700 - RED

Note: (S/N: 2016893014 & Below)

$216.99

$

Usually ships in 2-12 days

0

37

Ferris 5412701B

WELD, DECK LIFT SHAFT, IS700 - RED

Note: (S/N: 2016893015 & Above)

$199.99

$

Usually ships in 2-12 days

0

38

Ferris 5410317A

WELD, Rod, Deck Lift - BLK
(Superseded to 5410317AAFS)

$32.99

$

Usually ships in 2-12 days

0

39

Ferris 5401664A

WELD, REAR LIFT - LH - BLK
(Superseded to 5105172)

$84.99

$

Usually ships in 2-12 days

0

40

Ferris 5401665A

WELD, REAR LIFT - RH - BLK
(Superseded to 5105173)

$77.99

$

Usually ships in 2-12 days

0

41

Ferris 5401671A

WELD, DECK LIFT LEVER, LH - BLK
(Superseded to 5401671AYP)

$61.99

$

Usually ships in 2-12 days

0

42

Ferris 5401672A

WELD, DECK LIFT LEVER, RH - BLK
(Superseded to 5401672AYP)

$67.99

$

Usually ships in 2-12 days

0

43

Ferris 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

44

Ferris 5410315A

USE 5104133 - WELD,DECK HEIGHT LNK,IS700
(Superseded to 5104133YP)

$35.99

$

Usually ships in 2-12 days

0

45

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

46

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 19

0
