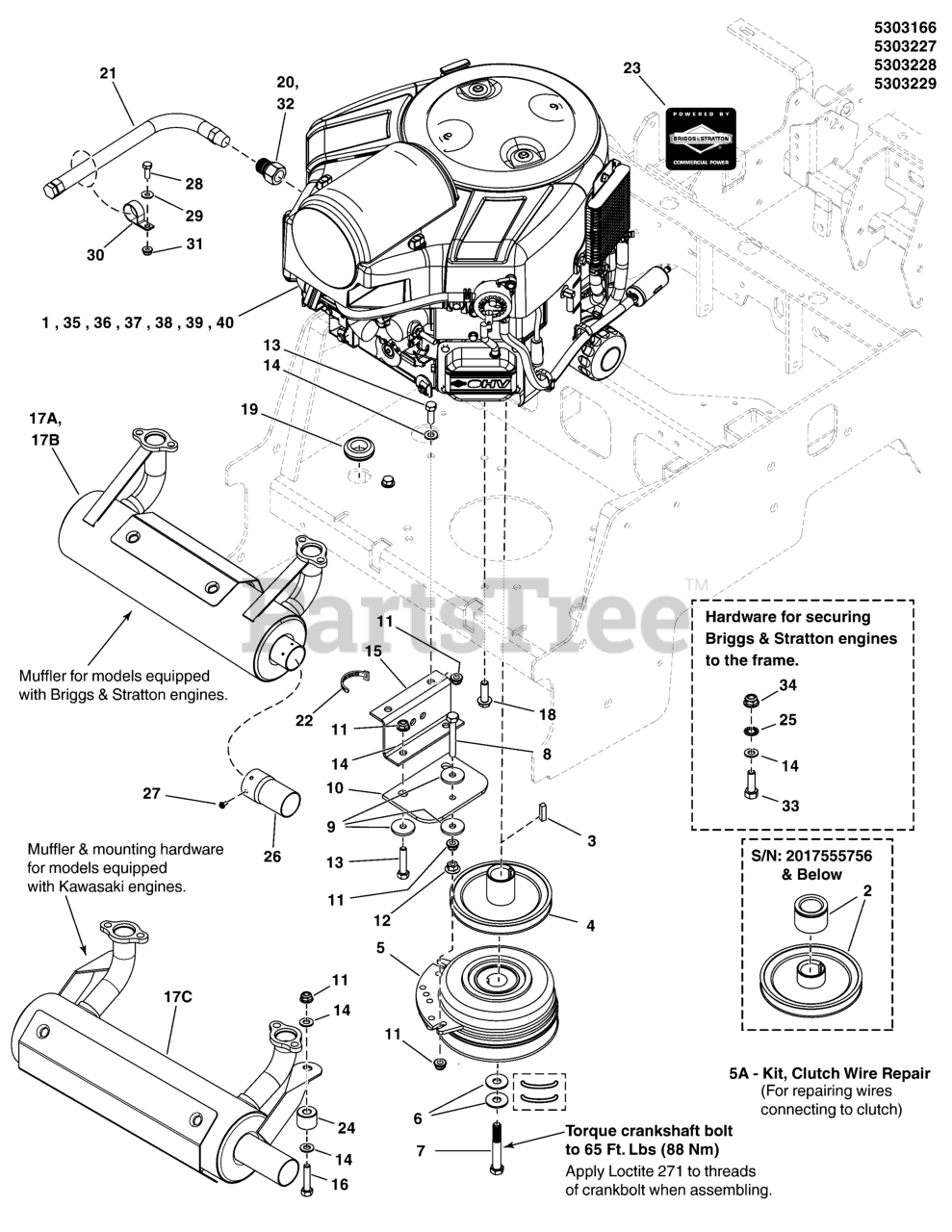

IS 700Z (5901265) - Ferris IS700Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge Engine & PTO Group Parts Diagram

IS700Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge

Engine & PTO Group Parts Diagram

  • Title

1

ENGINE, B&S, COMM TURF, 49L977

Note: (Models with Briggs & Stratton Commercial Turf 49L977 Engines)

$

$

Not available

2

REPLACE WITH REF # 4

Note: (S/N: 2017555756 & Below)

$

$

Not available

3

Ferris 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

4

Ferris 5105108

PULLEY, CRANKSHAFT 1.1255"ID X 5.318" OB
(Superseded to 5105108YP)

Note: (S/N: 2017555756 & Above)

$64.99

$

Usually ships in 2-12 days

0

5

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

5A

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

Note: (SV)

$66.99

$

Usually ships in 2-12 days

0

6

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

7

Ferris 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

$5.49

$

In Stock, only 1 left!

0

8

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

10

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (Qty: 7 - Models w/ Kawasaki Engines S/N: 2016915554 & Below)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

13

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

14

Ferris 5025155

WASHER, 5/16" SAE

Note: (Models w/ Kawasaki Engines S/N: 2016915554 & Below)

$

$

Currently unavailable

15

Ferris 5410367A

ANCHOR, CLUTCH, IS600-IS700 - BLK
(Superseded to 5410367AYP)

$17.99

$

In Stock, only 1 left!

0

16

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

Note: (Qty: 2 - Models w/ Kawasaki Engines S/N: 2016915554 & Below)

$3.99

$

In Stock, Qty 20+

0

17A

Ferris 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (B&S Commercial Turf & Model 49R977 Vanguard Engines)

$222.99

$

Usually ships in 2-12 days

0

17B

Ferris 843906

MUFFLER (Purchase from Engine Manufacturer)

Note: (B&S Model 541777 Vanguard Engines)

$

$

Not available

17C

Ferris 5104326

MUFFLER, KAWI, HORIZONTAL, 5" CAN
(Superseded to 5104326YP)

Note: (Kawasaki Engines)

$207.99

$

In Stock, only 1 left!

0

18

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

Note: (Models equipped with Kawasaki Engines Only)

$3.49

$

In Stock, only 4 left!

0

19

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

20

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

Note: (Models equipped with Kawasaki Engines Only)

$15.99

$

Usually ships in 2-12 days

0

21

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

22

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

23

NO LONGER AVAILABLE - LABEL, BRIGGS & STRATTON LOGO

$

$

Not available

24

Ferris 5046446

SPACER, .39 X 1.00 X .80, CZ
(Superseded to 5046446SM)

Note: (Models Kawasaki Engines S/N: 2016915554 & Below)

$7.49

$

In Stock, only 1 left!

0

25

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

26

Ferris 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

Note: (B&S Commercial Turf & Model 49R977 Vanguard Engines)

$14.99

$

Usually ships in 2-12 days

0

27

Ferris 5025470

SCREW, SELF-TAP, #8-32 X 3/8. WASH HEX, CZ
(Superseded to 5025470YP)

Note: (B&S Commercial Turf & Model 49R977 Vanguard Engines)

$3.49

$

In Stock, only 2 left!

0

28

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

29

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

30

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

31

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

32

Ferris 5100366

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF
(Superseded to 5100366SM)

Note: (B&S Vanguard Engines)

$13.99

$

Usually ships in 2-12 days

0

33

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

Note: (B&S Engines)

$4.49

$

Usually ships in 2-12 days

0

34

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

Note: (B&S Engines)

$3.99

$

In Stock, only 2 left!

0

35

ENGINE, B&S VANGUARD, 541777

Note: (Models with Briggs & Stratton Vanguard 541777 Engines)

$

$

Not available

36

ENGINE, KAWASAKI, FS691

Note: (Models with Kawasaki FS691)

$

$

Not available

37

ENGINE, KAWASAKI, FS730V

Note: (Models with Kawasaki FS730V Carbureted)

$

$

Not available

38

ENGINE, B&S, COMM TURF, 1-1/8 X 4.29, 49T877

Note: (Models with Briggs & Stratton Commercial Turf 49T877 Engines)

$

$

Not available

39

ENGINE, B&S VANGUARD, 49R977

Note: (Models with Briggs & Stratton Vanguard 49R977 Engines)

$

$

Not available

40

ENGINE, KAWASAKI, FS730V, EFI

Note: (Models with Kawasaki Fuel Injected Engines in serial number range 2018025424 & Below)

$

$

Not available

40

ENGINE, KAWASAKI, FT730V, EFI

Note: (Models with Kawasaki Fuel Injected Engines in serial number range 2018025425 & Above)

$

$

Not available
