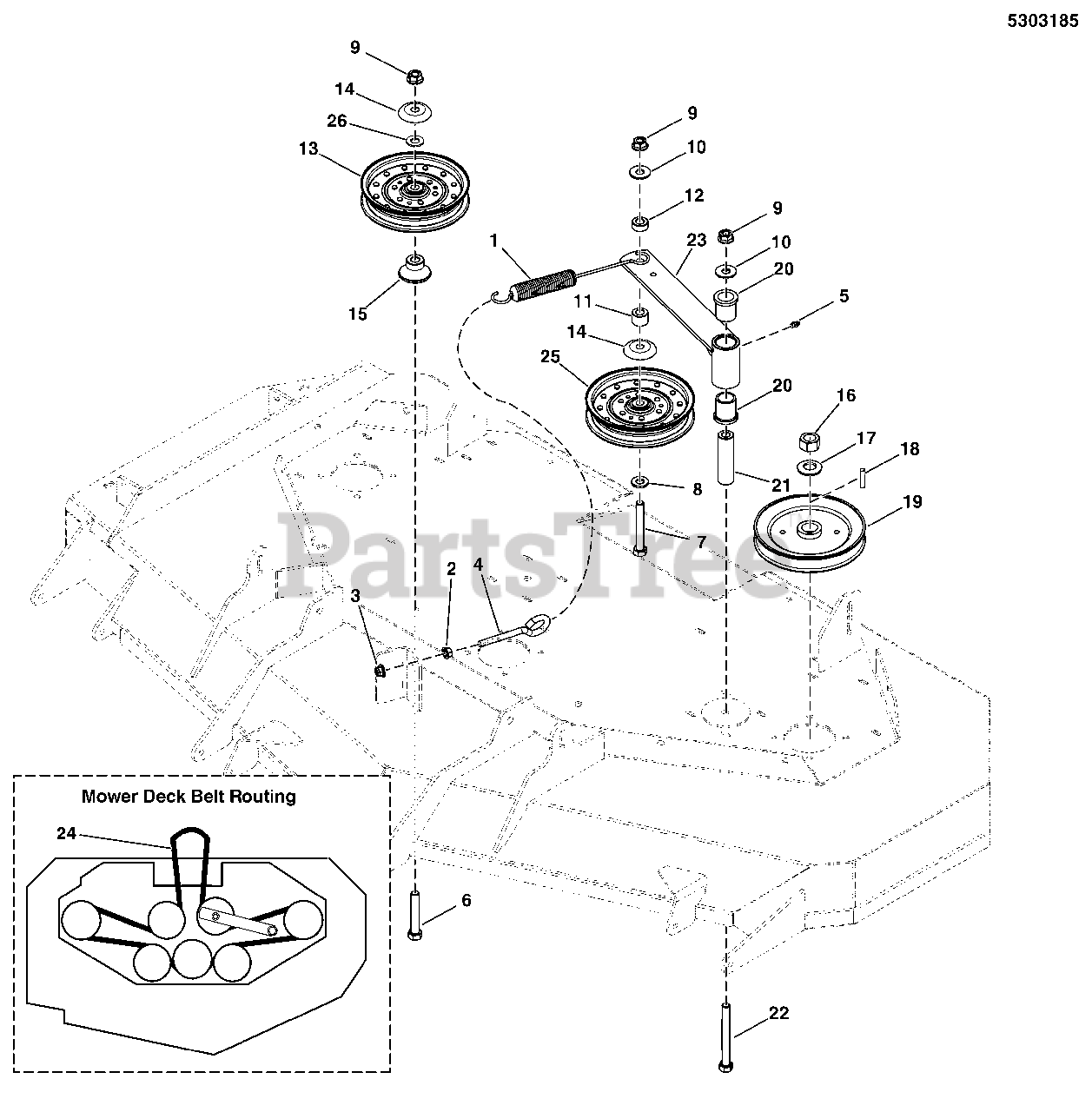

IS 700Z (5901226) - Ferris IS700Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton, Side-Discharge 61" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2016893014 & Below Parts Diagram

IS700Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton, Side-Discharge

61" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2016893014 & Below Parts Diagram

  • Title

1

Ferris 5100632

SPRING, EXTENSION, SWIVEL. LONG HOOK
(Superseded to 5100632YP)

Note: (coil-to-coil measurement: 6-5/8" at middle cut height position)

$38.99

$

Usually ships in 2-12 days

0

2

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

3

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Ferris 5021811

EYE BOLT, 3/8-16 X 8, 1 EYE
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

5

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

6

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

7

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

8

Ferris 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

10

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

11

Ferris 5101162

SPACER, .52 X 1.00 X .56, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, Qty 8

0

12

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

In Stock, only 2 left!

0

13

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

14

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

15

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

16

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

19

Ferris 5100700

PULLEY, 6.93 EOD X 25MM, SPLIT
(Superseded to 5100700SM)

$74.99

$

Usually ships in 2-12 days

0

20

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

21

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 3 left!

0

22

Ferris 5025017X40

BOLT-1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

23

Ferris 5410569A

WELD, IDLER ARM - 52" - BLK
(Superseded to 5410569AYP)

$66.99

$

Usually ships in 2-12 days

0

24

Ferris 5103871

BELT, 5V, 175.90EL, LG ARAMID, WRPD, RC
(Superseded to 5103671)

$148.99

$

Usually ships in 2-12 days

0

25

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

26

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0
