IS 6200Z (5901851) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Seat Mount and Floor Group Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

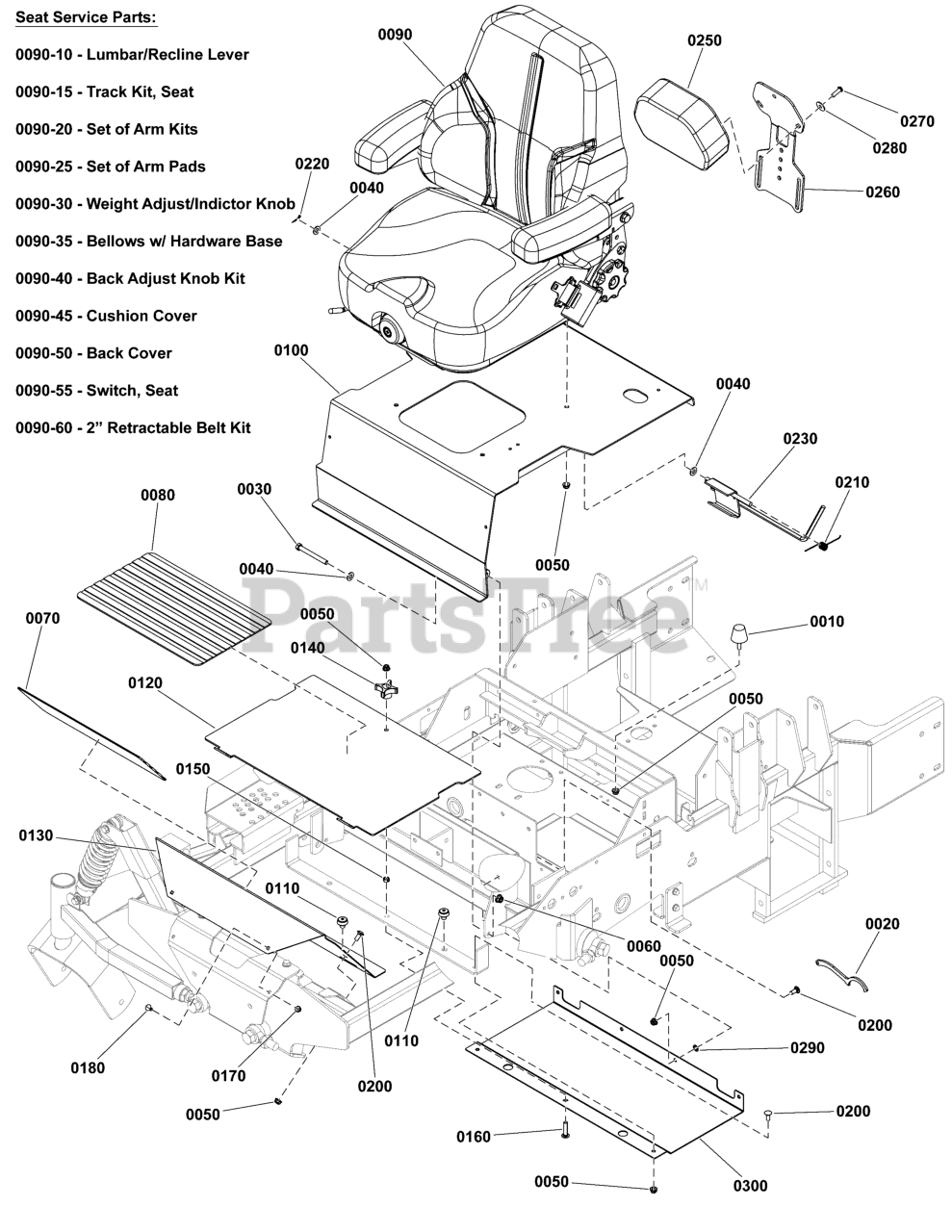

Seat Mount and Floor Group Parts Diagram

  • Title

0010

Ferris 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

0020

Ferris 5022853

WRENCH, SPANNER, CZ
(Superseded to 5022853SM)

$15.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

0040

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0050

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0070

Ferris 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

0080

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

0090

Ferris 5108194

SEAT, HIGH BACK,SUSP,SWITCH & SEAT BELTS
(Superseded to 84006088)

$1432.99

$

Usually ships in 2-12 days

0

0090-10

Ferris 5105099X2

LUMBAR/RECLINE/ISO LVR W/ RLL PIN BS

Note: (SV)

$40.99

$

Usually ships in 2-12 days

0

0090-15

Ferris 5104720X1

4" SINGLE LOCKING TRACKS BASE

Note: (SV)

$148.99

$

Usually ships in 2-12 days

0

0090-20

Ferris 5106325X2

SET OF ARM KITS

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

0090-25

Ferris 5106325X3

SET OF ARM PADS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

0090-30

Ferris 5104720X2

WEIGHT ADJUST INDICATOR KNOB ASSY BASE

Note: (SV)

$85.99

$

Usually ships in 2-12 days

0

0090-35

Ferris 5104720X3

BELLOWS W/ HARDWARE BASE

Note: (SV)

$100.99

$

Usually ships in 2-12 days

0

0090-40

Ferris 5106325X4

BACK ADJUSTMENT KNOB KIT

Note: (SV)

$40.99

$

Usually ships in 2-12 days

0

0090-45

Ferris 5106325X6

CUSHION COVER FORM I3M, 314659VN584

Note: (SV)

$272.99

$

Usually ships in 2-12 days

0

0090-50

Ferris 5108194X2

SEAT BACK COVER

Note: (SV)

$320.99

$

Usually ships in 2-12 days

0

0090-55

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0090-60

Ferris 5106325X5

2" RETRACTABLE BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

0100

Ferris 5601300

SEAT PLATE W/DECALS, IS6200, ST LTCH DOM

$495.99

$

Usually ships in 2-12 days

0

0110

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

0120

Ferris 5421794B

PLATE, FLOOR, REMOVABLE, IS6200Z - RED
(Superseded to 5421794BFS)

$104.99

$

Usually ships in 2-12 days

0

0130

Ferris 5420648B

PLATE, FLOOR RIDGID, IS6200Z - RED
(Superseded to 5420648BFS)

$41.99

$

Usually ships in 2-12 days

0

0140

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

Usually ships in 2-12 days

0

0150

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

0160

Ferris 80003669

BOLT,5/16-18X1.500,CARRIAGE,SQ,GR5,ZC/CL
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

0170

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0180

Ferris 1960252

BOLT-RD HD SH SQ NK 1/4-20X0. 625 G5 BLK
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0200

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0210

Ferris 5106644

SPRING, TORSION, LH, .0625OD
(Superseded to 84003202)

$2.49

$

Usually ships in 2-12 days

0

0220

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0230

Ferris 5418223AA

WELD, SEAT LATCH HOOK - BLK
(Superseded to 84002142)

$35.99

$

Usually ships in 2-12 days

0

0250

Ferris 5106645

HEAD REST HIGH BACK SEAT
(Superseded to 5106645FS)

$101.99

$

Usually ships in 2-12 days

0

0260

Ferris 5418483AA

PLATE, MOUNTING BRACKET, HEADREST - BLK
(Superseded to 5418483AAFS)

$65.99

$

Usually ships in 2-12 days

0

0270

Ferris 5025652

SCREW, 5/16-18X1, BUT HD, BLK, W/PATCH
(Superseded to 84003203)

$2.99

$

Usually ships in 2-12 days

0

0280

Ferris 5107404

WASHER, FENDER, 1.00 OD X .315 ID X .055
(Superseded to 84001871)

$2.49

$

Usually ships in 2-12 days

0

0290

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

0300

Ferris 5421765B

PLATE, DEBRIS GUARD, 6200 - RED

$

$

Currently unavailable
