IS 6200Z (5901851) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Parking Brake Group Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

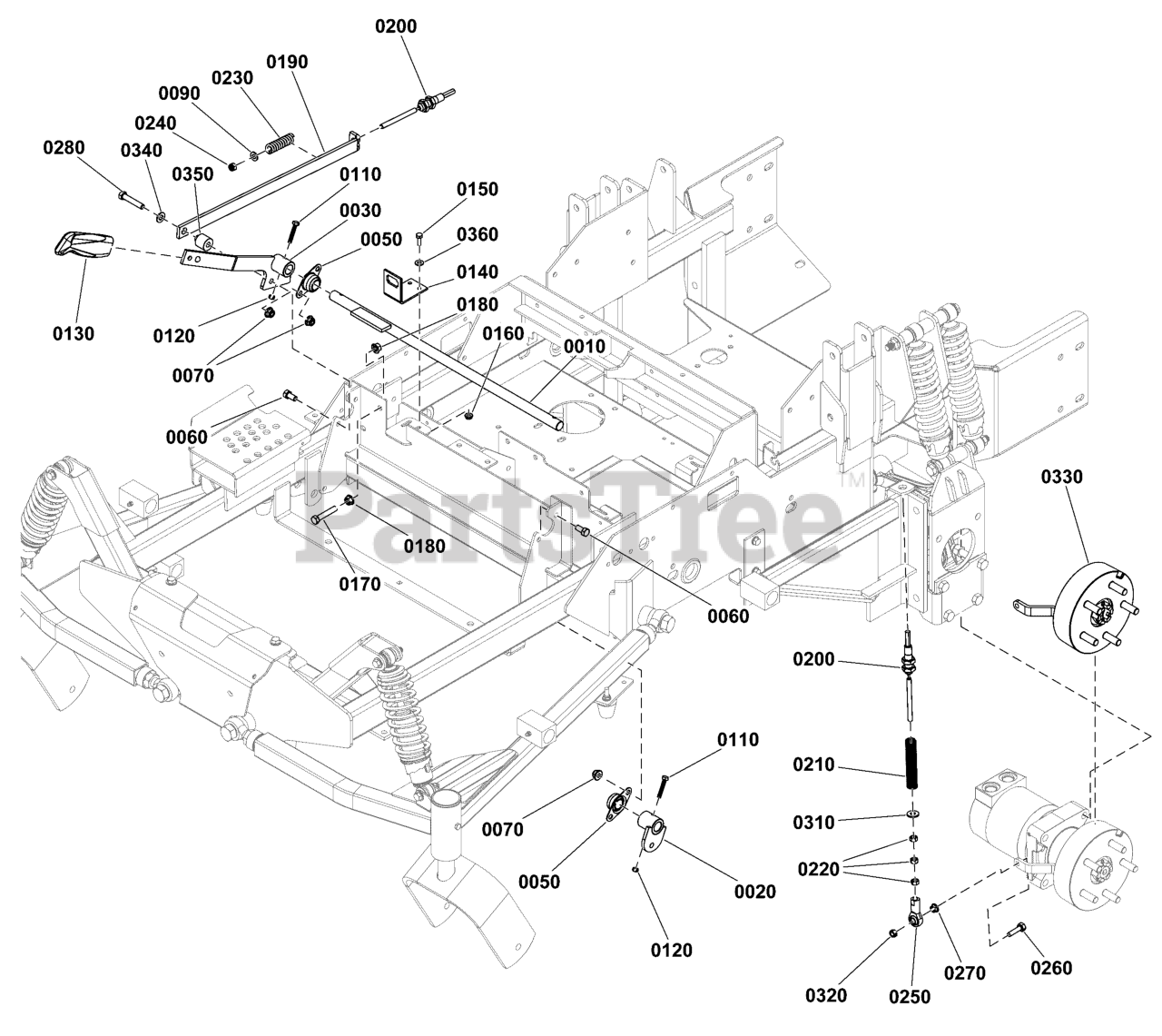

Parking Brake Group Parts Diagram

  • Title

0010

Ferris 5400739AA

WELD, SHAFT BRAKE LEVER - BLK
(Superseded to 5400739AAFS)

$31.99

$

Usually ships in 2-12 days

0

0020

Ferris 5045618AA

PIVOT, LINKAGE MOUNT WELDMENT - BLK

$

$

Currently unavailable

0030

Ferris 5420867AA

WELD, PIVOT HANDLE MOUNT - BLK
(Superseded to 5420867AAFS)

$37.99

$

Usually ships in 2-12 days

0

0050

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

0060

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

0070

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0090

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0110

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2 GD5 CZ
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025287

NUT, Hex, Side Locking, 1/4-20
(Superseded to 5025287SM)

$2.99

$

Usually ships in 2-12 days

0

0130

Ferris 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 2 left!

0

0140

Ferris 5400726B

BRACKET, SWITCH MOUNT - RED
(Superseded to 5400726BFS)

$5.99

$

Usually ships in 2-12 days

0

0150

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0160

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0170

Ferris 5025058X16

BOLT, 3/8-16 X 2" GD5 TFL CZ
(Superseded to 5025058X16SM)

$2.99

$

Usually ships in 2-12 days

0

0180

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

0190

Ferris 5420869AA

BRAKE, CABLE LINK - BLK
(Superseded to 5420869AAFS)

$13.99

$

Usually ships in 2-12 days

0

0200

Ferris 5023324

CABLE, PARKING BRAKE
(Superseded to 5023324SM)

$81.99

$

Usually ships in 2-12 days

0

0210

Ferris 5023320

SPRING-COMP, .615ID X 4.00LG X .080WR
(Superseded to 5023320SM)

$8.49

$

In Stock, only 1 left!

0

0220

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 5022361

SPRING-COMP, .428IDX2.50LGX.154WR, BZ
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

0240

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0250

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

0260

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

0270

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

0280

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0310

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

0320

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

0330

Ferris 5109130

BRAKE KIT, PARKER WHEEL MOTOR, 490151X4F
(Superseded to 5109130FS)

$211.99

$

Usually ships in 2-12 days

0

0340

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0350

Ferris 5109480

SPACER, .390 X 1.00 X 1.16, SHLDR, CZ
(Superseded to 5109480FS)

$6.99

$

Usually ships in 2-12 days

0

0360

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0
