IS 6200Z (5901851) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Deck Lift Group - Shaft, Rod, and Lift Linkage Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

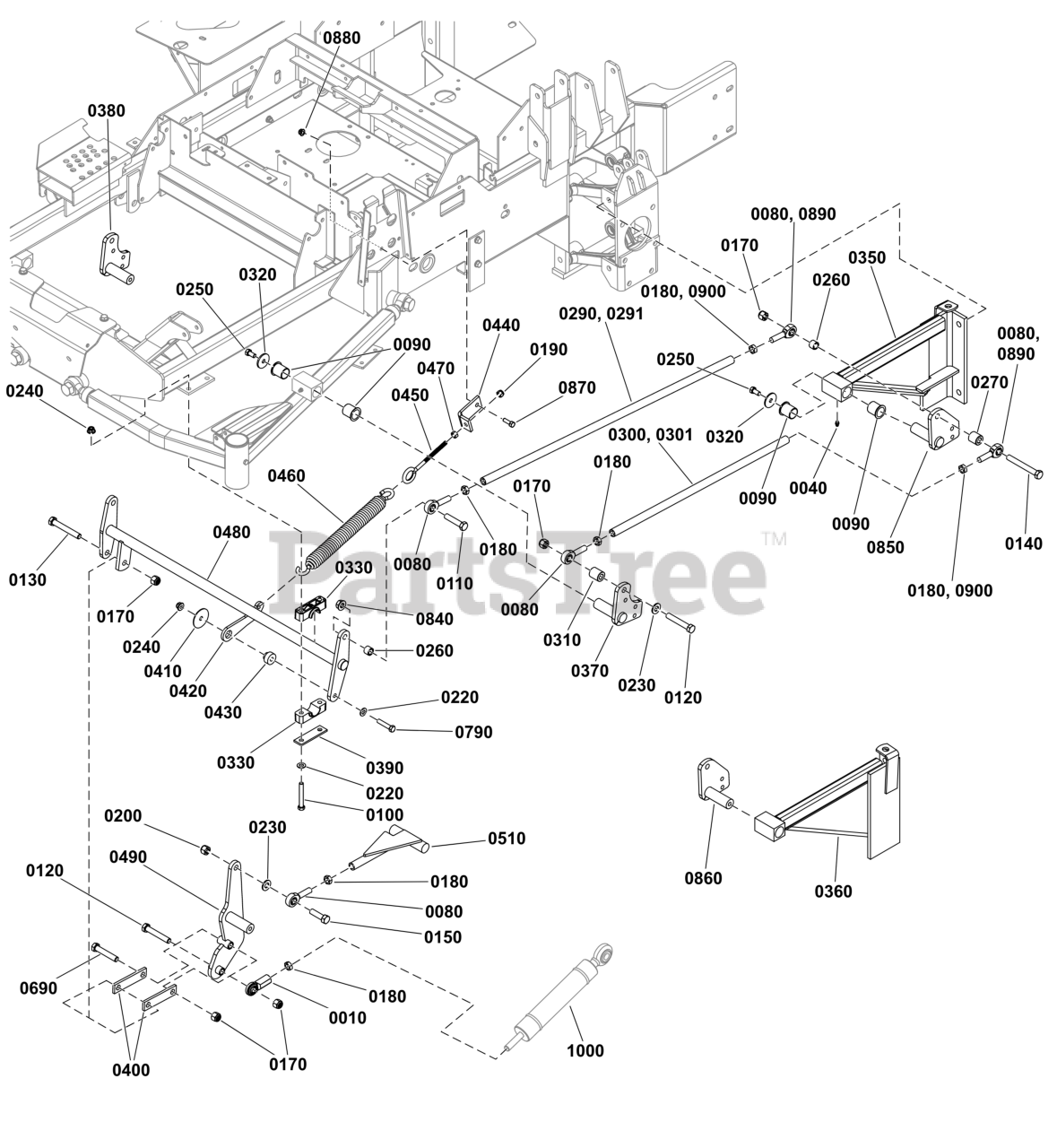

Deck Lift Group - Shaft, Rod, and Lift Linkage Parts Diagram

  • Title

0010

Ferris 1702779

JOINT-BALL .500-20 THD .500ID, CLR ZINC
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 14

0

0040

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

0080

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

Note: (Qty: 9 - S/N: 4001978818 & Below)

$42.99

$

In Stock, only 2 left!

0

0090

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, Plastic
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

0110

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

0130

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0

0140

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 4 left!

0

0150

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

0170

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

0180

Ferris 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

Note: (Qty: 10 - S/N: 4001978818 & Below)

$3.99

$

In Stock, Qty 19

0

0190

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

0200

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

0220

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

0240

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0250

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

0260

Ferris 5108165

SPACER, TAPPERED .50 ID, ISX800 ARM CZ
(Superseded to 84004659)

$3.99

$

Usually ships in 2-12 days

0

0270

Ferris 5049777

SPACER, .52 x 1.00 x 1.00
(Superseded to 5049777YP)

$11.99

$

Usually ships in 2-12 days

0

0290

Ferris 5061349

DECK LIFT ROD - INNER

Note: (S/N: 4001978818 & Below)

$93.99

$

Usually ships in 2-12 days

0

0291

Ferris 5109857

ROD, DECK LIFT INNER

Note: (S/N: 4001978819 & Above)

$

$

Currently unavailable

0300

Ferris 5061350

DECK LIFT ROD - OUTER

Note: (S/N: 4001978818 & Below)

$75.99

$

Usually ships in 2-12 days

0

0301

Ferris 5109858

ROD, DECK LIFT OUTER

Note: (S/N: 4001978819 & Above)

$

$

Currently unavailable

0310

Ferris 5061781

SPACER, .52 X 1.00 X 1.15
(Superseded to 5061781FS)

$12.99

$

Usually ships in 2-12 days

0

0320

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

0330

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

0350

Ferris 5419991B

WELD, REAR DECK LIFT, LH - RED
(Superseded to 5419991BFS)

$127.99

$

Usually ships in 2-12 days

0

0360

Ferris 5419990B

WELD, REAR DECK LIFT, RH - RED
(Superseded to 5419990BFS)

$127.99

$

Usually ships in 2-12 days

0

0370

Ferris 5413901B

WELD, DECK LIFT, LEVER, LH - RED
(Superseded to 5413901BFS)

$47.99

$

Usually ships in 2-12 days

0

0380

Ferris 5413902B

WELD, DECK LIFT, LEVER, RH - RED
(Superseded to 5413902BFS)

$50.99

$

Usually ships in 2-12 days

0

0390

Ferris 5403925AA

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

0400

Ferris 5409075B

LINK, DECK LIFT, IS5100Z
(Superseded to 5409075BFS)

$8.99

$

Usually ships in 2-12 days

0

0410

Ferris 5025326

WASHER, .39 X 2.00 X X .14
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

0420

Ferris 5061224B

LINK, SPRING
(Superseded to 5061224BFS)

$17.99

$

Usually ships in 2-12 days

0

0430

Ferris 5061227

BUSHING, DECK PIVOT
(Superseded to 5061227SM)

$13.99

$

Usually ships in 2-12 days

0

0440

Ferris 5421755AA

ANCHOR, EYEBOLT, 6200
(Superseded to 5421755AAFS)

$9.49

$

Usually ships in 2-12 days

0

0450

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

0460

Ferris 5023392

SPRING-EXT, 1.393 ODX13.25LGX.218WR, BLK
(Superseded to 5023392YP)

$74.99

$

Usually ships in 2-12 days

0

0470

Ferris 5025034

NUT, 3/8-16 HEX, YZ
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

0480

Ferris 5410412B

WELD DECK LIFT SHAFT IS5100 - RED
(Superseded to 5410412BFS)

$151.99

$

Usually ships in 2-12 days

0

0490

Ferris 5410414B

WELD LIFT ASSIST IS5100Z - RED
(Superseded to 5410414BFS)

$116.99

$

Usually ships in 2-12 days

0

0510

Ferris 5421584B

WELD, DECK HEIGHT LINK, 6200 - BLACK
(Superseded to 5421584BFS)

$101.99

$

Usually ships in 2-12 days

0

0690

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

0790

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

0840

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0850

Ferris 5421454B

WELD DECK LIFT LEVER, LH - RED
(Superseded to 5421454BFS)

$49.99

$

Usually ships in 2-12 days

0

0860

Ferris 5421455B

WELD DECK LIFT LEVER, RH - RED
(Superseded to 5421455BFS)

$49.99

$

Usually ships in 2-12 days

0

0870

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0880

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0890

Ferris 5109942

BALL JOINT, 1/2-20 LH, MALE

Note: (S/N: 4001978819 & Above)

$

$

Currently unavailable

0900

Ferris 5025696

NUT, 1/2-20 LH HEX JAM

Note: (S/N: 4001978819 & Above)

$

$

Currently unavailable

1000

Refer to: Hydraulic Group

$

$

Not available
