IS 6200Z (5901850) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Motion Control Group Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

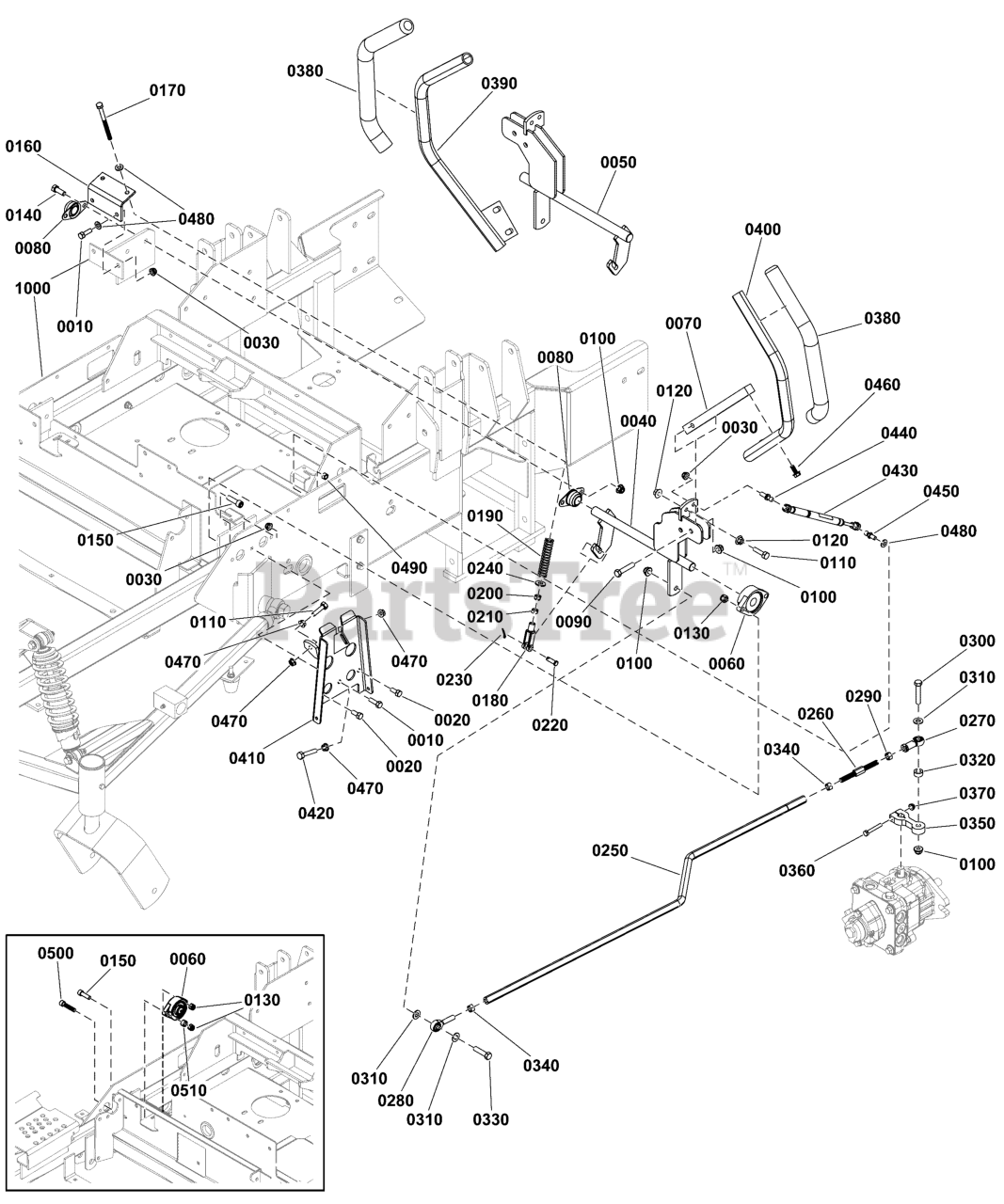

Motion Control Group Parts Diagram

  • Title

0010

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0020

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

0030

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0040

Ferris 5421506AA

WELD, CONTROL SHAFT, LH, 6200 - BLK
(Superseded to 5421506AAFS)

$68.99

$

Usually ships in 2-12 days

0

0050

Ferris 5421507AA

WELD, CONTROL SHAFT, RH, 6200 - BLK
(Superseded to 5421507AAFS)

$68.99

$

Usually ships in 2-12 days

0

0060

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

0070

Ferris 5103106AA

MOUNT, CONTROL ARM - BLK
(Superseded to 5103106AYP)

$54.99

$

Usually ships in 2-12 days

0

0080

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

0090

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

0100

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0110

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

0120

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

0130

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

0140

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0150

Ferris 5025327

BOLT, Allen Head, 3/8-16 x 1-1/4
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

0160

Ferris 5421511B

PLATE, RETURN TO NEUTRAL, 6200 - RED

$

$

Currently unavailable

0170

Ferris 5047137

BOLT, 5/16-24 X 4.25" GD5 YZ

$

$

Currently unavailable

0180

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

0190

Ferris 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

0200

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0210

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025213X8

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

0230

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0240

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

0250

Ferris 5421633AA

CONTROL ROD, IS6200 - BLK
(Superseded to 5421633AAFS)

$84.99

$

Usually ships in 2-12 days

0

0260

Ferris 5046534

LINK, Neutral Adjust-Short
(Superseded to 5046534FS)

$45.99

$

Usually ships in 2-12 days

0

0270

Ferris 5022392

BALL JOINT, 3/8-24 LH, Female
(Superseded to 5022392FS)

$24.99

$

Usually ships in 2-12 days

0

0280

Ferris 5021124

BALL JOINT, 3/8-24 Male
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

0290

Ferris 5025317

NUT, 3/8-24 Hex, LH
(Superseded to 5025317FS)

$3.49

$

Usually ships in 2-12 days

0

0300

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0310

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0320

Ferris 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 3 left!

0

0330

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

0340

Ferris 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

0350

Ferris 5045863

ARM, PUMP CONTROL (21 SERIES)
(Superseded to 5045863FS)

$69.99

$

Usually ships in 2-12 days

0

0360

Ferris 5025010X14

BOLT, 1/4 X 20 X 1-3/4 GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

0370

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0380

Ferris 5104722

GRIP, FOAM, 1" ID, 16" LONG
(Superseded to 5104722FS)

$10.99

$

Usually ships in 2-12 days

0

0390

Ferris 5415052AA

WELD,HANDLE MOTION CNTRL-15.3,1.0,RH,BLK
(Superseded to 5415052AAFS)

$37.99

$

Usually ships in 2-12 days

0

0400

Ferris 5415051AA

WELD,HANDLE MOTION CNTRL-15.3,1.0,LH,BLK
(Superseded to 5415051AAFS)

$37.99

$

Usually ships in 2-12 days

0

0410

Ferris 5421134AA

WELD, PLATE, NEUTRAL CONTROL, 6200 - BLK
(Superseded to 5421134AAFS)

$45.99

$

Usually ships in 2-12 days

0

0420

Ferris 5025055X14

BOLT, 5/16-18 X 1-3/4 TFL, GD5 YZ
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

0430

Ferris 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

0440

Ferris 5101307

10MM BALL STUD, 5/16-18 X 3/4 THDS
(Superseded to 5101307SM)

$5.49

$

Usually ships in 2-12 days

0

0450

Ferris 5100941

BALL STUD, 5/16 X .50,# PC-477-2)
(Superseded to 5100941SM)

$4.49

$

In Stock, Qty 12

0

0460

Ferris 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 10

0

0470

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

0480

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0490

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

0500

Ferris 5025478

BOLT, 3/8-16 X 1-3/4, SHCS, YZ
(Superseded to 5025478YP)

$3.49

$

Usually ships in 2-12 days

0

0510

Ferris 5105297

SPACER, .39 X .63 X .375M DOM CZ
(Superseded to 5105297YP)

$5.99

$

In Stock, only 1 left!

0

1000

Refer to: Main Frame & Front Suspension Group

$

$

Not available
