IS 6200Z (5901850) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Main Frame and Front Suspension Group Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

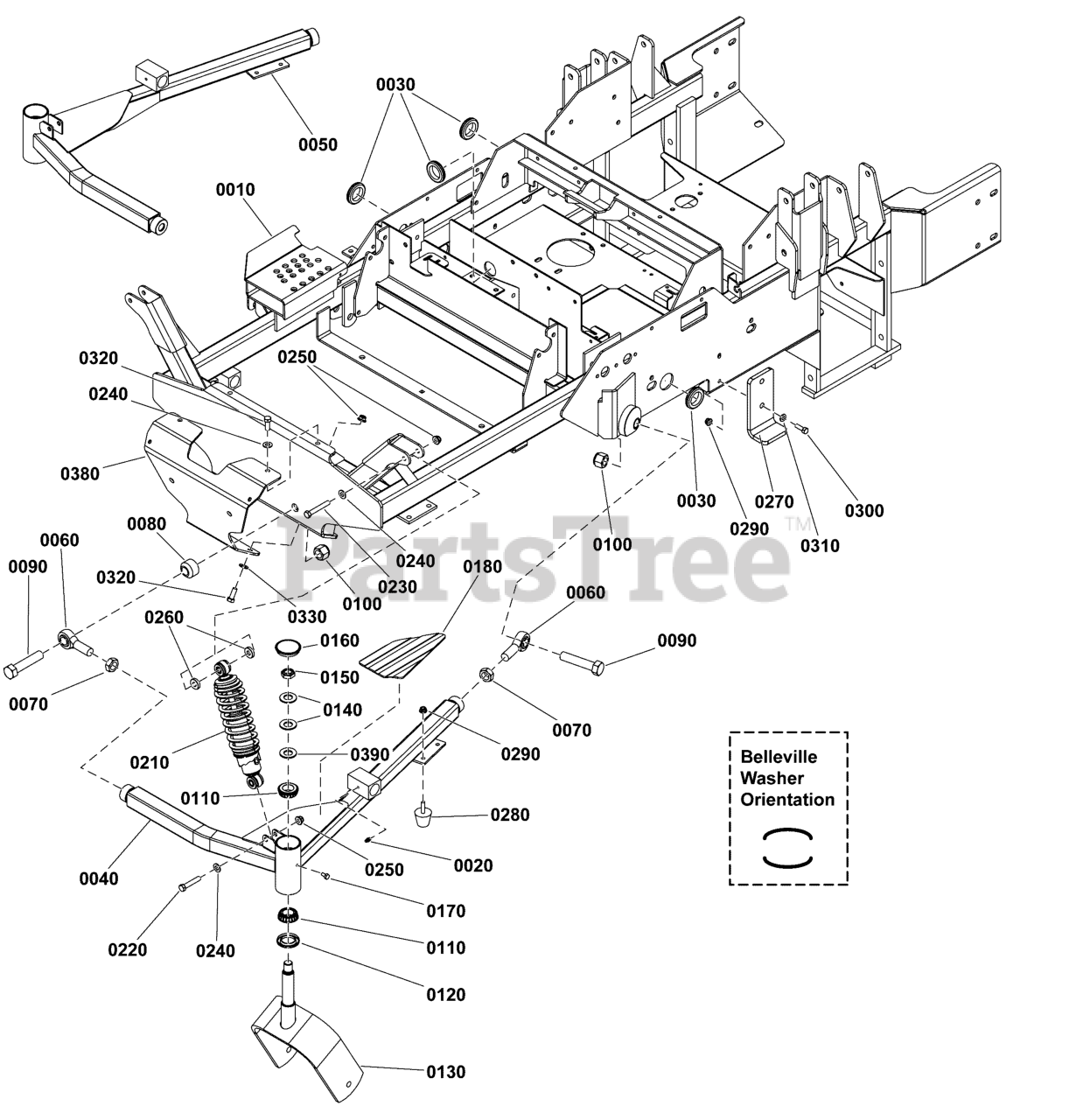

Main Frame and Front Suspension Group Parts Diagram

  • Title

0010

WELD, MAIN FRAME, IS6200Z - RED

$

$

Not available

0020

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

0030

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

0040

Ferris 5420823B

WELD, SUSPENSION ARM, LH, IS6200 - RED
(Superseded to 5420823BFS)

$246.99

$

Usually ships in 2-12 days

0

0050

Ferris 5420824B

WELD, SUSPENSION ARM, RH, IS6200 - RED
(Superseded to 5420824BFS)

$243.99

$

Usually ships in 2-12 days

0

0060

Ferris 5108795

BALL JOINT, 3/4-16, MALE, LOADER SLOT T
(Superseded to 5108795FS)

$33.99

$

Usually ships in 2-12 days

0

0070

Ferris 5025093

NUT, Hex, Jam, 3/4-16
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

0080

Ferris 5046093

SPACER, .75 X 1.50 X 1.00, CZ
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025265X28

BOLT, 3/4-16 X 3-1/2" YZ GD5
(Superseded to 5025265X28SM)

$15.99

$

Usually ships in 2-12 days

0

0100

Ferris 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

0110

Ferris 5100839

BEARING, TAPER ROLLER, 1.1417
(Superseded to 5100839FS)

$22.99

$

Usually ships in 2-12 days

0

0120

Ferris 5100838

SEAL, 1.983" X 1.500 X .188
(Superseded to 5100838FS)

$16.99

$

Usually ships in 2-12 days

0

0130

Ferris 5421437B

WELD, CASTER YOKE - RED
(Superseded to 5421437BFS)

$234.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

0150

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

0160

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

0170

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

0180

Ferris 5101003

SAFETY WALK, IS5000Z A-ARM STEP
(Superseded to 5101003FS)

$11.99

$

Usually ships in 2-12 days

0

0210

Ferris 5022842

COIL-OVER SHOCK ASSEMBLY
(Superseded to 5022842SM)

$216.99

$

In Stock, only 2 left!

0

0220

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0230

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

0240

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0250

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0260

Ferris 5108184

SPACER, .39 X 1.00 X .24, SHOCK, ISX
(Superseded to 84006562)

$3.49

$

Usually ships in 2-12 days

0

0270

Ferris 5421217B

PLATE, REAR DECK STOP, 6200 - RED
(Superseded to 5421217BFS)

$9.99

$

Usually ships in 2-12 days

0

0280

Ferris 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

Note: (Refer to Note: *)

$23.99

$

In Stock, only 2 left!

0

0290

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0300

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0310

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0320

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0330

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

0380

Ferris 5420645B

PLATE, FRONT MOUNT, 6200 - RED

$

$

Currently unavailable

0390

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0
