IS 6200Z (5901850) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Instrument Control Panel Group Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

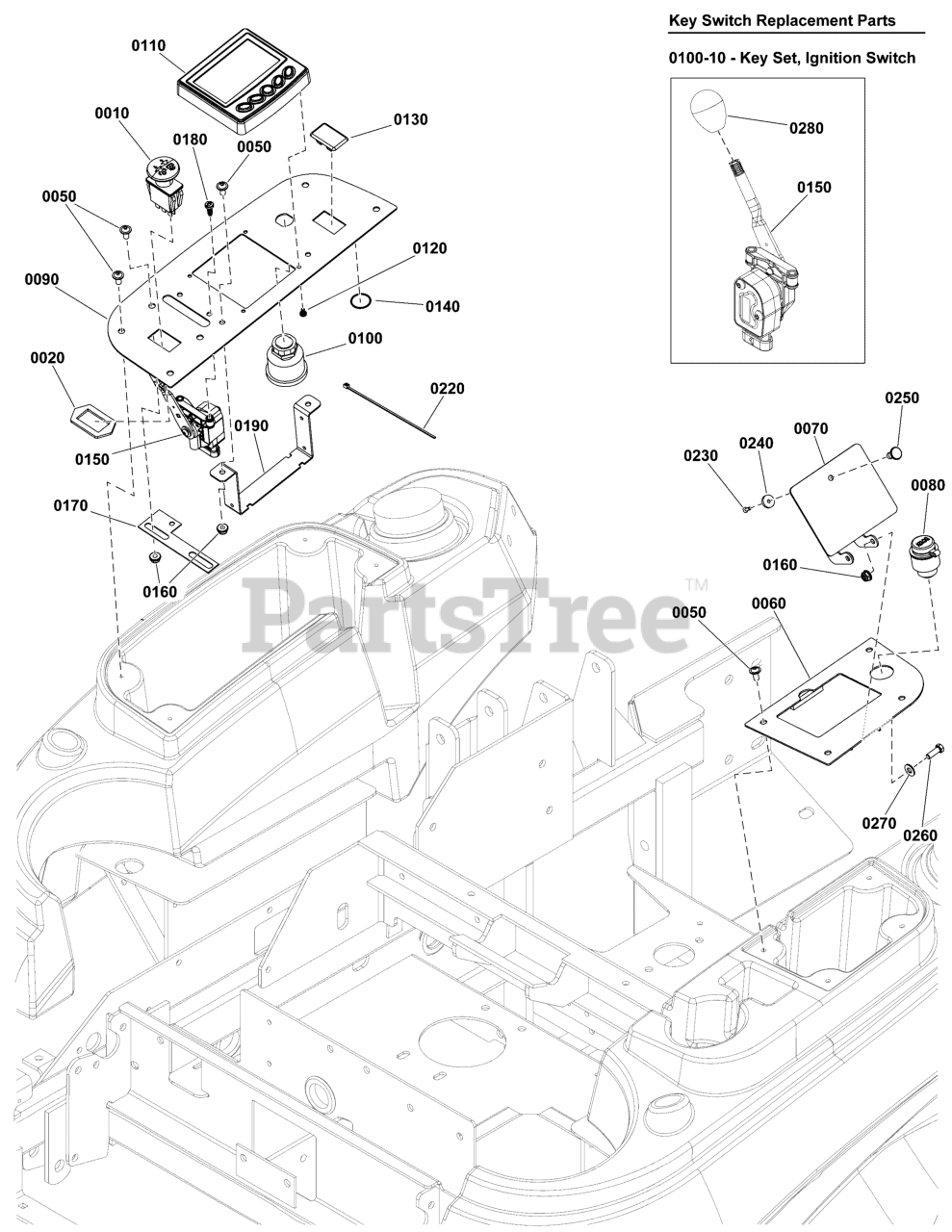

Instrument Control Panel Group Parts Diagram

  • Title

0010

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

0020

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

0050

Ferris 5106469

SCREW, FLANGE, ALLEN HD, 1/4-20X.5 S/S
(Superseded to 84002228)

$2.49

$

In Stock, Qty 15

0

0060

Ferris 5421826AA

WELD, COMPARTMENT MOUNT, 6200 - BLK
(Superseded to 5421826AAFS)

$49.99

$

Usually ships in 2-12 days

0

0070

Ferris 5421824AA

WELD, COMPARTMENT LID, 6200 - BLK
(Superseded to 5421824AAFS)

$37.99

$

Usually ships in 2-12 days

0

0080

Ferris 5100016

POWER, OUTLET - 12 VOLT
(Superseded to 5100016FS)

$29.99

$

Usually ships in 2-12 days

0

0090

Ferris 5421813AA

CONTROL PANEL, IS6200CE - BLK

$

$

Currently unavailable

0100

Ferris 5102962

IGNITION SWITCH, SEALED, 3 POS
(Superseded to 5102962FS)

$101.99

$

Usually ships in 2-12 days

0

0100-10

Ferris 5102962X1

KEY SET, Ignition Switch, 3 position (SV)

$36.99

$

Usually ships in 2-12 days

0

0110

Ferris 5109122

CAN DISPLAY, IS6200
(Superseded to 5109122FS)

Note: (Refer to Note: *)

$1214.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025687

SCREW #8-32 X 5/16",PH, XT TH LOCKWASHER

$

$

Currently unavailable

0130

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

0140

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 5109758

ELECTRONIC THROTTLE, WITH IVS, 5V
(Superseded to 5109758FS)

$165.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0170

PLATE, Throttle Stop

$

$

Not available

0180

Ferris 5110059

SCREW, THREADFORMING, M6 X 16

$

$

Currently unavailable

0190

Ferris 5421814AA

BRACKET, MODULE MOUNTING - BLK

$

$

Currently unavailable

0220

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

0230

Ferris 5109866

SCREW, #6-32 X 3/8, FH, PHILLIPS

$

$

Currently unavailable

0240

Ferris 5109830

MAGNET, 6200 COMPARTMENT

$

$

Currently unavailable

0250

Ferris 5109831

KNOB, 6-32 THREAD

$

$

Currently unavailable

0260

Ferris 5025010X4

BOLT, 1/4-20 x 1/2

$

$

Currently unavailable

0270

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0280

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0
