IS 6200Z (5901850) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Hood and Bumper Group - Hood, Latch, and Grill Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

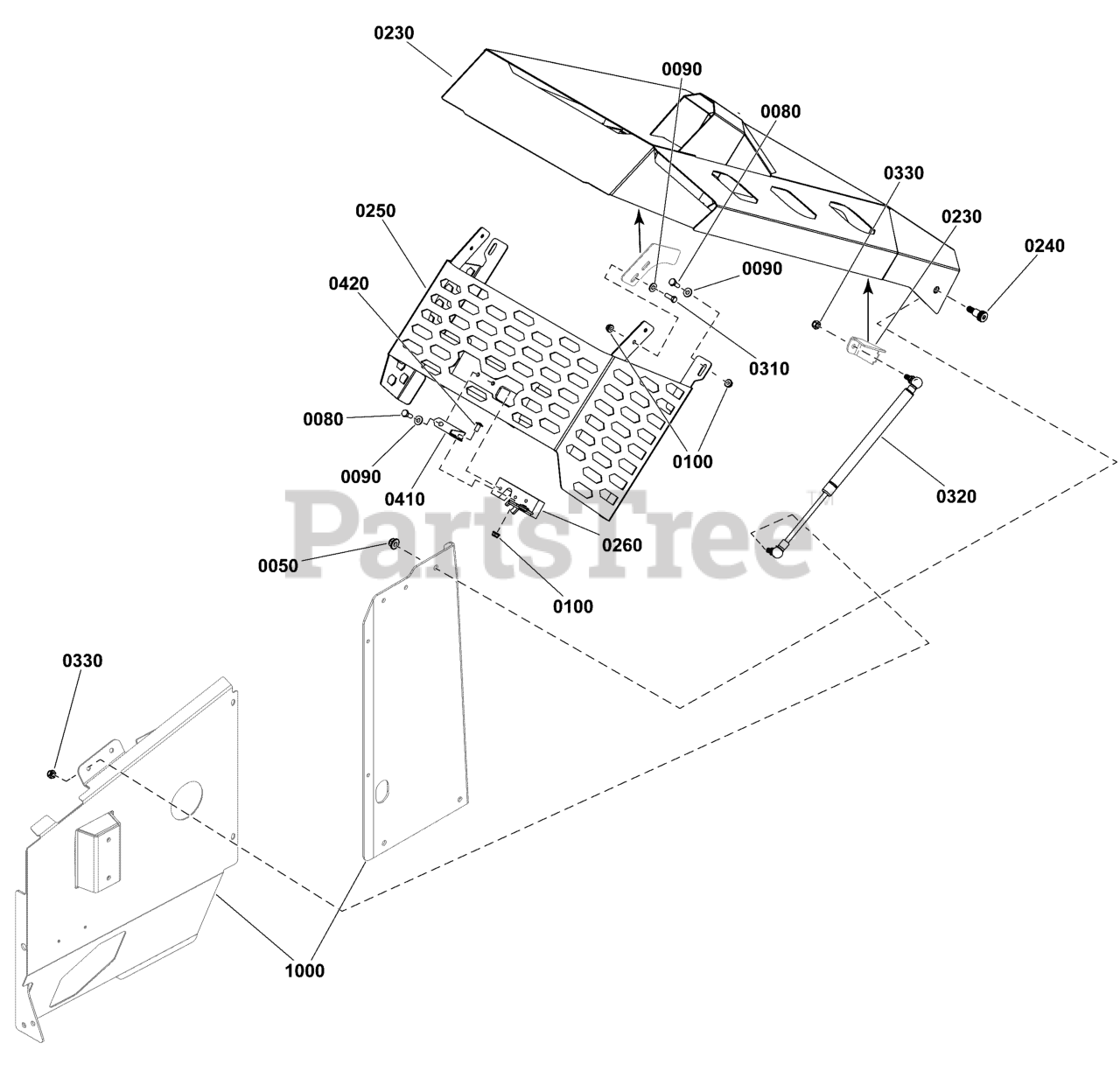

Hood and Bumper Group - Hood, Latch, and Grill Parts Diagram

  • Title

0050

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0080

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0090

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0230

Ferris 5420460B

WELD, HOOD, 6200 - RED
(Superseded to 5420460BFS)

$326.99

$

Usually ships in 2-12 days

0

0240

Ferris 5109856

BOLT, 3/8-16 X 1/2, 5/8 SHOULDER

$

$

Currently unavailable

0250

Ferris 5421111AA

WELD, GRILL, HOOD, 6200 - BLK
(Superseded to 5421111AAFS)

$161.99

$

Usually ships in 2-12 days

0

0260

Ferris 5100265

HOOD LATCH, IS5000
(Superseded to 5100265FS)

$56.99

$

In Stock, only 2 left!

0

0310

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0320

Ferris 5109500

GAS SPRING, IS6200 HOOD
(Superseded to 5109500FS)

$62.99

$

Usually ships in 2-12 days

0

0330

Ferris 5025354

NUT, M8-1.25 Hex Nylon Lock
(Superseded to 5025354SM)

$3.49

$

Usually ships in 2-12 days

0

0410

Ferris 5421678AA

GUARD, HOOD LOCK, 6200CE - BLK

$

$

Currently unavailable

0420

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

1000

Refer to: Hood and Bumper Group - Bumper, Side Plates, and Hood Supports

$

$

Not available
