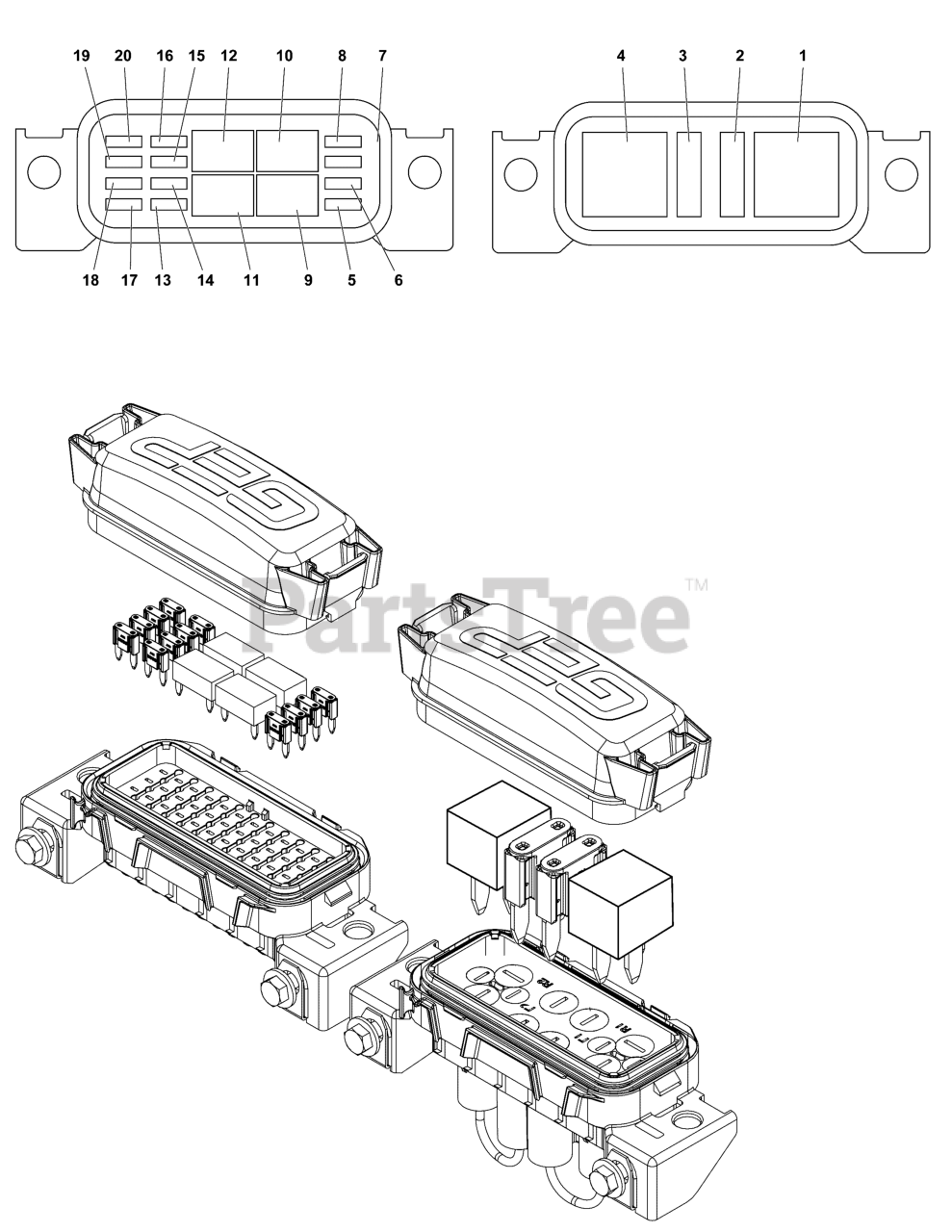

IS 6200Z (5901850) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Electrical Group - Fuses and Relays Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

Electrical Group - Fuses and Relays Parts Diagram

  • Title
1

Ferris 5108980

RELAY,MAXI N/O DIODE PC795-1A-C-12C-DN-X

Note: Function: Start

$

$

Currently unavailable

2

Ferris 5108981

FUSE, MAXI 20 AMP 0299020

Note: Function: Start

$

$

Currently unavailable

3

Ferris 5108982

FUSE, 25 AMP

Note: Function: Glow Plugs

$

$

Currently unavailable

4

Ferris 5108980

RELAY,MAXI N/O DIODE PC795-1A-C-12C-DN-X

Note: Function: Glow Plugs

$

$

Currently unavailable

5

Ferris 5108965

FUSE, MINI 5 AMP 0297005

Note: Function: Spare

$

$

Currently unavailable

6

Ferris 5108966

FUSE, MINI 10 AMP 0297010

Note: Function: Spare

$1.49

$

Usually ships in 2-12 days

0

7

Ferris 5108967

FUSE, MINI 20 AMP 0297020

Note: Function: Spare

$5.99

$

Usually ships in 2-12 days

0

8

Ferris 5108965

FUSE, MINI 5 AMP 0297005

Note: Function: Fuel Pump Relay Coil

$

$

Currently unavailable

9

Ferris 84008404

RELAY

Note: Function: Engine

$39.99

$

Usually ships in 2-12 days

0

10

Ferris 84008404

RELAY

Note: Function: Spare

$39.99

$

Usually ships in 2-12 days

0

11

Ferris 84008404

RELAY

Note: Function: PTO

$39.99

$

Usually ships in 2-12 days

0

12

Ferris 84008404

RELAY

Note: Function: Fuel Pump

$39.99

$

Usually ships in 2-12 days

0

13

Ferris 5108967

FUSE, MINI 20 AMP 0297020

Note: Function: PTO

$5.99

$

Usually ships in 2-12 days

0

14

Ferris 5108967

FUSE, MINI 20 AMP 0297020

Note: Function: 12 Volt Outlet

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5108968

FUSE, MINI 30 AMP 0297030

Note: Function: Engine

$

$

Currently unavailable

16

Ferris 5108965

FUSE, MINI 5 AMP 0297005

Note: Function: Cat Tool

$

$

Currently unavailable

17

Ferris 5108964

FUSE, MINI 2 AMP 0297002

Note: Function: Display

$

$

Currently unavailable

18

Ferris 5108965

FUSE, MINI 5 AMP 0297005

Note: Function: Key

$

$

Currently unavailable

19

Ferris 5108965

FUSE, MINI 5 AMP 0297005

Note: Function: Disconnect Lamp

$

$

Currently unavailable

20

Ferris 5108966

FUSE, MINI 10 AMP 0297010

Note: Function: Fuel Pump

$1.49

$

Usually ships in 2-12 days

0
