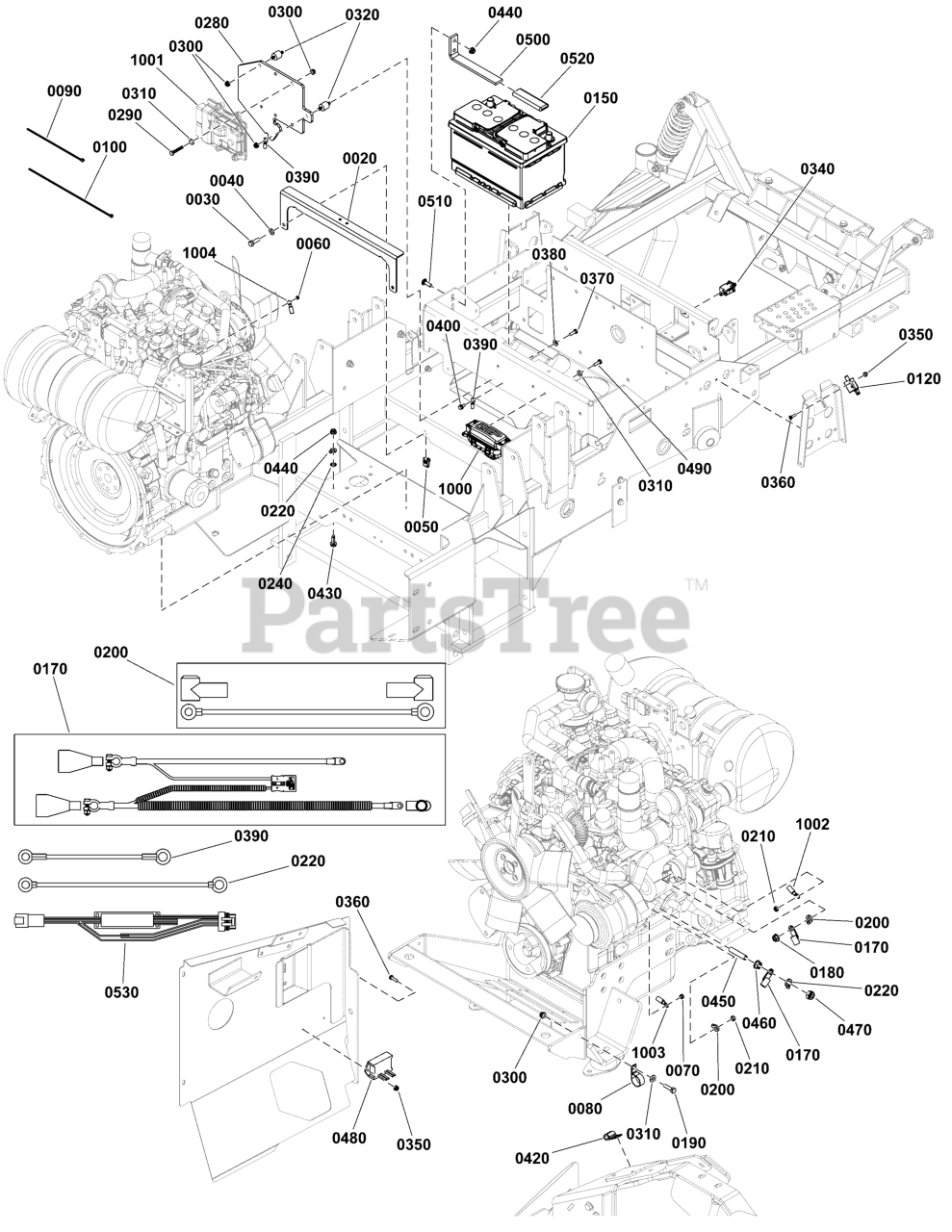

IS 6200Z (5901850) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Electrical Group Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

Electrical Group Parts Diagram

  • Title

0020

Ferris 5420913AA

PLATE, HARNESS SUPPORT, IS6200 - BLK
(Superseded to 5420913AAFS)

$16.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0040

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0050

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0060

Ferris 5025685

NUT, M4, KEPS

$

$

Currently unavailable

0070

Ferris 5025686

NUT, M5 KEPS

$

$

Currently unavailable

0080

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0090

Ferris 5100581

TIE,SELF-LOCKING, 8"

$

$

Currently unavailable

0100

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0120

Ferris 5021451

SWITCH, PLUNGER, N.O., BOLT-ON
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

0150

BATTERY, 700 AMP, BCI GROUP: 91

$

$

Not available

0170

Ferris 5109281

HARNESS, BATTERY CABLES, 6200
(Superseded to 5109281FS)

$147.99

$

Usually ships in 2-12 days

0

0180

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

0190

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

0200

Ferris 5048756

CABLE, #6 X 15" LONG, RING TERMINAL
(Superseded to 5048756SM)

$19.99

$

Usually ships in 2-12 days

0

0210

Ferris 5025420

NUT, M6-1.0

$

$

Currently unavailable

0220

Ferris 5047690

BATTERY CABLE, NEG, 14, 5/16-13/32
(Superseded to 5047690SM)

$16.99

$

Usually ships in 2-12 days

0

0240

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

0280

Ferris 5420757

PLATE, ECU ISO MOUNT, IS6200
(Superseded to 5420757FS)

$58.99

$

Usually ships in 2-12 days

0

0290

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2 GD5 CZ
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

0300

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0310

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0320

Ferris 5109404

ISO MOUNT, 1/4-20 STUDS, 40 LBS
(Superseded to 5109404FS)

$5.99

$

Usually ships in 2-12 days

0

0340

Ferris 5109174

SWITCH, PLUNGER, NO, BLACK, DELTA
(Superseded to 84006599)

$12.99

$

In Stock, only 2 left!

0

0350

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0360

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

0370

Ferris 5025010X4

BOLT, 1/4-20 x 1/2

$

$

Currently unavailable

0380

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 2 left!

0

0390

Ferris 5421304

WIRE ASM, GROUND, ECU

$

$

Currently unavailable

0400

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap, BZ

$

$

Not available

0420

Ferris 5025430

CLAMP, 5/16", DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

0430

Ferris 80006216

SCREW,5/16-18X1.000,HEX WSHR HD,TT,ZC/CL
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0440

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0450

Ferris 5025598

SOCKET SET SCREW, M10-1.5 X 50, SS, CAP PT
(Superseded to 5025598FS)

$7.99

$

Usually ships in 2-12 days

0

0460

Ferris 5025599

HEX NUT, FLG, M10-1.5 SER CZ, NO SEALER
(Superseded to 5025599FS)

$2.99

$

Usually ships in 2-12 days

0

0470

Ferris 5025428

HEX NUT, M10-1.5 NYLON INSERT
(Superseded to 5025428FS)

$2.49

$

Usually ships in 2-12 days

0

0480

Ferris 5109529

SOFT START, IS6200
(Superseded to 5109529FS)

$320.99

$

Usually ships in 2-12 days

0

0490

Ferris 5025235

BOLT M6 X 20MM GD8.8
(Superseded to 5025235FS)

$2.49

$

Usually ships in 2-12 days

0

0500

Ferris 5421654B

BRACKET, BATTERY STRAP, 6200 - RED

$

$

Currently unavailable

0510

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0520

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

0530

Ferris 5421854

HARNESS, SENDERCAN, 6200CE
(Superseded to 5421854FS)

$948.99

$

Usually ships in 2-12 days

0

1000

Fuse Blocks

$

$

Not available

1001

ECM

$

$

Not available

1002

Connects to Starter Solenoid (Post)

$

$

Not available

1003

Connects to Alternator

$

$

Not available

1004

Connects to Glow Plugs

$

$

Not available
