IS 6200Z (5901849) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Fuel Tank and Mount Group Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

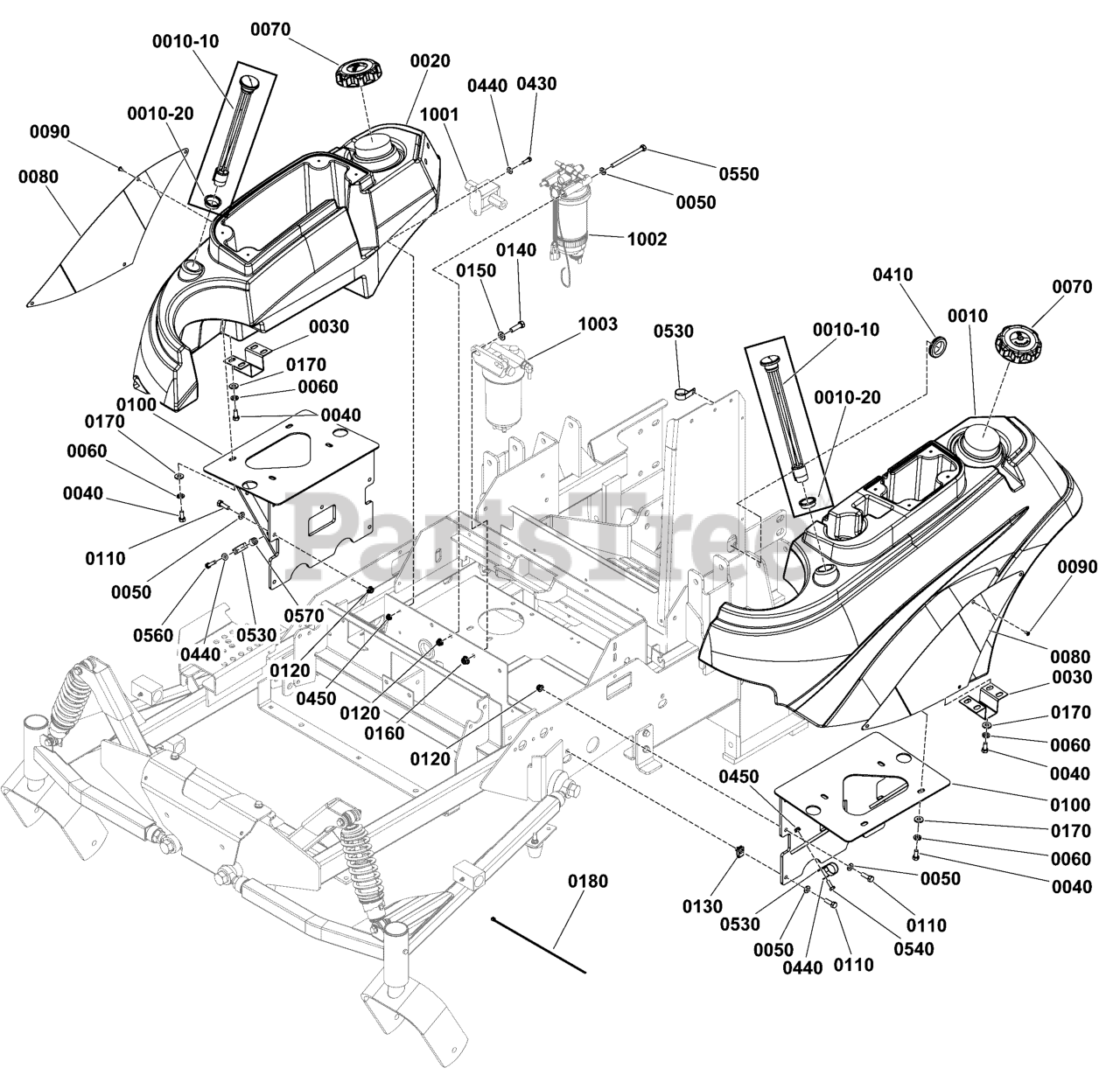

Fuel Tank and Mount Group Parts Diagram

  • Title

0010

Ferris 5109413

TANK, FUEL, LH, IS6200Z
(Superseded to 5109413FS)

$425.99

$

Usually ships in 2-12 days

0

0010-10

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

Note: (One per tank)

$48.99

$

Usually ships in 2-12 days

0

0010-20

Ferris 5022917X1

GROMMET, FUEL GAUGE (SV)
(Superseded to 5022917X1SM)

Note: (One per tank)

$6.99

$

In Stock, Qty 5

0

0020

Ferris 5109414

TANK, FUEL, RH, IS6200Z
(Superseded to 5109414FS)

$420.99

$

Usually ships in 2-12 days

0

0030

Ferris 5421120AA

GUARD, FUEL TANK SHUT-OFF, 6200 - BLK
(Superseded to 5421120AAFS)

$15.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0050

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0060

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

0070

Ferris 5109185

FUEL CAP, 3.5, NON VENTED DIESEL, ULS
(Superseded to 5109185FS)

$30.99

$

Usually ships in 2-12 days

0

0080

Ferris 5061301B

PLATE, BADGE, IS4500Z
(Superseded to 5061301BFS)

$40.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025386

SCREW, Allen Head, #10-24 x 3/8"
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

0100

Ferris 5420636B

WELD, FUEL TANK MOUNT - RED
(Superseded to 5420636BFS)

$90.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0120

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0140

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

0150

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0160

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0170

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

0180

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0410

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

0430

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0440

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0450

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0530

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0540

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0550

Ferris 5025011X32

BOLT, 5/16-18 x 4

$

$

Currently unavailable

0560

Ferris 5025010X10

BOLT, 1/4-20 X 1-1/4 GD5 CZ
(Superseded to 5025010X10SM)

$3.99

$

In Stock, only 4 left!

0

0570

Ferris 5102581

SPACER, .33 X .63 X .50, CZ
(Superseded to 5102581YP)

$11.99

$

Usually ships in 2-12 days

0

1001

Refer to: Fuel Supply and Tank Replacement Parts Group

$

$

Not available

1002

Refer to: Fuel Supply and Tank Replacement Parts Group

$

$

Not available

1003

Refer to: Fuel Supply and Tank Replacement Parts Group

$

$

Not available
