IS 6200Z (5901849) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Electrical Group - Wiring Harness Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

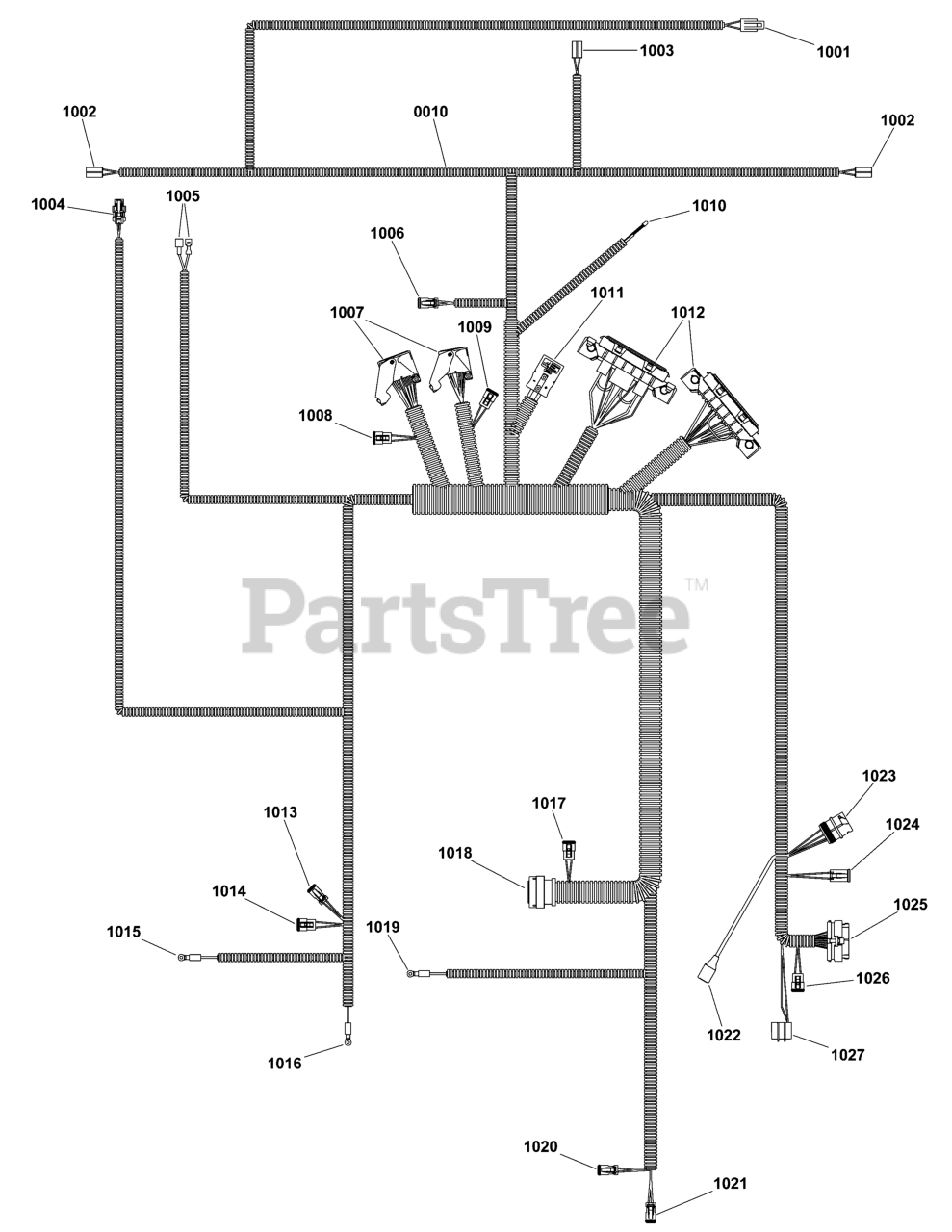

Electrical Group - Wiring Harness Parts Diagram

  • Title

0010

Ferris 5109010

HARNESS, 6200 WIRING, CAT C 1.7T
(Superseded to 5109748FS)

Note: (S/N: 4001933020 and below)

$1611.99

$

Usually ships in 2-12 days

0

0010

Ferris 5109748

HARNESS, 6200CE WIRING, CAT C1.7T
(Superseded to 5109748FS)

Note: (S/N: 4001933021 and above)

$1611.99

$

Usually ships in 2-12 days

0

1001

Connects to Seat Switch

$

$

Not available

1002

Connects to Neutral Switch

$

$

Not available

1003

Connects to Parking Brake Switch

$

$

Not available

1004

Connects to Air Inlet Temperature Sensor

$

$

Not available

1005

Connects to 12 V Power

$

$

Not available

1006

Connects to Fuel Pump

$

$

Not available

1007

Connects to ECM

$

$

Not available

1008

Connects to Resistor (Can Termination)

$

$

Not available

1009

Connects to Resistor (Can Termination)

$

$

Not available

1010

Wait to Start Lamp

$

$

Not available

1011

Connects to Battery Cables

$

$

Not available

1012

Fuse Blocks

$

$

Not available

1013

Connects to Diode

$

$

Not available

1014

Connects to Resistor (Alternator) 3 Pin

$

$

Not available

1015

Connects to Starter Solenoid (Post)

$

$

Not available

1016

Connects to Alternator

$

$

Not available

1017

Connects to Resistor (Can Termination)

$

$

Not available

1018

Connects to Engine Interface

$

$

Not available

1019

Connects to Glow Plugs

$

$

Not available

1020

Connects to Diode

$

$

Not available

1021

Connects to PTO Clutch

$

$

Not available

1022

Connects to USB

$

$

Not available

1023

Connects to Engine Manufacturer Diagnostic Tool

$

$

Not available

1024

Connects to Ignition Switch

$

$

Not available

1025

Connects to Digital Display Panel

$

$

Not available

1026

Connects to Resistor (Can Termination)

$

$

Not available

1027

Connects to PTO Switch

$

$

Not available
