IS 600Z (5902111) - Ferris IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Rear-Discharge Engine and PTO Group - Briggs & Stratton CXi Parts Diagram

IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Rear-Discharge

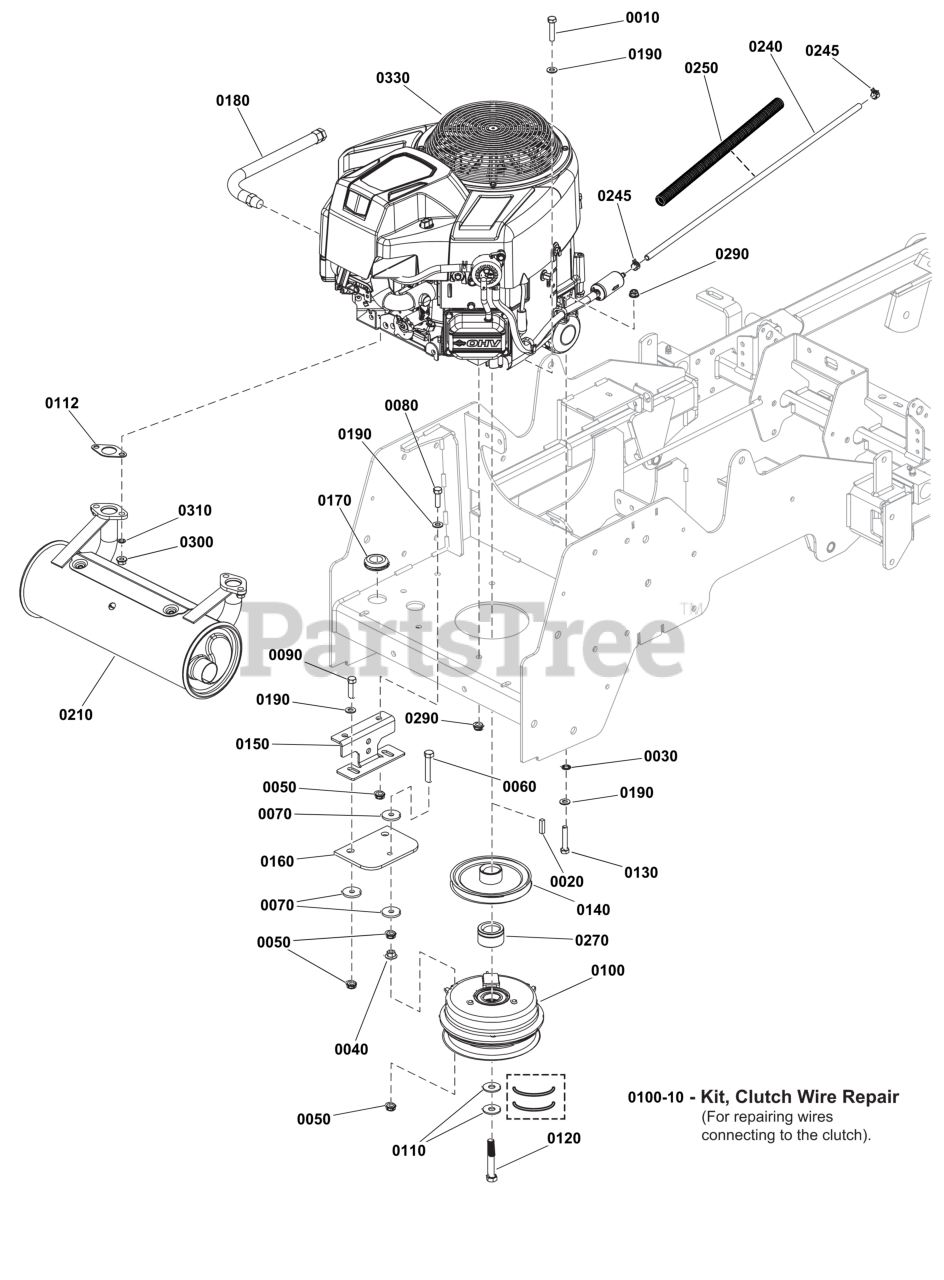

Engine and PTO Group - Briggs & Stratton CXi Parts Diagram

  • Title

0010

Ferris 5025025X12YP

BOLT

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$3.99

$

Usually ships in 2-12 days

0

0020

Ferris 5050407X8SM

KEY, 1/4" SQ. X 1.00

$3.99

$

In Stock, only 1 left!

0

0030

Ferris 5025188SM

WASHER, 5/16" INT. TO

$3.99

$

In Stock, only 1 left!

0

0040

Ferris 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, Qty 12

0

0050

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 5025055X16SM

BOLT, 5/16-18X2

$3.99

$

Usually ships in 2-12 days

0

0070

Ferris 5044617SM

WASHER, .34 X 1.25 X

$8.49

$

In Stock, only 2 left!

0

0080

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 4 left!

0

0090

Ferris 5025011X8FS

BOLT

$3.49

$

In Stock, Qty 17

0

0100

Ferris 5105090YP

CLUTCH

$456.99

$

In Stock, only 3 left!

0

0100-10

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025585YP

BELLEVILLE WASHER

$4.49

$

In Stock, only 4 left!

0

0112

Ferris 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0120

Ferris 5102865YP

BOLT, CRANKSHAFT,7/16

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm)

$5.49

$

In Stock, only 2 left!

0

0130

Ferris 5025025X14YP

BOLT

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$4.49

$

Usually ships in 2-12 days

0

0140

Ferris 5103558YP

PULLEY,CRANKSHAFT

$55.99

$

In Stock, only 1 left!

0

0150

Ferris 5410367AYP

ANCHOR, CLUTCH

$17.99

$

In Stock, only 1 left!

0

0160

Ferris 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

Usually ships in 2-12 days

0

0170

Ferris 5021379SM

GROMMET, 7/8

$6.99

$

Usually ships in 2-12 days

0

0180

Ferris 5048681SM

HOSE, OIL DRAIN

$18.99

$

Usually ships in 2-12 days

0

0190

Ferris 703350

WASHER

$4.49

$

In Stock, only 3 left!

0

0210

Ferris 706900

MUFFLER, RIGHT OUTLET

$222.99

$

Usually ships in 2-12 days

0

0240

Ferris 5050831X25SM

HOSE 1/4 FUEL - 25

$19.99

$

Usually ships in 2-12 days

0

0245

Ferris 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

0250

Ferris 5050833X13YP

WIRE LOOM, 1/2ID, 13

$6.99

$

Usually ships in 2-12 days

0

0270

Ferris 5047033SM

SPACER, 1.13 X 1.75 X

$13.99

$

Usually ships in 2-12 days

0

0290

Ferris 5025616YP

NUT

$3.99

$

In Stock, only 2 left!

0

0300

Ferris 690941

NUT

$4.99

$

In Stock, Qty 7

0

0310

Ferris 5023217SM

WASHER, 5/16 LIGHT LO

$3.49

$

Usually ships in 2-12 days

0

0330

Engine, Briggs & Stratton CXi

Note: (Refer to Note: *)

$

$

Not available
