IS 600Z (5901730) - Ferris IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge 44" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge

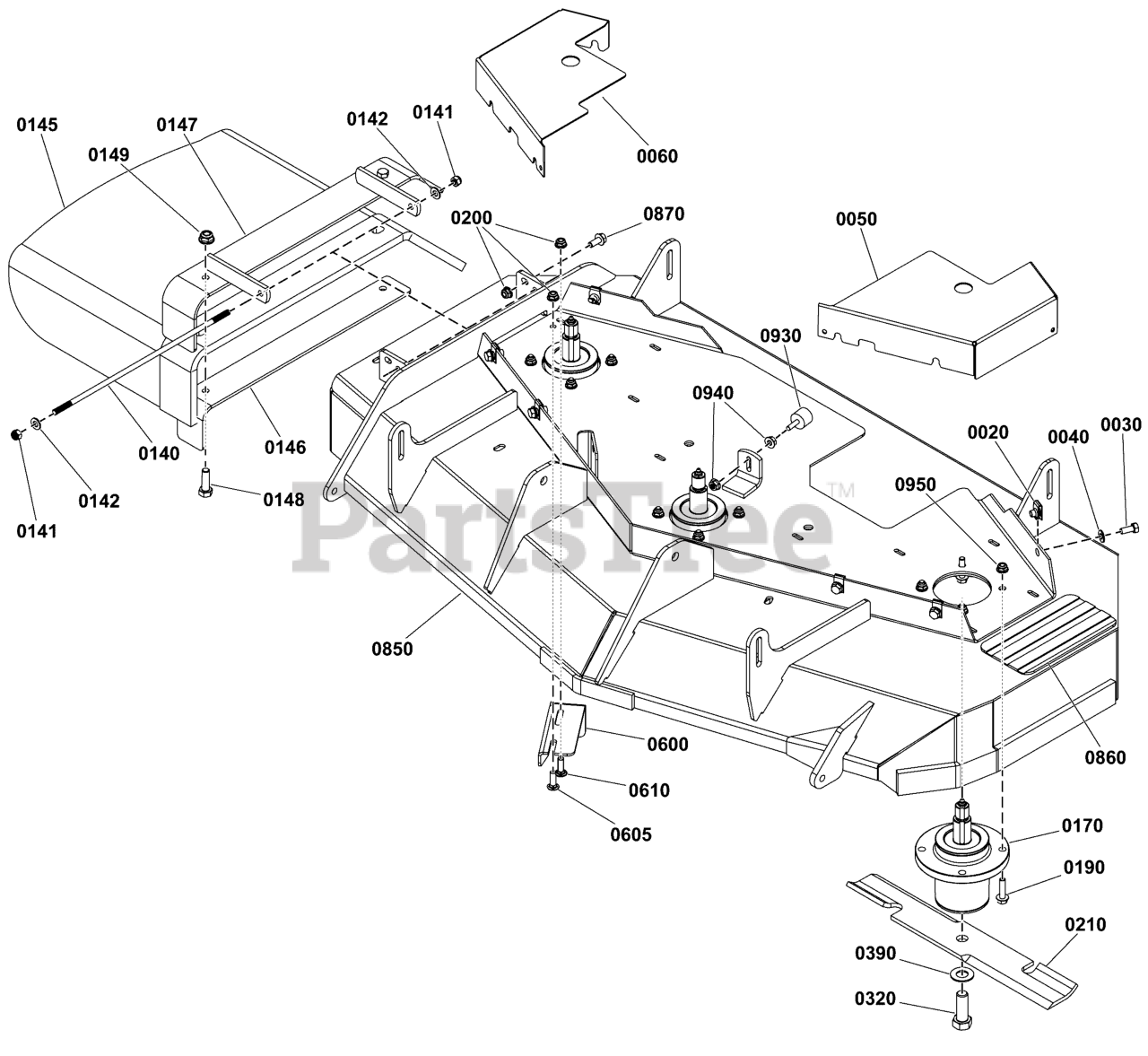

44" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

0020

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0030

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

0040

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0050

Ferris 5061831B

GUARD, 44" MOWER DECK, LH
(Superseded to 5061831BFS)

$31.99

$

Usually ships in 2-12 days

0

0060

Ferris 5061832B

GUARD, 44" MOWER DECK, RH
(Superseded to 5061832BFS)

$31.99

$

Usually ships in 2-12 days

0

0140

Ferris 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

0141

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0142

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0145

Ferris 5413498

CHUTE, RUBBER DISCHARGE CHUTE (5104441)

$165.99

$

Usually ships in 2-12 days

0

0146

Ferris 5413401A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5413401AA)

$32.99

$

Usually ships in 2-12 days

0

0147

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

In Stock, only 1 left!

0

0148

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0149

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0170

Ferris 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

0190

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

Note: (Torque spindle mounting bolt to 30 ft-lbs (41 Nm)

$2.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0210

Ferris 5061827S

BLADE SET, 44" DECK (SET OF THREE)(SV)

$72.99

$

Usually ships in 2-12 days

0

0320

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolt to 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

0390

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 10

0

0600

Ferris 5401283A

WELD, DISCHARGE BAFFLE, 44" - BLK

$

$

Currently unavailable

0605

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0610

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0850

Ferris 5600642

DECK SHELL W/ DECALS, IS600-44 (5410240B)

$1624.99

$

Usually ships in 2-12 days

0

0860

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

0870

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

0930

Ferris 5105237

BUMPER, RUBBER, 1/4-20 X 7/8" STUD
(Superseded to 5105237YP)

$6.99

$

In Stock, only 1 left!

0

0940

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0950

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
