IS 600Z (5901716) - Ferris IS600Z Series 52" Zero-Turn Mower, 25hp Briggs & Stratton, CARB, Side-Discharge Evap Canister Group Parts Diagram

IS600Z Series 52" Zero-Turn Mower, 25hp Briggs & Stratton, CARB, Side-Discharge

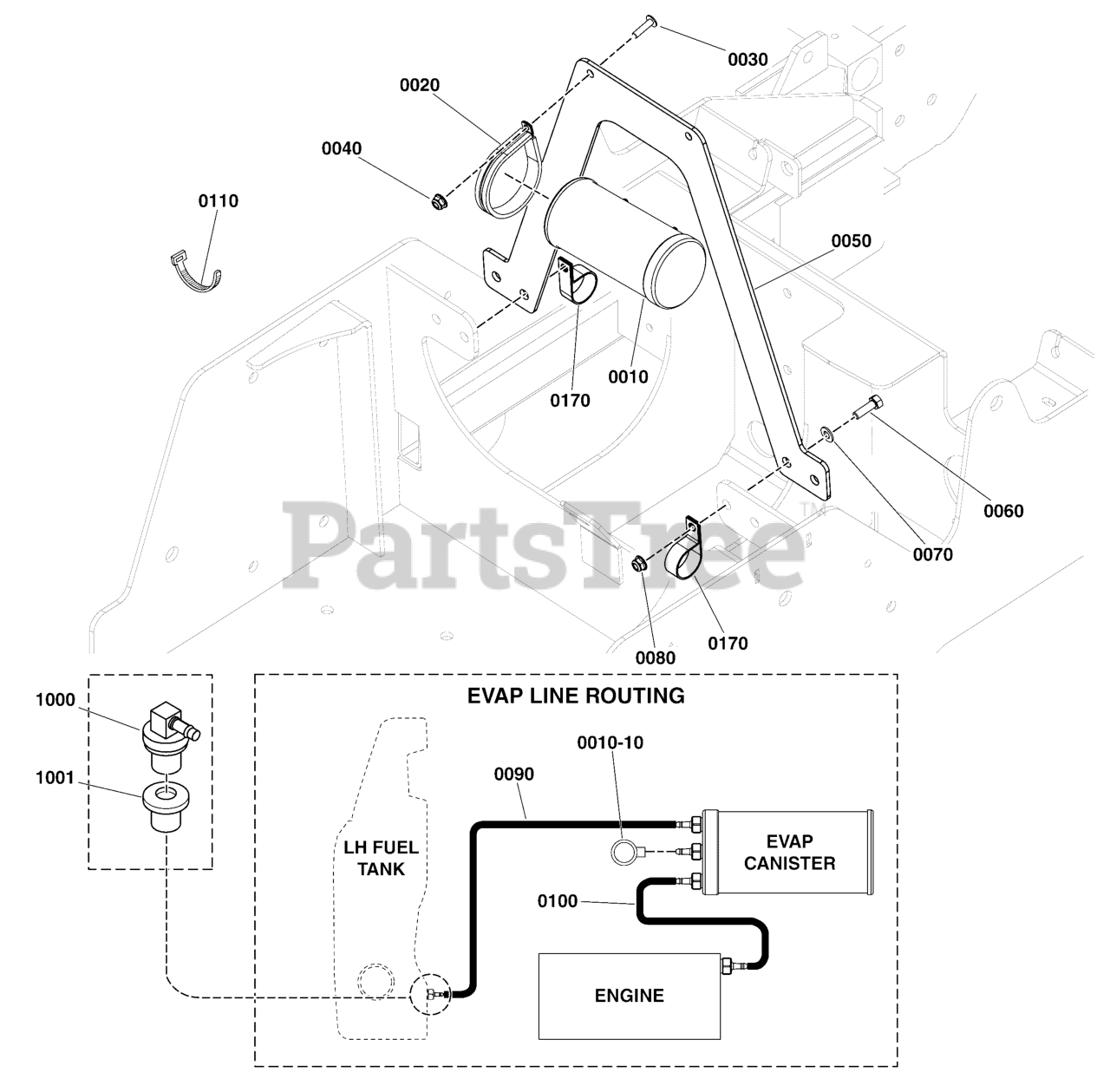

Evap Canister Group Parts Diagram

  • Title

0010

Ferris 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$217.99

$

Usually ships in 2-12 days

0

0010-10

Ferris 1752800

DUST FILTER, CANISTER (SV)
(Superseded to 1752800YP)

$15.99

$

In Stock, only 1 left!

0

0020

Ferris 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

0040

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0050

Ferris 5410252A

PLATE, MOUNT, CANISTER, IS600 - BLK
(Superseded to 5410252AYP)

$14.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0070

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0080

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0090

Ferris 7700552X23

HOSE, VAPOR, 5MM ID, 23.00 LG
(Superseded to 7700552X23FS)

$7.99

$

Usually ships in 2-12 days

0

0100

Ferris 7700552X33P5

HOSE, VAPOR, 5MM ID, 33.50 LG
(Superseded to 7700552X33P5YP)

$9.99

$

Usually ships in 2-12 days

0

0110

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

0170

Ferris 5025558

CLAMP, TUBE & WIRING, 1.062 ID
(Superseded to 5025558YP)

$4.99

$

Usually ships in 2-12 days

0

1000

Ferris 770046

REMOTE VENT ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

1001

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

$8.99

$

In Stock, Qty 15

0
