IS 600Z (5901699) - Ferris IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge Electrical Group Parts Diagram

IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge

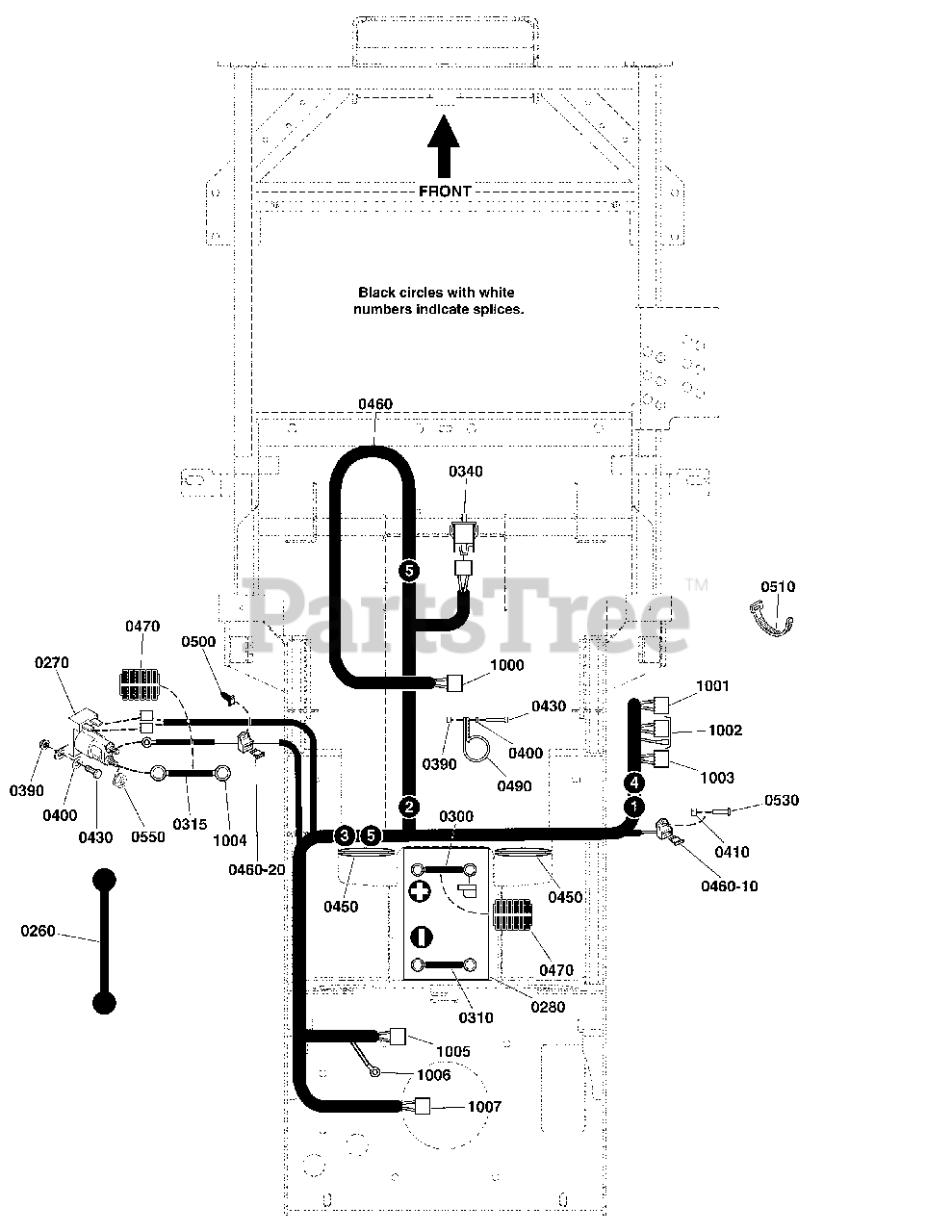

Electrical Group Parts Diagram

  • Title

0260

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

0270

Ferris 1755382

SOLENOID, STD-BRACKET, 2-SPADE
(Superseded to 1755382FS)

$27.99

$

Usually ships in 2-12 days

0

0280

BATTERY, 11U1L, 350 CCA

Note: (Refer to Note: *)

$

$

Not available

0300

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

0310

Ferris 5047690

BATTERY CABLE, NEG, 14, 5/16-13/32
(Superseded to 5047690SM)

$16.99

$

Usually ships in 2-12 days

0

0315

Ferris 5023488

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5023488SM)

$27.99

$

Usually ships in 2-12 days

0

0340

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0390

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0400

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0410

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0430

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0450

Ferris 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

0460

Ferris 5105536

HARNESS, Wiring, Small ZTR
(Superseded to 5105536YP)

$198.99

$

Usually ships in 2-12 days

0

0460-10

Ferris 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

$4.49

$

Usually ships in 2-12 days

0

0460-20

Ferris 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

0470

Ferris 5050927X18

WIRE LOOM, 3/8 ID X 18 IN

$

$

Currently unavailable

0490

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0500

Ferris 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

0510

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

0530

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

0550

Ferris 80003921

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

1000

Connects to Seat Switch

$

$

Not available

1001

Connects to PTO Switch

$

$

Not available

1002

Connects to Ignition Switch

$

$

Not available

1003

Connects to Hour Meter

$

$

Not available

1004

Connects to Engine Starter

$

$

Not available

1005

Connects to Engine

$

$

Not available

1006

Connects to Ground

$

$

Not available

1007

Connects to PTO Clutch

$

$

Not available
