IS 600Z (5901255) - Ferris IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge Wheel & Tire Group Parts Diagram

IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge

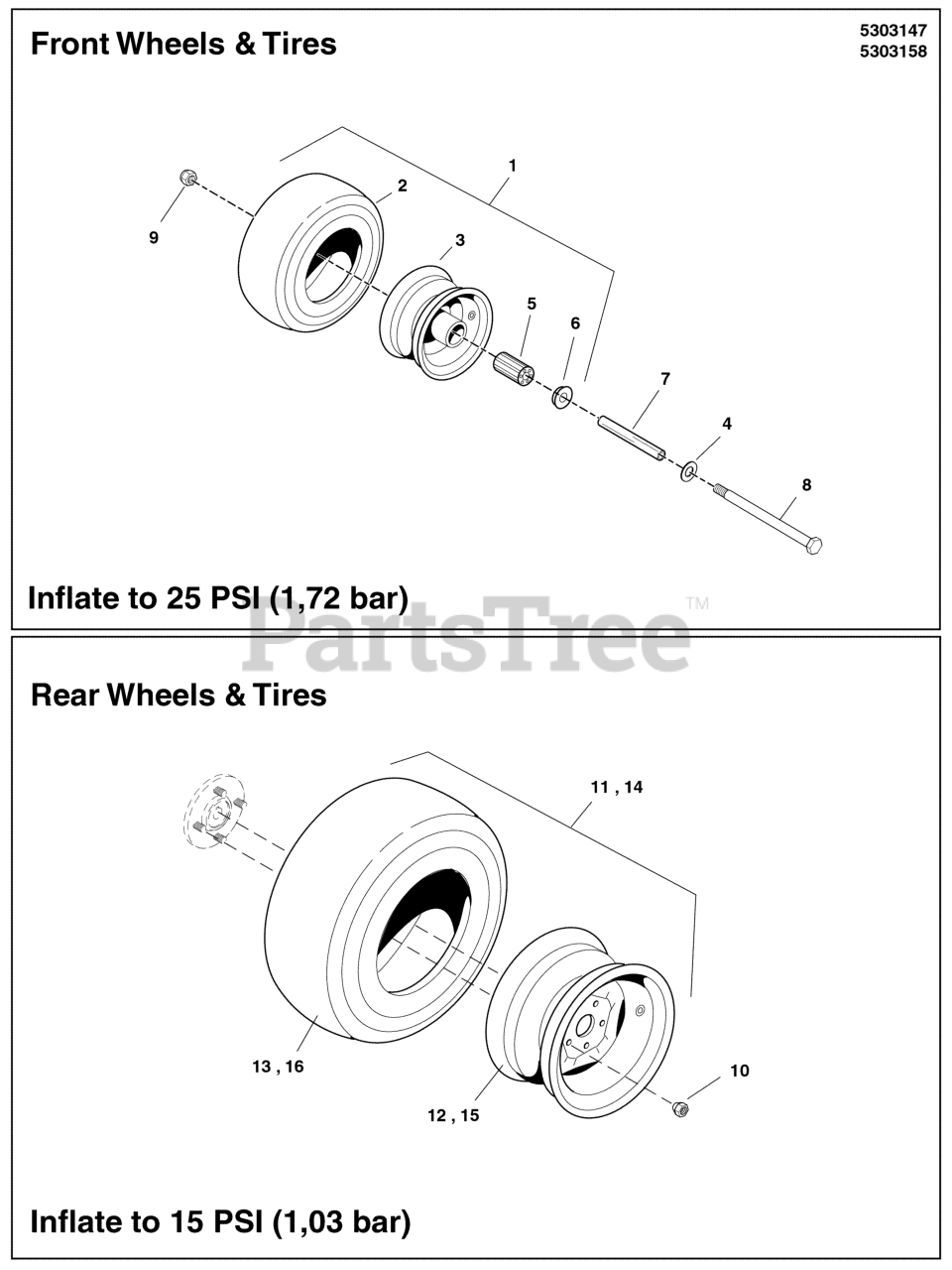

Wheel & Tire Group Parts Diagram

  • Title

1

Ferris 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

$127.99

$

In Stock, Qty 11

0

2

Ferris 5022433X1

TIRE, FRONT, 11X4.0-5

Note: (SV)

$70.99

$

Usually ships in 2-12 days

0

3

Ferris 5101418X2

WHEEL FOR 11X4.0-5 TIRE ASSM

Note: (SV)

$

$

Currently unavailable

4

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

5

Ferris 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0-5

Note: (SV)

$27.99

$

Usually ships in 2-12 days

0

6

Ferris 5021043

BEARING, RETAINER

Note: (SV)

$6.99

$

Usually ships in 2-12 days

0

7

Ferris 5045996

CASTER AXLE DDSH
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

8

Ferris 5025017X56

BOLT, 1/2-13 X 7 GD5 YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

9

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

10

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

11

Ferris 5103622

TIRE/WHEEL ASM, 22X11-10, TURF MASTER
(Superseded to 5103622YP)

Note: (Models with 48" Decks Only)

$480.99

$

In Stock, only 1 left!

0

12

Ferris 5103622X1

WHEEL, 10 X 7 4/4, 0" OFFSET

Note: (SV - Models with 48" Decks Only)

$251.99

$

Usually ships in 2-12 days

0

13

Ferris 5023369X2

TIRE, 22 X 11.00-10, 4 PLY

Note: (SV - Models with 48" Decks Only)

$

$

Currently unavailable

14

Ferris 5103610

TIRE ASM, 20X8.00-10, 4 BOLT
(Superseded to 5103610FS)

Note: (Models with 44" Decks Only)

$207.99

$

Usually ships in 2-12 days

0

15

Ferris 5101661X1

WHEEL, 10 X 7, 4/4 BC, 1.12" POS OFFSET

Note: (SV - Models with 44" Decks Only)

$201.99

$

Usually ships in 2-12 days

0

16

Ferris 5101293X1

TIRE, 20 X 8.00-10 NHS, 4 PR TURF MASTER

Note: (SV - Models with 44" Decks Only)

$

$

Currently unavailable
