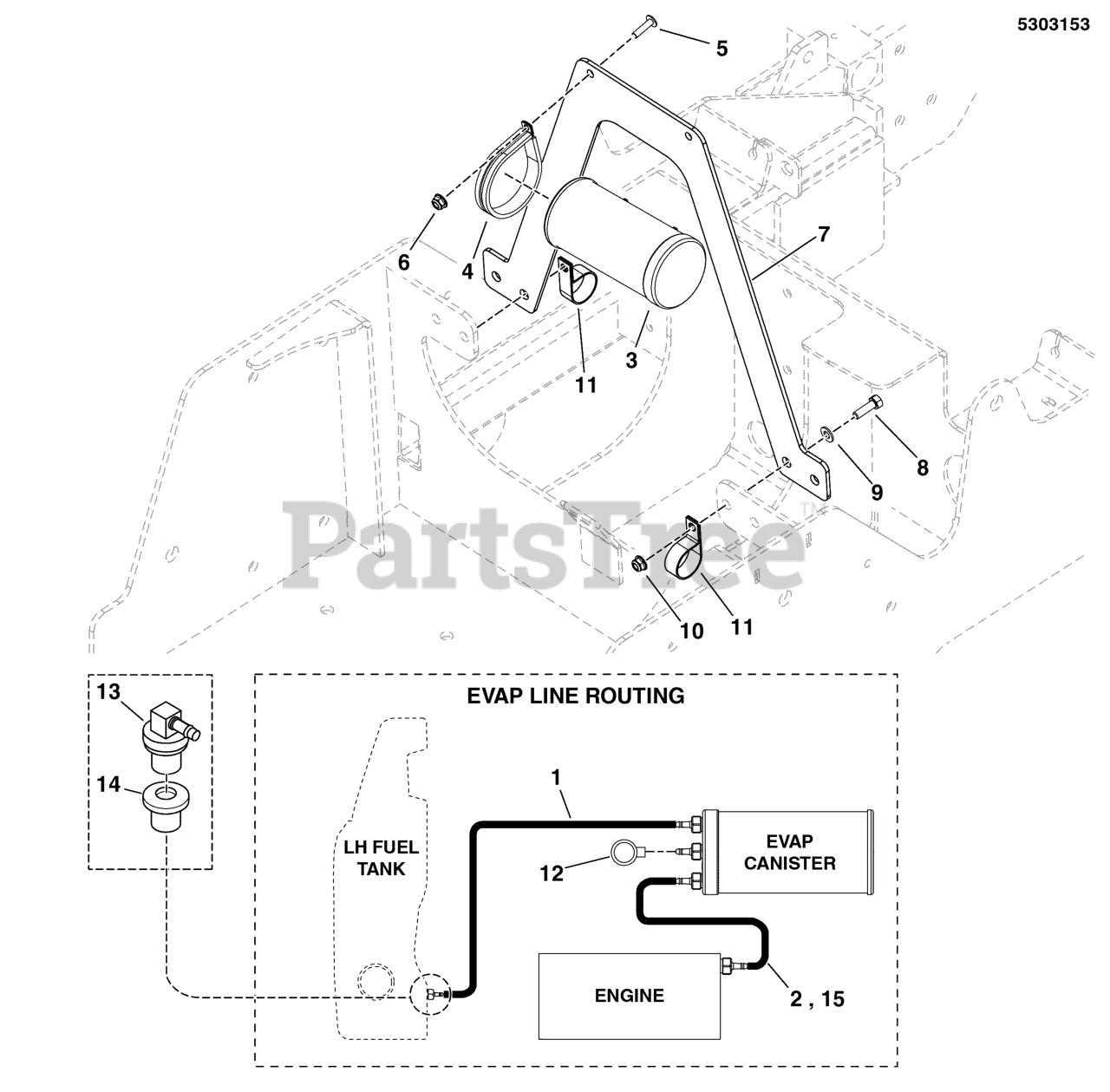

IS 600Z (5901213) - Ferris IS600Z Series 48" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge Evap Canister Group - CAL Models (S/N: All); Other Models (S/N: 2016816349 & Below) Parts Diagram

IS600Z Series 48" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge

Evap Canister Group - CAL Models (S/N: All); Other Models (S/N: 2016816349 & Below) Parts Diagram

  • Title

1

Ferris 7700552X23

HOSE, VAPOR, 5MM ID, 23.00 LG
(Superseded to 7700552X23FS)

$7.99

$

Usually ships in 2-12 days

0

2

Ferris 7700552X33P5

HOSE, VAPOR, 5MM ID, 33.50 LG
(Superseded to 7700552X33P5YP)

Note: (Briggs & Stratton Models)

$9.99

$

Usually ships in 2-12 days

0

3

Ferris 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$217.99

$

Usually ships in 2-12 days

0

4

Ferris 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

5

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

7

Ferris 5410252A

PLATE, MOUNT, CANISTER, IS600 - BLK
(Superseded to 5410252AYP)

$14.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025558

CLAMP, TUBE & WIRING, 1.062 ID
(Superseded to 5025558YP)

Note: (Briggs & Stratton Models)

$4.99

$

Usually ships in 2-12 days

0

12

Ferris 1752800

DUST FILTER, CANISTER
(Superseded to 1752800YP)

Note: (SV)

$15.99

$

In Stock, only 1 left!

0

13

Ferris 770046

REMOTE VENT ASSEMBLY

Note: (SV)

$16.99

$

In Stock, only 1 left!

0

14

Ferris 209043

GROMMET
(Superseded to 799624)

Note: (SV)

$8.99

$

In Stock, Qty 16

0

15

Ferris 7700552X31

HOSE, VAPOR, 5MM ID, 31.00 LG
(Superseded to 7700552X32YP)

Note: (Kawasaki Models)

$9.99

$

In Stock, only 1 left!

0
