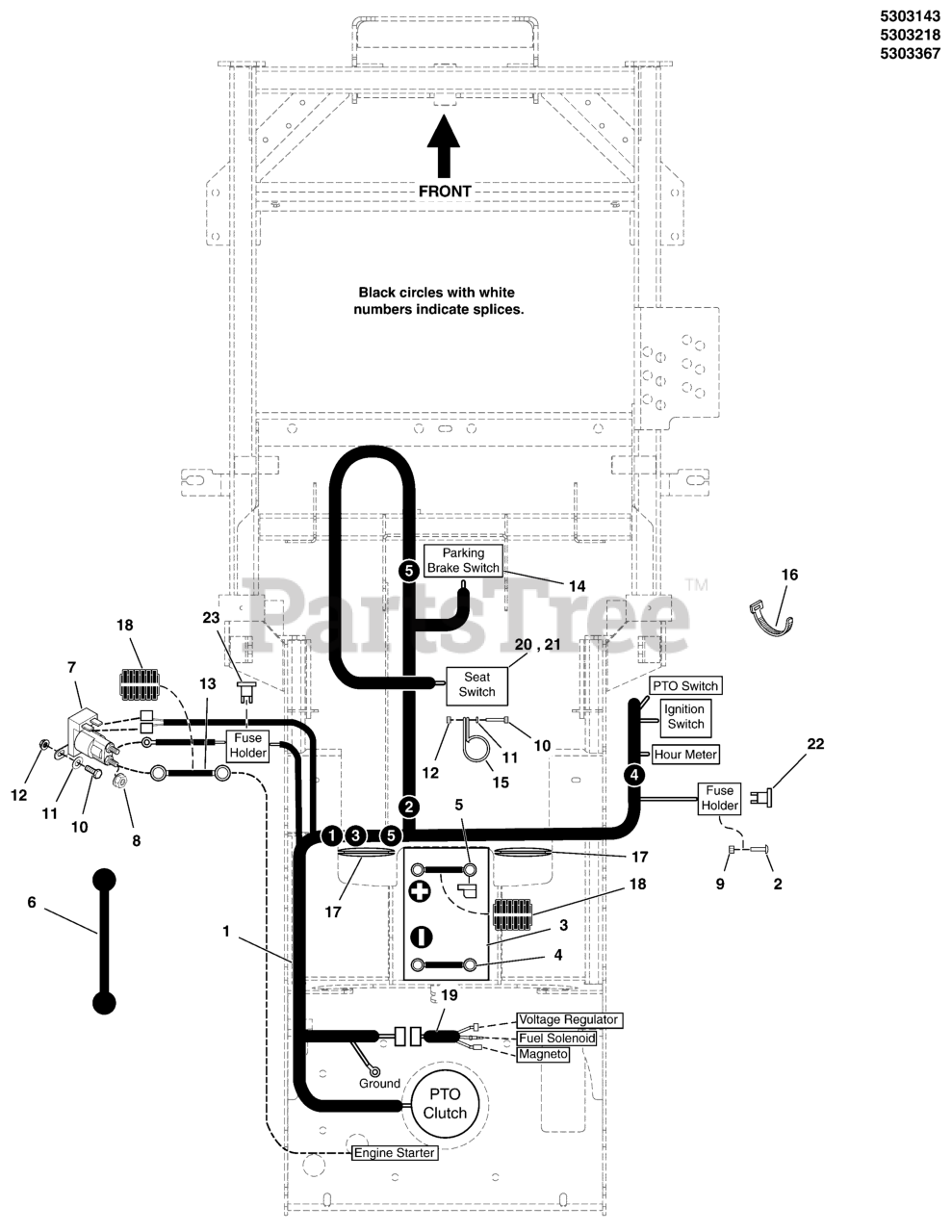

IS 600Z (5901213) - Ferris IS600Z Series 48" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge Electrical Group - S/N: 2017612395 - 2017954955 Parts Diagram

IS600Z Series 48" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge

Electrical Group - S/N: 2017612395 - 2017954955 Parts Diagram

  • Title

1

Ferris 5416016

WIRE HARNESS, MAIN, SM, ZTR

$176.99

$

Usually ships in 2-12 days

0

2

Ferris 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

3

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

4

Ferris 5047690

BATTERY CABLE, NEG, 14, 5/16-13/32
(Superseded to 5047690SM)

$16.99

$

Usually ships in 2-12 days

0

5

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

6

Ferris 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

7

Ferris 1755382

SOLENOID, STD-BRACKET, 2-SPADE
(Superseded to 1755382FS)

$27.99

$

Usually ships in 2-12 days

0

8

Ferris 80003921

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

9

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5023488

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5023488SM)

$27.99

$

Usually ships in 2-12 days

0

14

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

15

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5021030

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

Note: (Secures wire harness to wire carrier rod).

$2.99

$

In Stock, only 3 left!

0

17

Ferris 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

18

Ferris 5050927X18

WIRE LOOM, 3/8 ID X 18 IN

$

$

Currently unavailable

19

Ferris 5104811

WIRE HARNESS, JUMPER, KAWI
(Superseded to 5104811YP)

$18.99

$

Usually ships in 2-12 days

0

20

Ferris 5100540

SWITCH, NC, W/ BOLT-IN BASE
(Superseded to 5100540YP)

Note: (SV)

$32.99

$

In Stock, only 1 left!

0

21

Ferris 5100541

SWITCH, NC, W/ TWIST-IN BASE

Note: (SV)

$29.99

$

Usually ships in 2-12 days

0

22

Ferris 5101935

FUSE, ATO-15 (15 AMP)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5021603

FUSE, ATO-20 (20 AMP)
(Superseded to 5021603SM)

Note: (SV)

$4.99

$

In Stock, only 2 left!

0
