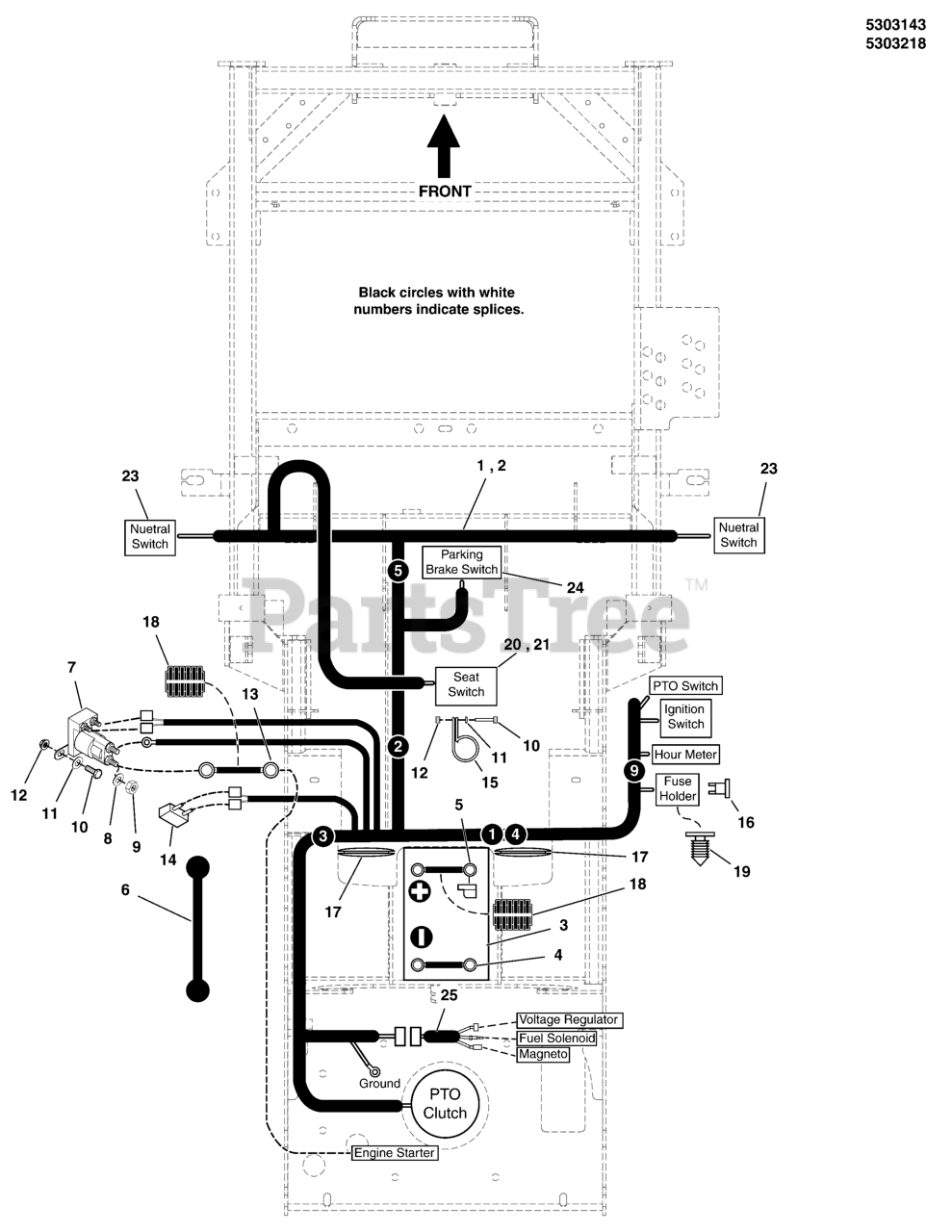

IS 600Z (5901213) - Ferris IS600Z Series 48" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge Electrical Group - S/N: 2017612394 & Below Parts Diagram

IS600Z Series 48" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge

Electrical Group - S/N: 2017612394 & Below Parts Diagram

  • Title

1

Ferris 5410289

WIRE HARNESS, C TURF,WARNER, IS600/IS700

Note: (B&S Engines -S/N: All; Kawasaki Engines - S/N: 2017301893 & Above)

$420.99

$

Usually ships in 2-12 days

0

2

USE 5410289 & 5104811

Note: (Kawasaki Engines S/N: 2017301892 & Below)

$

$

Not available

3

BATTERY, WET (BCIU1, 340 CCA)

$

$

Not available

4

Ferris 5047690

BATTERY CABLE, NEGATIVE, 14
(Superseded to 5047690SM)

$16.99

$

Usually ships in 2-12 days

0

5

Ferris 5021405

BATTERY CABLE, POSITIVE, 22
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

6

Ferris 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

7

Ferris 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

8

Ferris 5023217

WASHER, 5/16 LIGHT LOCK
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5023488

BATTERY CABLE, POSITIVE, 22
(Superseded to 5023488SM)

$27.99

$

Usually ships in 2-12 days

0

14

Ferris 1665238

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 20+

0

15

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5101935

FUSE, ATO 15 AMP
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

18

Ferris 5050927X18

WIRE LOOM, 3/8 ID X 18 IN

$

$

Currently unavailable

19

Ferris 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

20

Ferris 5100540

SWITCH, NC, W/ BOLT-IN BASE
(Superseded to 5100540YP)

Note: (SV)

$32.99

$

In Stock, only 1 left!

0

21

Ferris 5100541

SWITCH, NC, W/ TWIST-IN BASE

Note: (SV)

$29.99

$

Usually ships in 2-12 days

0

22

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

Note: (Secures wire harness to wire carrier rod).

$2.99

$

In Stock, only 3 left!

0

23

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

24

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

25

Ferris 5104811

WIRE HARNESS, JUMPER, KAWI
(Superseded to 5104811YP)

Note: (Kawasaki Engines S/N: 2017301893 & Above)

$18.99

$

Usually ships in 2-12 days

0
