IS 600Z (5901212) - Ferris IS600Z Series 44" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge Rear Suspension Group Parts Diagram

IS600Z Series 44" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge

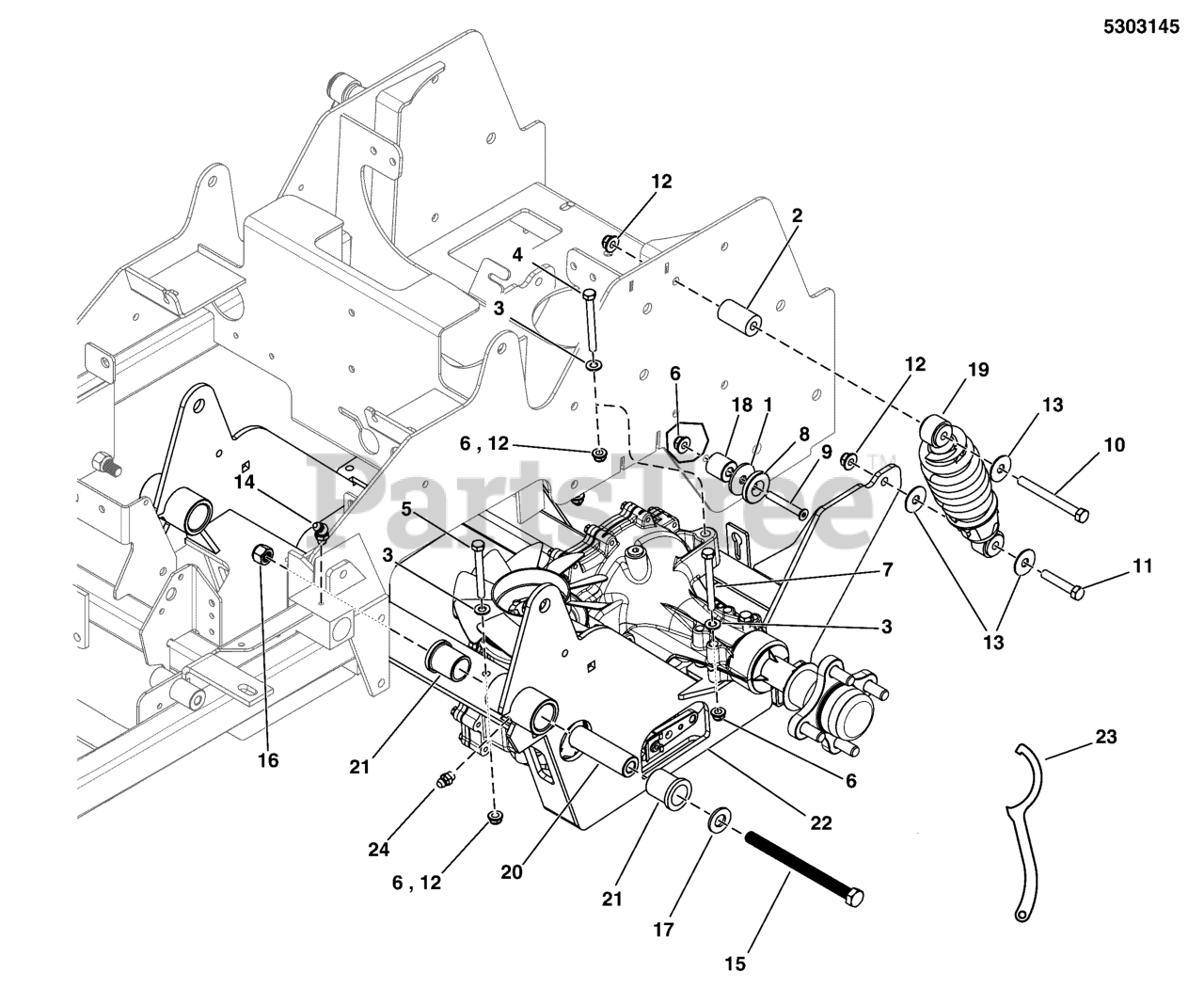

Rear Suspension Group Parts Diagram

  • Title

1

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

2

Ferris 5100896

SPACER, .390 X 1.00 X 1.00, CZ
(Superseded to 5100896SM)

$8.49

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

Note: (QTY: 8 - S/N: 2016905168 & Below)

$

$

Currently unavailable

3

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (S/N: 2016905169 & Above)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025011X20

BOLT, 5/16-18 X 2-1/2 GD5 YZ
(Superseded to 5025011X20FS)

Note: (S/N: 2016905168 & Below)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

Note: (S/N: 2016905169 & Above)

$2.99

$

In Stock, only 3 left!

0

5

Ferris 5025011X22

BOLT, 5/16-18 X 2-3/4, GD 5, YZ
(Superseded to 5025011X22YP)

Note: (S/N: 2016905168 & Below)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

Note: (S/N: 2016905169 & Above)

$4.49

$

In Stock, only 3 left!

0

6

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (QTY: 10 - S/N: 2016905168 & Below)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025011X24

BOLT, 5/16-18 X 3 GD5 YZ
(Superseded to 5025011X24SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5102701

SPACER, .34 X 1.54 X .25 - UHMW
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025303X12

SCREW, 5/16-18X1.5, FLAT HD SOC, CZ

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (QTY: 8 - S/N: 2016905168 & Below)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

14

Ferris 5020020

GREASE FITTING, 45 DEGREE
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5025488X52

BOLT, 1/2-13 X 6-1/2 GD8, YZ
(Superseded to 5025488X52YP)

$8.49

$

Usually ships in 2-12 days

0

16

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

17

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

18

Ferris 5046860

SPACER, .39 X 1.00 X .50
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

19

Ferris 5103624

SHOCK ABSORBER, IS600
(Superseded to 5103624YP)

$219.99

$

In Stock, only 2 left!

0

20

Ferris 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

21

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

22

Ferris 84007761

CRADLE, Suspension

$1077.99

$

Usually ships in 2-12 days

0

23

Ferris 5022853

WRENCH, SPANNER, CZ
(Superseded to 5022853SM)

$15.99

$

Usually ships in 2-12 days

0

24

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0
