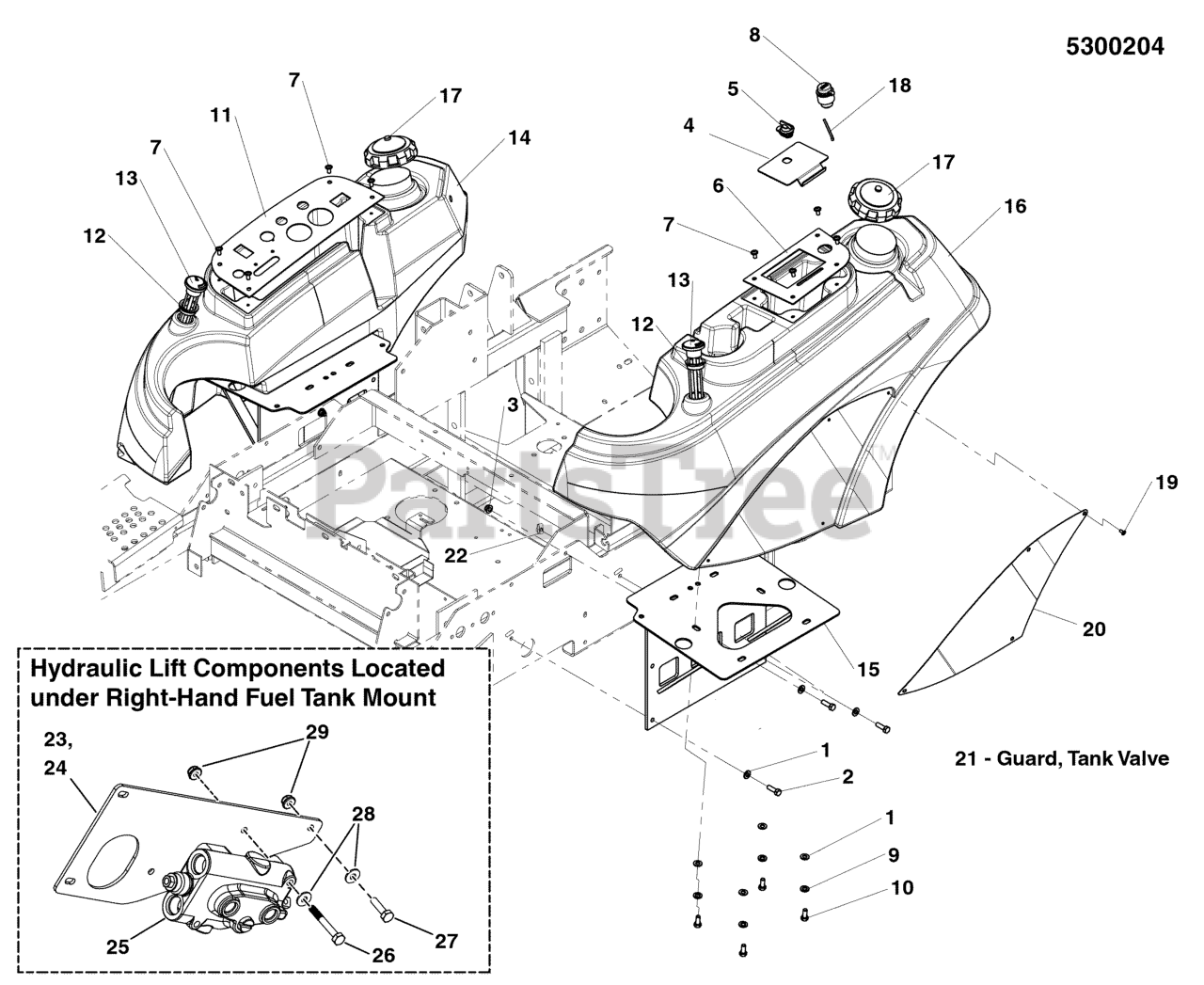

IS 5100Z (5901283) - Ferris IS5100Z Series 72" Zero-Turn Mower, 33hp Caterpillar Diesel, Rear-Discharge Fuel Tank & Mount Group Parts Diagram

IS5100Z Series 72" Zero-Turn Mower, 33hp Caterpillar Diesel, Rear-Discharge

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

2

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

3

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5061406A

COVER, CONTROL PANEL
(Superseded to 5421824AAFS)

$37.99

$

Usually ships in 2-12 days

0

5

Ferris 5023395

LATCH, CONTROL PANEL

$33.99

$

Usually ships in 2-12 days

0

6

Ferris 5061310A

PANEL, CONTROL - LH
(Superseded to 5421826AAFS)

$49.99

$

Usually ships in 2-12 days

0

7

Ferris 5025299X4

SCREW, ALLEN HEAD, 1/4-20X1/2
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

8

Ferris 5100016

POWER, OUTLET - 12 VOLT
(Superseded to 5100016FS)

$29.99

$

Usually ships in 2-12 days

0

9

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

11

CONTROL PANEL

Note: (See Instrument Panel Group)

$

$

Not available

12

Ferris 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

$6.99

$

In Stock, Qty 5

0

13

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

14

Ferris 5061298

TANK, FUEL, DIESEL, RH

$586.99

$

Usually ships in 2-12 days

0

15

Ferris 5407840B

WELD, FUEL TANK MOUNT

$136.99

$

Usually ships in 2-12 days

0

16

Ferris 5061299

TANK, FUEL, DIESEL, LH

$586.99

$

Usually ships in 2-12 days

0

17

Ferris 5104414

FUEL CAP, 3.5", NON VENTED, DIESEL (GRN)
(Superseded to 5104414FS)

$29.99

$

Usually ships in 2-12 days

0

18

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

Note: (Installed with head on the bottom)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5025386

SCREW, Allen Head, #10-24 x 3/8"
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

20

Ferris 5061301B

PLATE, BADGE, IS4500Z
(Superseded to 5061301BFS)

$40.99

$

Usually ships in 2-12 days

0

21

Ferris 5047993B

GUARD, TANK VALVE

Note: (Not illustrated.)

$13.99

$

Usually ships in 2-12 days

0

22

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

23

Ferris 5407596B

BAR, SOLENOID MOUNT - RED

Note: (S/N: 2016098450 & Below)

$

$

Currently unavailable

24

Ferris 5410426B

PLATE, VALVE MOUNT, IS5100Z - RED

Note: (S/N: 2016098451 & Above)

$10.99

$

Usually ships in 2-12 days

0

25

HYDRAULIC VALVE

Note: (See Hydraulic Group)

$

$

Not available

26

Ferris 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$2.99

$

Usually ships in 2-12 days

0

27

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

28

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

29

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+
