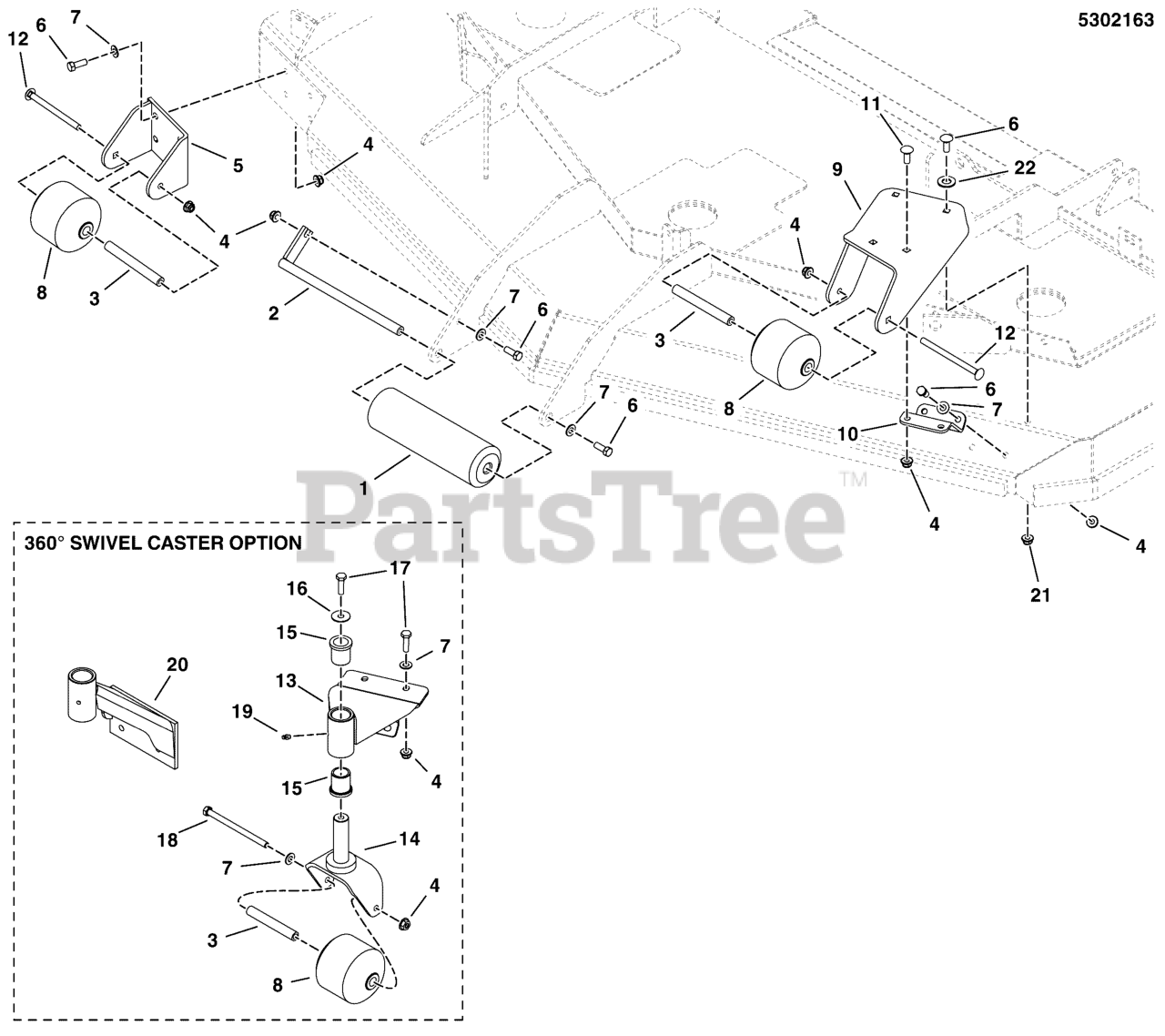

IS 5100Z (5901013) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel 61" Mower Deck - Rollers & Casters Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

61" Mower Deck - Rollers & Casters Parts Diagram

  • Title
1

Ferris 5020785

ROLLER, DECK
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 20+

0

2

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

$46.99

$

In Stock, only 2 left!

0

3

Ferris 5101971

SPACER, .38 X .63 X 4.31
(Superseded to 5101971YP)

$12.99

$

In Stock, Qty 11

0

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5409705B

BRACKET, ANTI-SCALP - RED
(Superseded to 5409705BFS)

$49.99

$

Usually ships in 2-12 days

0

6

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

7

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5022060

ROLLER, SMALL
(Superseded to 5022060SM)

$44.99

$

In Stock, Qty 11

0

9

Ferris 5407765B

WELD, ANTI-SCALP BRACKET
(Superseded to 5407765BFS)

$92.99

$

Usually ships in 2-12 days

0

10

Ferris 5407764B

PLATE, ANTI-SCALP SUPPORT - RED
(Superseded to 5407764BFS)

$38.99

$

Usually ships in 2-12 days

0

11

Ferris 1931350

BOLT, RD HD SH SQ NK 3/8- 16X1.000 G5 BL
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

12

Ferris 5025146X44

BOLT, 3/8-16 X 5-1/2, CARRIAGE
(Superseded to 5025146X44YP)

$7.99

$

In Stock, only 2 left!

0

13

Ferris 5408457B

Swivel Caster Bracket

$148.99

$

Usually ships in 2-12 days

0

14

Ferris 5405009B

Caster Yoke
(Superseded to 5405009BFS)

$84.99

$

Usually ships in 2-12 days

0

15

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

16

Ferris 5100548

Washer, .390 X 1.50 X .109
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025013X44

BOLT, 3/8-16 X 5-1/2" GD5 CZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

19

Ferris 5020095

Grease Fitting, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

20

Ferris 5404876B

Anti-Scalp Caster Bracket
(Superseded to 5404876BFS)

$99.99

$

In Stock, only 2 left!

0

21

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

22

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0
