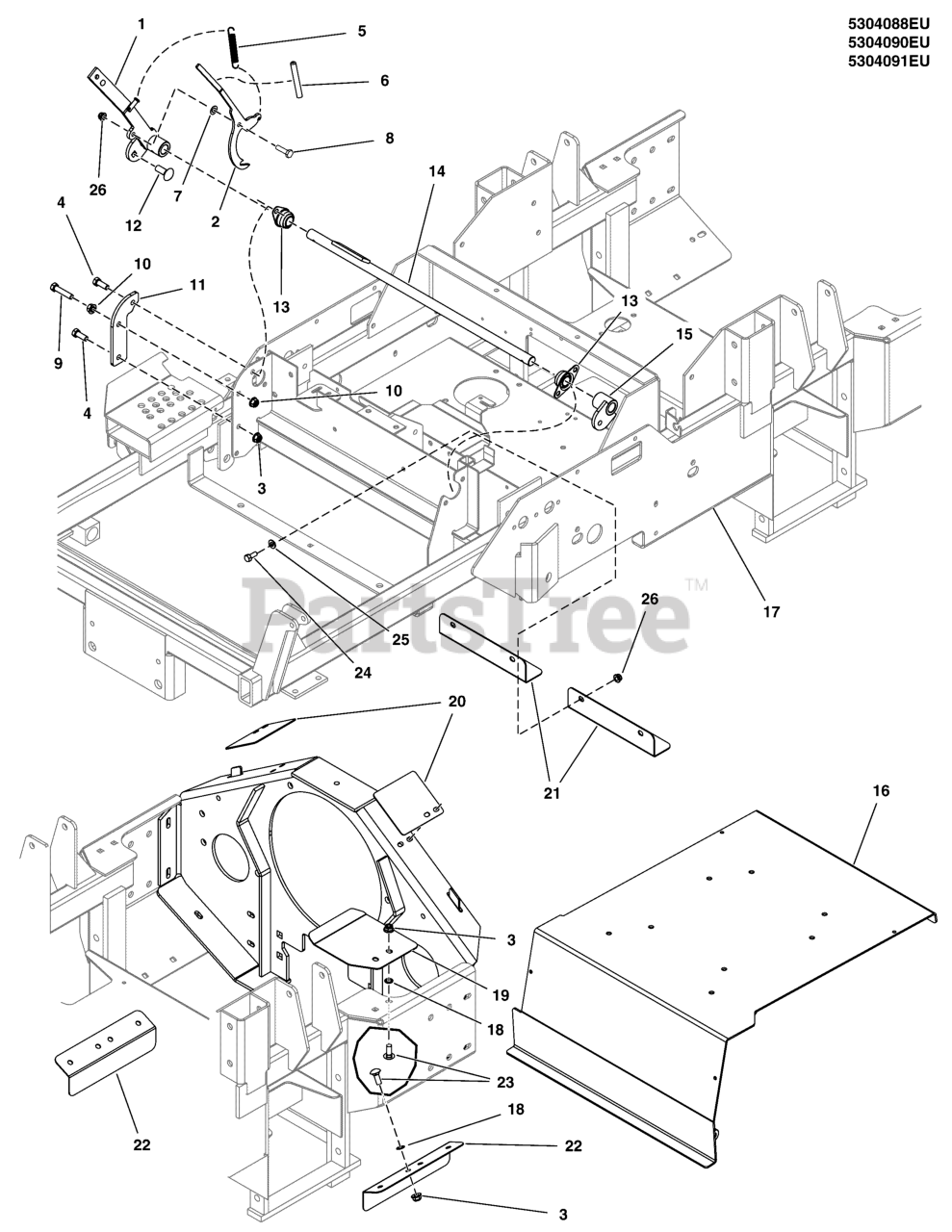

IS 5100Z (5900996) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel, Rear-Discharge CE Guarding - Frame, Parking Brake & Seat Plate Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel, Rear-Discharge

CE Guarding - Frame, Parking Brake & Seat Plate Parts Diagram

  • Title

1

Ferris 5413698B

WELD, HANDLE, BRAKE, 5100 - EU - RED

$

$

Currently unavailable

2

Ferris 5413704B

LEVER, BRAKE, 5100 - EU - RED

$

$

Currently unavailable

3

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

5

Ferris 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

6

Ferris 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

7

Ferris 5023202

WASHER,WAVE,M10
(Superseded to 5023202SM)

$5.49

$

Usually ships in 2-12 days

0

8

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

11

Ferris 5413705B

PLATE, SUPPORT, BRAKE, IS5100 - EU - RED

$

$

Currently unavailable

12

Ferris 80004497

BOLT,3/8-16X1.000,RND HD CRRG,ZINC/CLEAR
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

13

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

14

Ferris 5400739B

WELD, SHAFT BRAKE LEVER - RED
(Superseded to 5400739AAFS)

$31.99

$

Usually ships in 2-12 days

0

15

Ferris 5045618

PIVOT, LINKAGE MOUNT WELDMENT - BLK
(Superseded to 5045618CSM)

$50.99

$

Usually ships in 2-12 days

0

16

Ferris 5413703B

WELD, SEAT PLATE, IS5100Z - EU

$

$

Currently unavailable

17

WELD, MAIN FRAME, IS5100 EU - RED

$

$

Not available

18

Ferris 5025472

3/8 PUSHNUT BOLT RETAINER

$

$

Currently unavailable

19

Ferris 5413433B

PLATE, BELT GUARD,ENGINE MOUNT,TOP - RED

$

$

Currently unavailable

20

Ferris 5413434B

PLATE, FLY WHEEL GUARD, PUMP PLATE - RED

$

$

Currently unavailable

21

Ferris 5413431B

PLATE, PULLEY GUARD, CONTROL MOUNT - RED

$

$

Currently unavailable

22

Ferris 5413432B

PLATE, BELT GUARD,ENGINE MOUNT,BT - RED

$

$

Currently unavailable

23

Ferris 80004566

BOLT,3/8-16X1.00,RD SH SQ NK,GR 5,ZC/CL
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

24

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

25

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

26

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
