IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

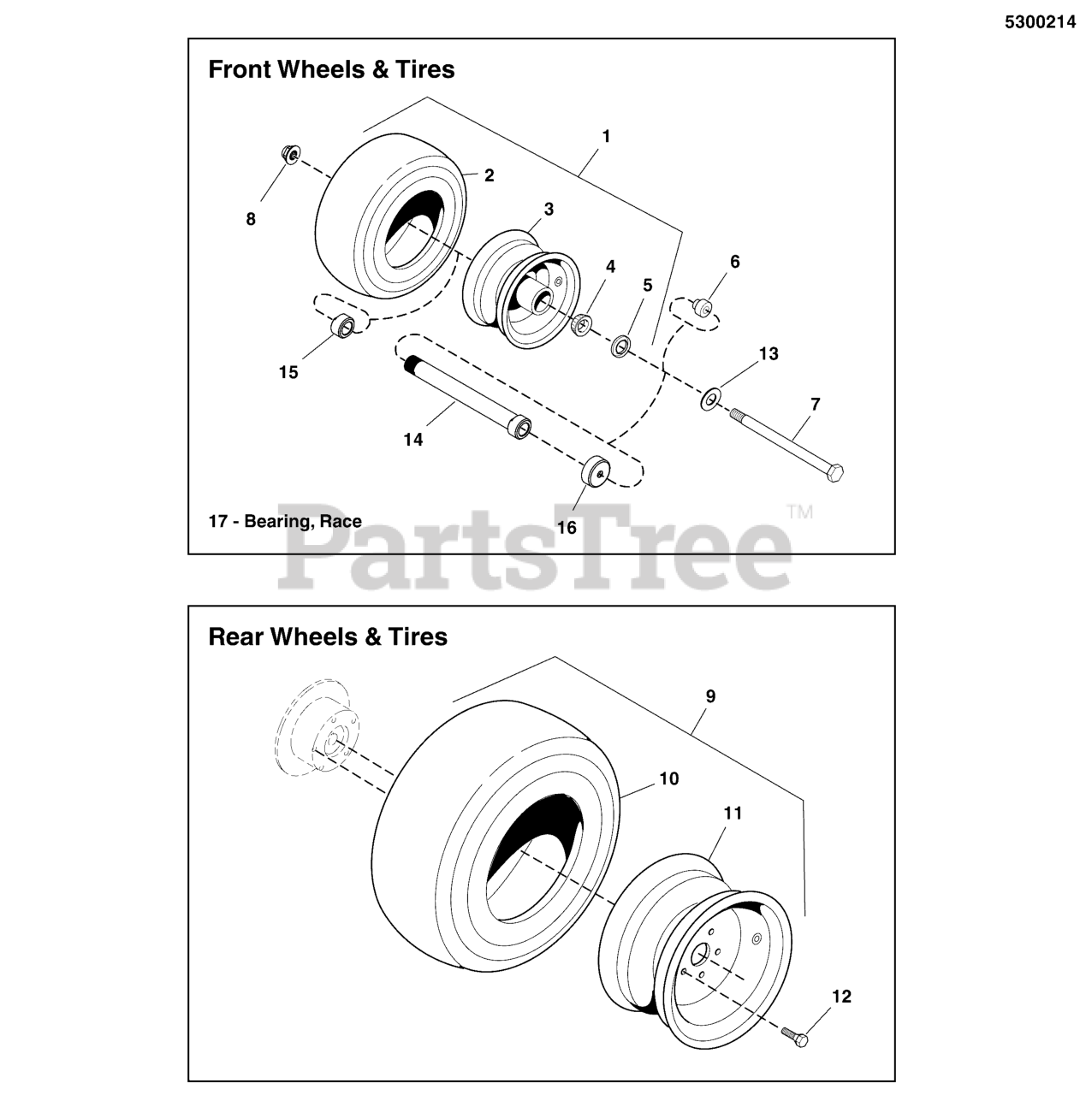

Wheel & Tire Group Parts Diagram

  • Title
1

Ferris 5023136

TIRE ASSM, 13 X 6.5 - 6, PNE / TB
(Superseded to 5023136YP)

Note: (Includes Ref No. 2 - 5 & 14)

$198.99

$

Usually ships in 2-12 days

0

2

Ferris 5022577

TIRE, RUBBER ONLY

$

$

Currently unavailable

3

Ferris 5023136X1

WHEEL ASSEMBLY, for 13 x 6.5 x 6 Tires, Complete
(Superseded to 5023136X1YP)

Note: (Includes Ref No. 4 & 5)

$195.99

$

In Stock, only 1 left!

0

4

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$12.99

$

In Stock, Qty 20+

0

5

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

6

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (S/N: 2016098450 & Below)(2 per tire)

$10.99

$

In Stock, Qty 20+

0

7

Ferris 5025017X72

BOLT, 1/2-13 X 9" GD5 YZ
(Superseded to 5025017X72YP)

$11.99

$

In Stock, Qty 19

0

8

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

9

Ferris 5101614

WHEEL/TIRE ASSY, 26X12-12, 4PLY K505

$450.99

$

Usually ships in 2-12 days

0

10

Ferris 84003893

TIRE, 26 X 12 - 12

$347.99

$

Usually ships in 2-12 days

0

11

Ferris 5101614X1

Wheel, 12 X 9.5", 5 Hole

$248.99

$

Usually ships in 2-12 days

0

12

Ferris 5022215

BOLT, WHEEL LUG, 1/2" X 1-5/8
(Superseded to 5022215SM)

$9.99

$

Usually ships in 2-12 days

0

13

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

14

Ferris 5103649

BEARING ADJUSTER, SPACER, 7.062 LG
(Superseded to 5103649YP)

Note: (S/N: 2016098451 & Above)(1 per tire)

$23.99

$

In Stock, Qty 18

0

15

Ferris 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

Note: (S/N: 2016098451 & Above)(1 per tire)

$16.99

$

In Stock, Qty 13

0

16

Ferris 5103594

DEBRIS COVER, CASTER WHEELS
(Superseded to 5103594YP)

Note: (S/N: 2016098451 & Above)(2 per tire)

$4.49

$

In Stock, Qty 13

0

17

Ferris 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (2 per tire - Not Shown)

$10.99

$

In Stock, Qty 20+
