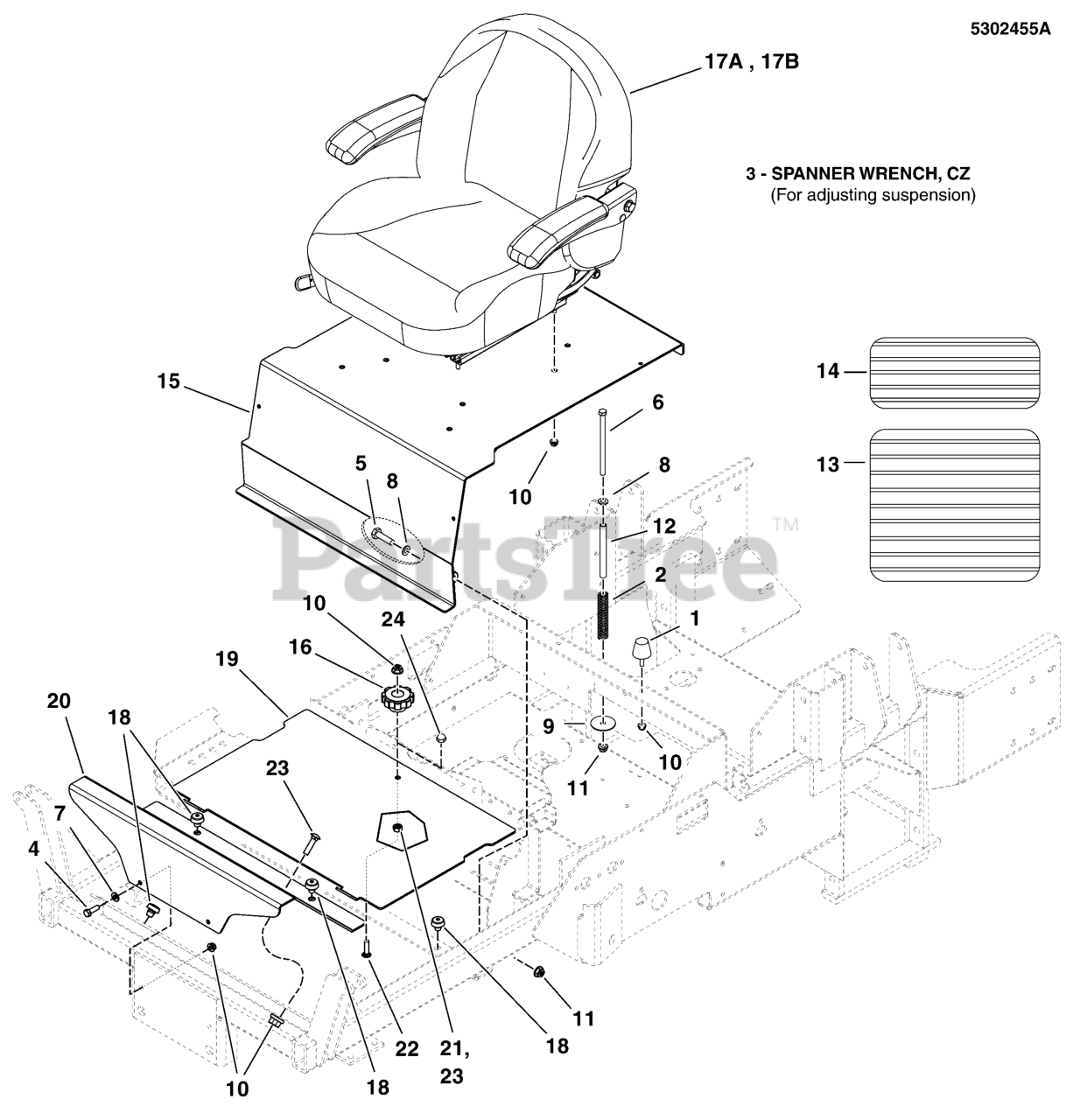

IS 5100Z (5900979) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel Seat Mount & Floor Group - S/N: 2016098451 & Above Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

Seat Mount & Floor Group - S/N: 2016098451 & Above Parts Diagram

  • Title

1

Ferris 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

2

Ferris 5022798

SPRING, COMP, .835 X.105 X4.26
(Superseded to 5022798SM)

$20.99

$

Usually ships in 2-12 days

0

3

Ferris 5022853

WRENCH, SPANNER, CZ
(Superseded to 5022853SM)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

5

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

6

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5047381

WASHER, .39 X 2.50 X .125
(Superseded to 5047381FS)

$11.99

$

Usually ships in 2-12 days

0

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Ferris 5046586

SPACER, .38 X .50 X 5.06, CZ
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

13

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

14

Ferris 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

15

Ferris 5407419B

WELD, SEAT PLATE IS5100Z - RED

$427.99

$

Usually ships in 2-12 days

0

16

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

Note: (USA Models)

$13.99

$

In Stock, only 1 left!

0

17A

Ferris 5103372

SEAT, IS3100Z / IS5100Z
(Superseded to 5105102)

Note: (S/N: 2017202281 & Below)

$912.99

$

Usually ships in 2-12 days

0

17B

Ferris 5104719

SEAT, HIGH BACK, SEAT INC
(Superseded to 5105102)

Note: (S/N: 2017202282 & Above)

$912.99

$

Usually ships in 2-12 days

0

18

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

19

Ferris 5410323B

PLATE, FLOOR REMOVABLE, IS5100Z - RED

$87.99

$

Usually ships in 2-12 days

0

20

Ferris 5410324B

PLATE, FLOOR RIGID, IS5100Z - RED

$74.99

$

Usually ships in 2-12 days

0

21

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

22

Ferris 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X10YP)

Note: (USA Models)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

Note: (Qty: 3 - CE Export Models)

$3.99

$

In Stock, Qty 9

0

24

Ferris 5025528

ACORN NUT, 5/16-18 S/S

Note: (CE Export Models)

$3.99

$

Usually ships in 2-12 days

0
