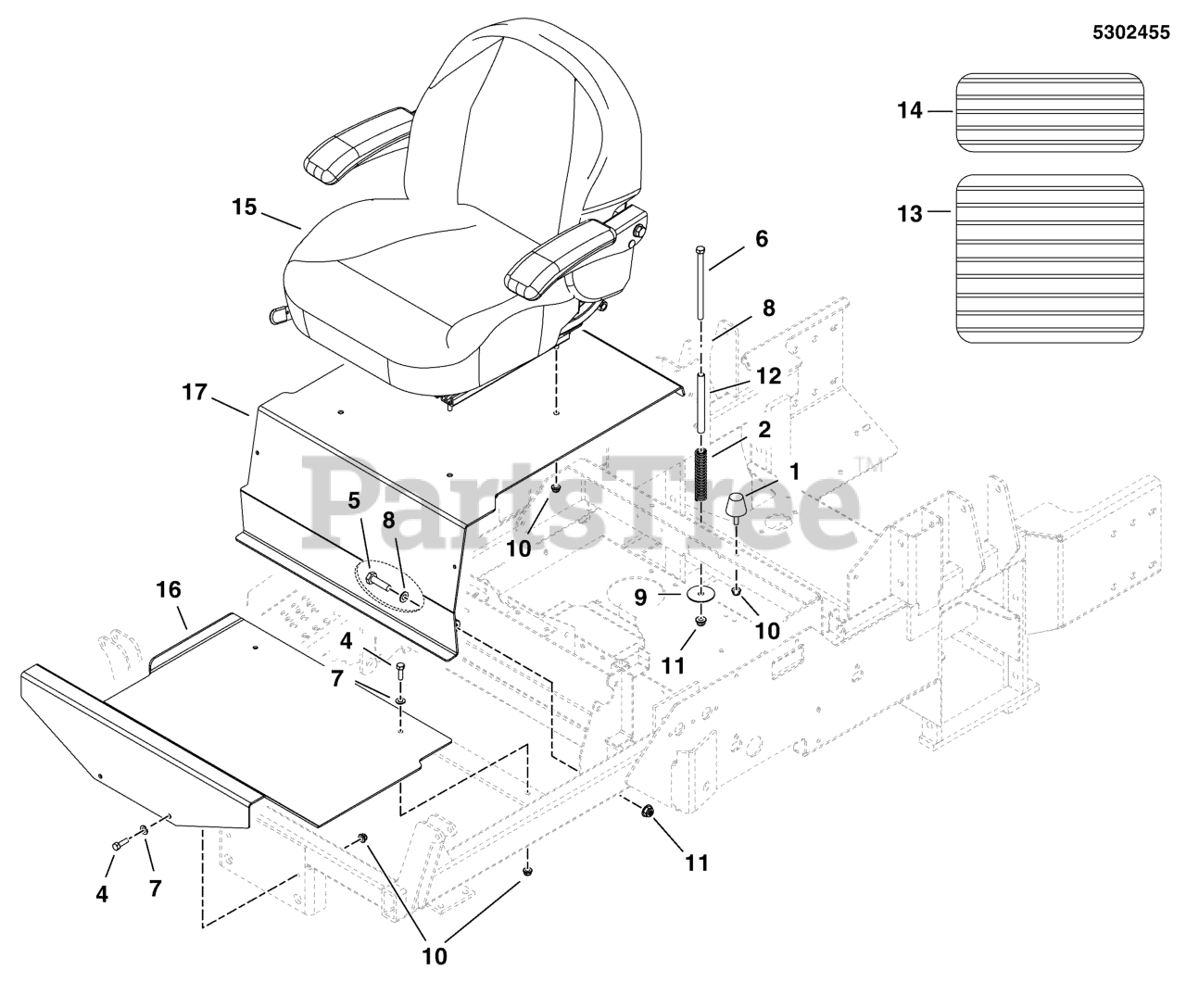

IS 5100Z (5900979) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel Seat Mount & Floor Group - S/N: 2016098450 & Below Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

Seat Mount & Floor Group - S/N: 2016098450 & Below Parts Diagram

  • Title

1

Ferris 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

2

Ferris 5022798

SPRING, COMP, .835 X.105 X4.26
(Superseded to 5022798SM)

$20.99

$

Usually ships in 2-12 days

0

3

Ferris 5022853

WRENCH, SPANNER, CZ
(Superseded to 5022853SM)

Note: (NOT SHOWN)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

5

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

6

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025326

WASHER, .39 X 2.00 X X .14
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Ferris 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

13

Ferris 5100999

SAFETY WALK, FLOOR PLATE, 17.13 X 11.50

$27.99

$

Usually ships in 2-12 days

0

14

Ferris 5101007

SAFETY WALK, FLOOR REST, 17.13 X 6.00
(Superseded to 5101007SM)

$32.99

$

Usually ships in 2-12 days

0

15

Ferris 5102760

SEAT, 1110EVC, COMPANION

Note: (S/N: 2015478453 & Below)

$

$

Currently unavailable

15

Ferris 5103372

SEAT, IS3100Z / IS5100Z
(Superseded to 5105102)

Note: (S/N: 2015478454 & Above)

$912.99

$

Usually ships in 2-12 days

0

16

Ferris 5407408B

PLATE, FLOOR DETAIL IS5100Z - RED

$239.99

$

Usually ships in 2-12 days

0

17

Ferris 5407419B

WELD, SEAT PLATE IS5100Z - RED

$427.99

$

Usually ships in 2-12 days

0

18

Ferris 5102760X1

SEAT BACK COVER
(Superseded to 5102760X1YP)

Note: (Not illustrated - S/N: 2015478453 & Below)

$145.99

$

Usually ships in 2-12 days

0

19

Ferris 5102760X2

SEAT CUSHION
(Superseded to 5102760X2YP)

Note: (Not illustrated - S/N: 2015478453 & Below)

$281.99

$

Usually ships in 2-12 days

0

20

Ferris 5102760X3

ARM REST, COMPANION
(Superseded to 5102760X3YP)

Note: (Not illustrated - S/N: 2015478453 & Below)

$257.99

$

Usually ships in 2-12 days

0

21

Ferris 5102760X4

SLIDE RAILS
(Superseded to 5102760X4YP)

Note: (Not illustrated - S/N: 2015478453 & Below)

$183.99

$

Usually ships in 2-12 days

0

22

Ferris 5103372X1

COVER, SEAT BACK, EVC, SEATS INC

Note: (Not illustrated - S/N: 2015478454 & Above)

$254.99

$

Usually ships in 2-12 days

0

23

Ferris 5103372X2

COVER, CUSHION, EVC, SEATS INC

Note: (Not illustrated - S/N: 2015478454 & Above)

$204.99

$

Usually ships in 2-12 days

0

24

Ferris 5103372X3

ARM REST ASSEMBLY

Note: (Not illustrated - S/N: 2015478454 & Above)

$302.99

$

Usually ships in 2-12 days

0

25

Ferris 5103372X4

ARM REST PAD

Note: (Not illustrated - S/N: 2015478454 & Above)

$87.99

$

Usually ships in 2-12 days

0
