IS 5100Z (5900979) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel Roll Bar & Seat Belt Group Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

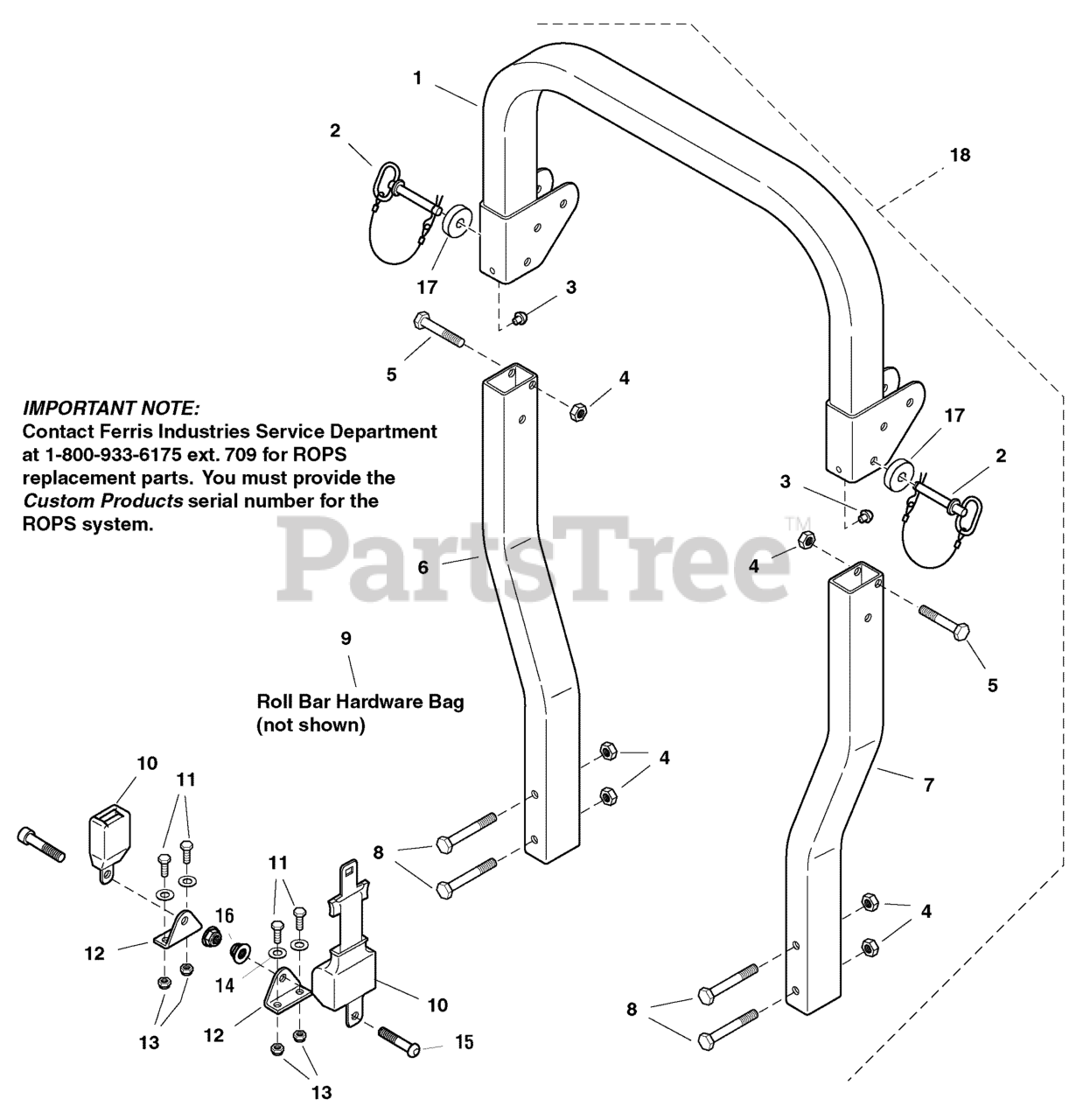

Roll Bar & Seat Belt Group Parts Diagram

  • Title

1

ROLL BAR TOP LOOP

Note: (See Drawing Note)

$

$

Not available

2

Ferris 5100079

PIN, Hitch, Black W/ Plastic Lanyard
(Superseded to 5100079SM)

$35.99

$

Usually ships in 2-12 days

0

3

Ferris 5100383

RUBBER BUMPER
(Superseded to 5100383SM)

$3.99

$

In Stock, only 2 left!

0

4

* NUT

$

$

Not available

5

* BOLT

$

$

Not available

6

ROLL BAR POST, RH

Note: (See Drawing Note)

$

$

Not available

7

ROLL BAR POST, LH

Note: (See Drawing Note)

$

$

Not available

8

* BOLT

$

$

Not available

9

Ferris 5100379

ROLL BAR HARDWARE BAG

Note: (Includes hitch pins)

$214.99

$

Usually ships in 2-12 days

0

10

Ferris 5100139

SEAT BELT ASSEMBLY, Standard
(Superseded to 5100139SM)

Note: (Includes mounting hardware)

$103.99

$

Usually ships in 2-12 days

0

10

Ferris 5100397

SEAT BELT ASSEMBLY, Extra Long

Note: (Includes mounting hardware)

$

$

Currently unavailable

11

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

12

Ferris 5401086B

MOUNT, SEAT BELT - RED

$4.99

$

Usually ships in 2-12 days

0

13

Ferris 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5100267

SCREW, 1/2-13 X 1" SHCS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

17

Ferris 5100545

RUBBER WASHER

$

$

Currently unavailable

18

ROPS (Call 1-800-933-6175 ext. 2193 if replacing a ROPS)

$

$

Not available
