IS 5100Z (5900979) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel Instrument Control Panel Group Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

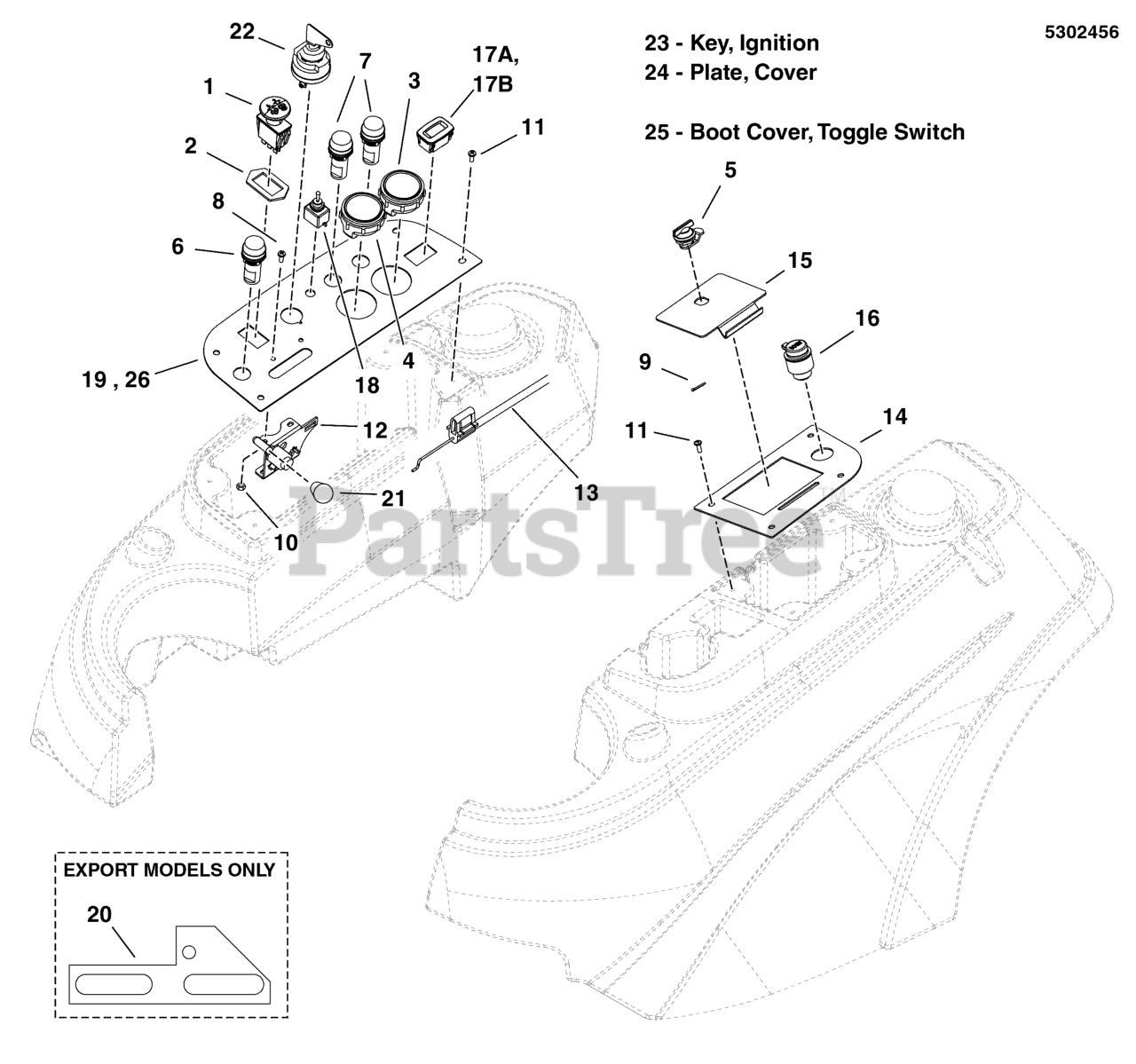

Instrument Control Panel Group Parts Diagram

  • Title

1

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

2

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5022387

VOLTMETER, UNLIT, 12V, W/ COLOR GRAPHIC

$53.99

$

Usually ships in 2-12 days

0

4

Ferris 5023393

GAUGE, WATER TEMPERATURE
(Superseded to 5023393YP)

$72.99

$

Usually ships in 2-12 days

0

5

Ferris 5023395

LATCH, CONTROL PANEL

$33.99

$

Usually ships in 2-12 days

0

6

Ferris 5023451

LIGHT, GLOW PLUG, 22MM AMBER
(Superseded to 5023451FS)

$48.99

$

Usually ships in 2-12 days

0

7

Ferris 5023452

LIGHT, WARNING, 22MM RED
(Superseded to 5023452FS)

$48.99

$

Usually ships in 2-12 days

0

8

Ferris 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

9

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 20+

0

12

Ferris 5046360

HANDLE, THROTTLE CONTROL

$55.99

$

In Stock, only 2 left!

0

13

Ferris 5046392

CABLE, THROTTLE CONTROL, 47.5

Note: (NOT SHOWN)

$23.99

$

Usually ships in 2-12 days

0

14

Ferris 5061310A

PANEL, CONTROL - LH
(Superseded to 5421826AAFS)

$49.99

$

Usually ships in 2-12 days

0

15

Ferris 5061406A

COVER, CONTROL PANEL
(Superseded to 5421824AAFS)

$37.99

$

Usually ships in 2-12 days

0

16

Ferris 5100016

POWER, OUTLET - 12 VOLT
(Superseded to 5100016FS)

$29.99

$

Usually ships in 2-12 days

0

17a

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & Above)(Refer to Note: *)

$

$

Not available

17b

Ferris 5102417

HOUR METER

Note: (S/N: 2015551937 & Below)

$64.99

$

Usually ships in 2-12 days

0

18

Ferris 5102943

SWITCH, TOGGLE

Note: (S/N: 2016098450 & Below)

$51.99

$

Usually ships in 2-12 days

0

19

Ferris 5407383A

CONTROL PANEL, IS5100Z RH - BLK

Note: (S/N: 2016098450 & Below)

$28.99

$

Usually ships in 2-12 days

0

20

PLATE, THROTTLE STOP

$

$

Not available

21

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

22

Ferris 5103148

SWITCH-IGNITION (COMPLETE)

$263.99

$

Usually ships in 2-12 days

0

23

Ferris 5103148X1

KEY, IGNITION

Note: (NOT SHOWN)

$67.99

$

Usually ships in 2-12 days

0

24

Ferris 5022883X3

PLATE, COVER

Note: (NOT SHOWN)

$35.99

$

Usually ships in 2-12 days

0

25

Ferris 5103236

BOOT COVER, TOGGLE SWITCH

Note: (S/N: 2016098450 & Below)

$22.99

$

Usually ships in 2-12 days

0

26

Ferris 5401006A

CONTROL PANEL, IS5000Z, RH - BLK

Note: (S/N: 2016098451 & Above)

$19.99

$

Usually ships in 2-12 days

0
