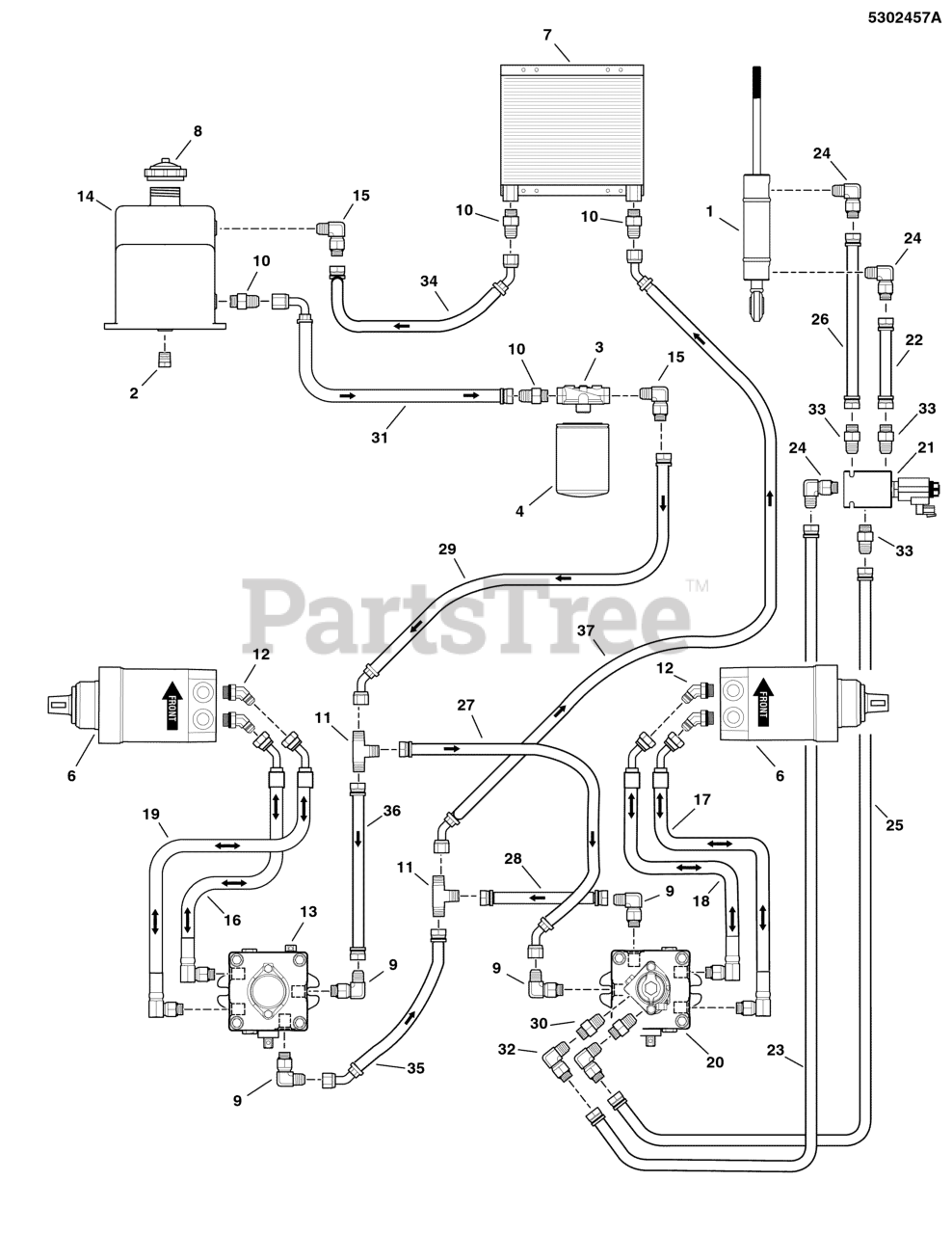

IS 5100Z (5900979) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel Hydraulic Group - S/N: 2015381237 - 2016098450 Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

Hydraulic Group - S/N: 2015381237 - 2016098450 Parts Diagram

  • Title

1

Ferris 5103353

CYL, HYD, 1.5 BORE X 5.5 STROKE
(Superseded to 5103353FS)

$604.99

$

Usually ships in 2-12 days

0

2

Ferris 5020986

PLUG, 1/2NPT, SQUARE HEAD
(Superseded to 5020986FS)

$32.99

$

Usually ships in 2-12 days

0

3

Ferris 5021356

FILTER HEAD
(Superseded to 5021356SM)

$61.99

$

Usually ships in 2-12 days

0

4

Ferris 5021357X1

FILTER, HYDRAULIC, SERVICE PART (PKG)

$31.99

$

Usually ships in 2-12 days

0

5

Ferris 5021397

GROMMET, 1-1/4
(Superseded to 5021397SM)

Note: (NOT SHOWN)

$6.49

$

Usually ships in 2-12 days

0

6

Ferris 5022368

WHEEL MOTOR-TF0405UB080AADD MB 25

$1481.99

$

Usually ships in 2-12 days

0

7

Ferris 5022377

OIL COOLER 1.5 X 8.5 X 11

$165.99

$

Usually ships in 2-12 days

0

8

Ferris 5022437

CAP, 2-1/2 VENTED
(Superseded to 5022437FS)

$39.99

$

Usually ships in 2-12 days

0

9

Ferris 5022599

FITTING, #8 JIC - #8 O-RING, 90 DEG.
(Superseded to 5022599SM)

$32.99

$

In Stock, only 1 left!

0

10

Ferris 5022601

FITTING, #8 JIC - 1/2 NPT, STRAIGHT
(Superseded to 5022601FS)

$8.99

$

Usually ships in 2-12 days

0

11

Ferris 5022604

FITTING T JIC #8
(Superseded to 5022604FS)

$29.99

$

Usually ships in 2-12 days

0

12

Ferris 5022709

FITTING, #8 JIC - #10 O-RING, 45 DEG.
(Superseded to 5022709SM)

$46.99

$

In Stock, only 2 left!

0

13

Ferris 5023402

PUMP, HYDROSTATIC - PW - 1ACC

$1365.99

$

Usually ships in 2-12 days

0

14

Ferris 5045872

HYDRAULIC RESERVIOR
(Superseded to 5045872FS)

$228.99

$

Usually ships in 2-12 days

0

15

Ferris 5100311

HYDRALIC FITTING, MALE ELBOW
(Superseded to 5100311FS)

$27.99

$

Usually ships in 2-12 days

0

16

REPLACE WITH HOSE # 5412801 & FITTING # 5022599

$

$

Not available

17

REPLACE WITH HOSE # 5412801 & FITTING # 5022599

$

$

Not available

18

REPLACE WITH HOSE # 5412800 & FITTING # 5022599

$

$

Not available

19

REPLACE WITH HOSE # 5412800 & FITTING # 5022599

$

$

Not available

20

Ferris 5102759

PUMP, DECK LIFT, PW-1DCC-QY1X-XXXX

$1363.99

$

Usually ships in 2-12 days

0

21

Ferris 5103310

VALVE, HYD, 4 WAY, 2 POSITION
(Superseded to 5103310FS)

$432.99

$

Usually ships in 2-12 days

0

22

Ferris 5409076

HOSE ASSEMBLY (20.5) LP, ST & ST END
(Superseded to 5409076FS)

$49.99

$

Usually ships in 2-12 days

0

23

Ferris 5407753

HOSE ASSEMBLY (36.5) LP, ST & ST ENDS
(Superseded to 5407753FS)

$65.99

$

In Stock, only 2 left!

0

24

Ferris 5102933

FITTING, 90DEG, #6 JIC TO #6 ORING MALE
(Superseded to 5102933FS)

$9.99

$

Usually ships in 2-12 days

0

25

Ferris 5102934

HOSE, ASM, 41.5", IS5100 DECK LIFT

$160.99

$

Usually ships in 2-12 days

0

26

Ferris 5103387

HOSE ASM, IS5100 DECK LIFT

$

$

Currently unavailable

27

Ferris 5401104

HOSE ASSEMBLY (7) LP, 4 ST & 45 ENDS

$72.99

$

Usually ships in 2-12 days

0

28

Ferris 5401103

HOSE ASSEMBLY (15) LP, ST & ST ENDS

$51.99

$

Usually ships in 2-12 days

0

29

Ferris 5401080

HOSE ASSEMBLY (24.5) LP, ST & 45 ENDS

$81.99

$

Usually ships in 2-12 days

0

30

Ferris 5102939

FITTING, STR, #6JIC TO #4 ORING, MALE
(Superseded to 5102939FS)

$4.99

$

Usually ships in 2-12 days

0

31

Ferris 5401079

HOSE ASSEMBLY (21.5) LP, ST & 90 ENDS

$67.99

$

Usually ships in 2-12 days

0

32

Ferris 5102944

FITTING, 90DEG, #6 JIC MALE-#6JIC SWIVEL
(Superseded to 5102944FS)

$7.99

$

Usually ships in 2-12 days

0

33

Ferris 5102966

FITTING, #6JIC-#6 ORING, STR. MALE-MALE
(Superseded to 5102966FS)

$3.99

$

Usually ships in 2-12 days

0

34

Ferris 5401078

HOSE ASSEMBLY (64) LP, ST & 45 ENDS

$160.99

$

Usually ships in 2-12 days

0

35

Ferris 5401075

HOSE ASSEMBLY (9) LP, ST & 45 ENDS

$69.99

$

Usually ships in 2-12 days

0

36

Ferris 5401076

HOSE ASSEMBLY (16.5) LP, ST & ST ENDS

$55.99

$

Usually ships in 2-12 days

0

37

Ferris 5401077

HOSE ASSEMBLY (64) LP, 45 & 45 ENDS

$177.99

$

Usually ships in 2-12 days

0

38

Ferris 5022042X2

KEY
(Superseded to 5022042X2SM)

Note: (Not illustrated)

$10.99

$

In Stock, only 1 left!

0

39

Ferris 5022042X3

NUT, CASTLE, 1-20
(Superseded to 5022042X3SM)

Note: (Not illustrated)

$34.99

$

In Stock, only 1 left!

0

40

Ferris 5025203X16

PIN, COTTER, 1/8 X 2
(Superseded to 5025203X16SM)

Note: (Not illustrated)

$3.99

$

Usually ships in 2-12 days

0
