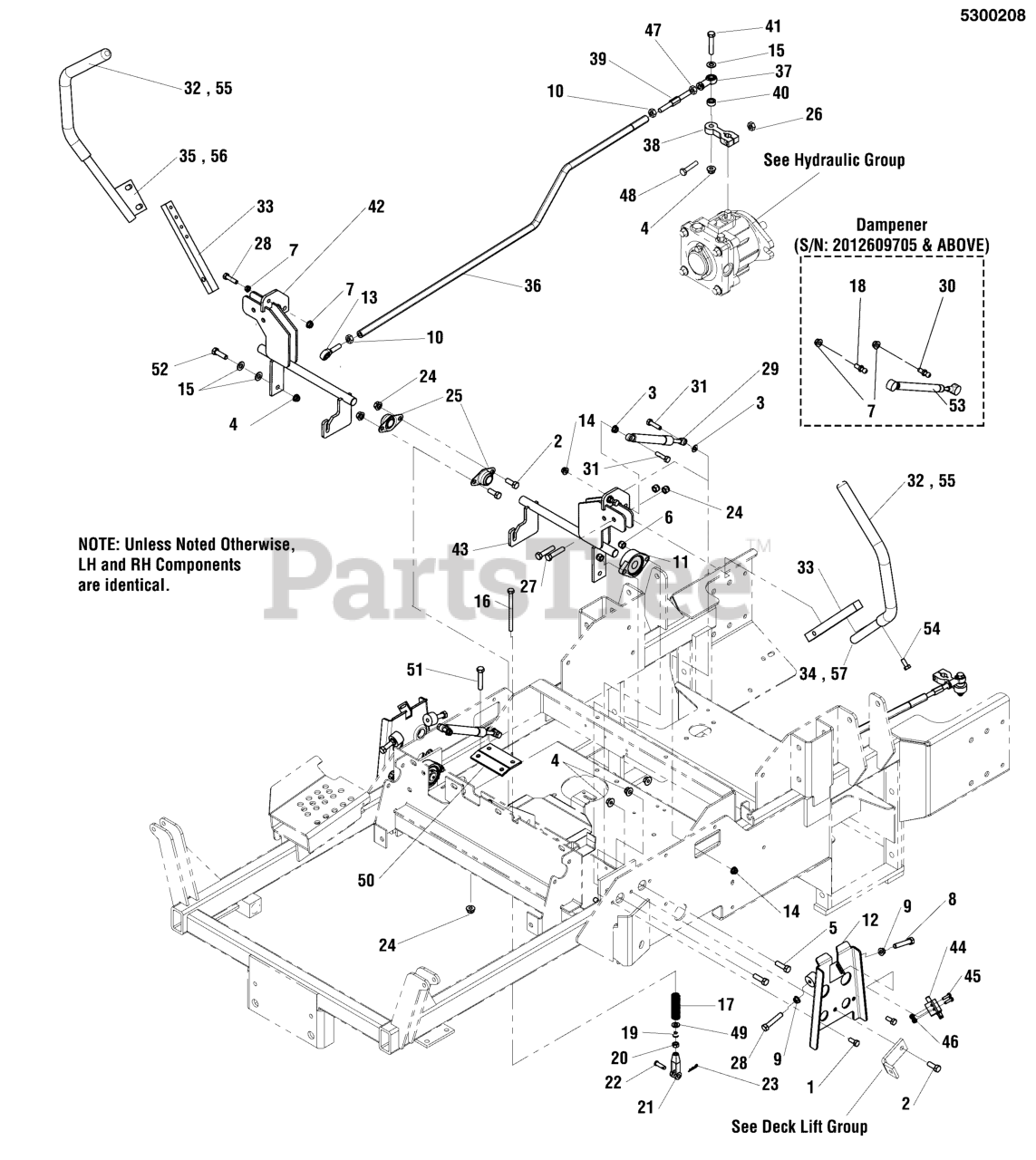

IS 5100Z (5900723) - Ferris IS5100Z Series Zero-Turn Mower, 33hp Caterpillar Diesel Motion Control Group Parts Diagram

IS5100Z Series Zero-Turn Mower, 33hp Caterpillar Diesel

Motion Control Group Parts Diagram

  • Title

1

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

2

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

3

Ferris 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

Note: (S/N: 2012609704 & BELOW)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025327

BOLT, 3/8-16 X 1-1/4 SHCS
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

7

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

8

Ferris 5025055X14

BOLT, 5/16-18 X 1-3/4 TFL, GD5 YZ
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

10

Ferris 5025317

NUT, 3/8-24 HEX, LH
(Superseded to 5025317FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

12

Ferris 5048531B

WELD,PLATE,NEUTRAL CONTROL
(Superseded to 5402402B)

$59.99

$

Usually ships in 2-12 days

0

13

Ferris 5021124

BALL JOINT, 3/8-24 MALE
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

14

Ferris 5025354

NUT, M8-1.25 NYLON LOCK, CZ
(Superseded to 5025354SM)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5047137

BOLT, 5/16-24 X 4.25" GD5 YZ

$

$

Currently unavailable

17

Ferris 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

18

Ferris 5101307

BALL STUD 10MM 5/16-18 X 3/4"
(Superseded to 5101307SM)

Note: (S/N: 2012609705 & ABOVE)

$5.49

$

Usually ships in 2-12 days

0

19

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

20

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

22

Ferris 5025213X8

PIN, CLEVIS, 5/16" X 1
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

23

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

24

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

25

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

26

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

27

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

28

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5022978

DAMPENER
(Superseded to 5103511YP)

Note: (S/N: 2012609704 & BELOW)

$62.99

$

In Stock, Qty 16

0

30

Ferris 5100941

BALL STUD 10MM 5/16-18 X 1/2"
(Superseded to 5100941SM)

Note: (S/N: 2012609705 & ABOVE)

$4.49

$

In Stock, Qty 12

0

31

Ferris 5025335

BOLT, M8-1.25 X 35MM, GD8.8
(Superseded to 5025335SM)

Note: (S/N: 2012609704 & BELOW)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5022068

GRIP, FOAM, 3/4" ID, 16" LONG
(Superseded to 5022068SM)

Note: (S/N: 2017501539 & Below)

$11.99

$

Usually ships in 2-12 days

0

33

Ferris 5103106A

MOUNT, CONTROL ARM - BLK
(Superseded to 5103106AYP)

Note: (S/N: 2015470928 & Above)(10.95" Total Length, 3 Adjustment Holes)

$54.99

$

Usually ships in 2-12 days

0

33

Ferris 5047004A

MOUNT, CONTROL ARM - BLK

Note: (S/N: 2015470927 & Below)(9.0" Total Length, 4 Adjustment Holes)

$

$

Currently unavailable

34

Ferris 5400911B

WELD, HANDLE MOTION CONTROL, LH - RED

Note: (S/N: 2017501539 & Below)

$35.99

$

Usually ships in 2-12 days

0

35

Ferris 5400912B

WELD, HANDLE MOTION CONTROL, RH - RED

Note: (S/N: 2017501539 & Below)

$35.99

$

Usually ships in 2-12 days

0

36

Ferris 5400712B

CONTROL ROD, IS5000Z
(Superseded to 5400712AA)

$136.99

$

Usually ships in 2-12 days

0

37

Ferris 5022392

ROD END, 3/8-24 LH FEMALE
(Superseded to 5022392FS)

$24.99

$

Usually ships in 2-12 days

0

38

Ferris 5045863

ARM, PUMP CONTROL (21 SERIES)
(Superseded to 5045863FS)

$69.99

$

Usually ships in 2-12 days

0

39

Ferris 5046534

LINK, ADJUSTABLE, SHORT
(Superseded to 5046534FS)

$45.99

$

Usually ships in 2-12 days

0

40

Ferris 5044933

SPACER, .39 X .75 X .38
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

41

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

42

Ferris 5400686B

WELD, CONTROL SHAFT - RH - RED

$61.99

$

Usually ships in 2-12 days

0

43

Ferris 5400685B

WELD, CONTROL SHAFT - LH - RED

$50.99

$

Usually ships in 2-12 days

0

44

Ferris 5021451

SWITCH, PLUNGER, N.O.
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

45

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND SLOTTED
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

46

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

47

Ferris 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

48

Ferris 5025010X14

BOLT, 1/4-20 X 1-3/4" GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

49

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

50

Ferris 5047401B

PLATE, RETURN TO NEUTRAL - RED

$

$

Currently unavailable

51

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

52

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

53

Ferris 5100940

DAMPENER, CONTROL
(Superseded to 5100940SM)

Note: (S/N: 2012609705 & ABOVE)

$55.99

$

In Stock, only 2 left!

0

54

Ferris 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 14

0

55

Ferris 5104722

GRIP, FOAM, 1" ID, 16" LONG
(Superseded to 5104722FS)

Note: (S/N: 2017501540 & Above)

$10.99

$

Usually ships in 2-12 days

0

56

Ferris 5415052A

WELD, HANDLE MOTION CNTRL, 15.1, 1.0 - RH - BLK

Note: (S/N: 2017501540 & Above)

$42.99

$

Usually ships in 2-12 days

0

57

Ferris 5415051A

WELD, HANDLE MOTION CNTRL, 15.1, 1.0 - LH - BLK

Note: (S/N: 2017501540 & Above)

$42.99

$

Usually ships in 2-12 days

0
