IS 5100Z (5900723) - Ferris IS5100Z Series Zero-Turn Mower, 33hp Caterpillar Diesel Instrument & Control Panel Group Parts Diagram

IS5100Z Series Zero-Turn Mower, 33hp Caterpillar Diesel

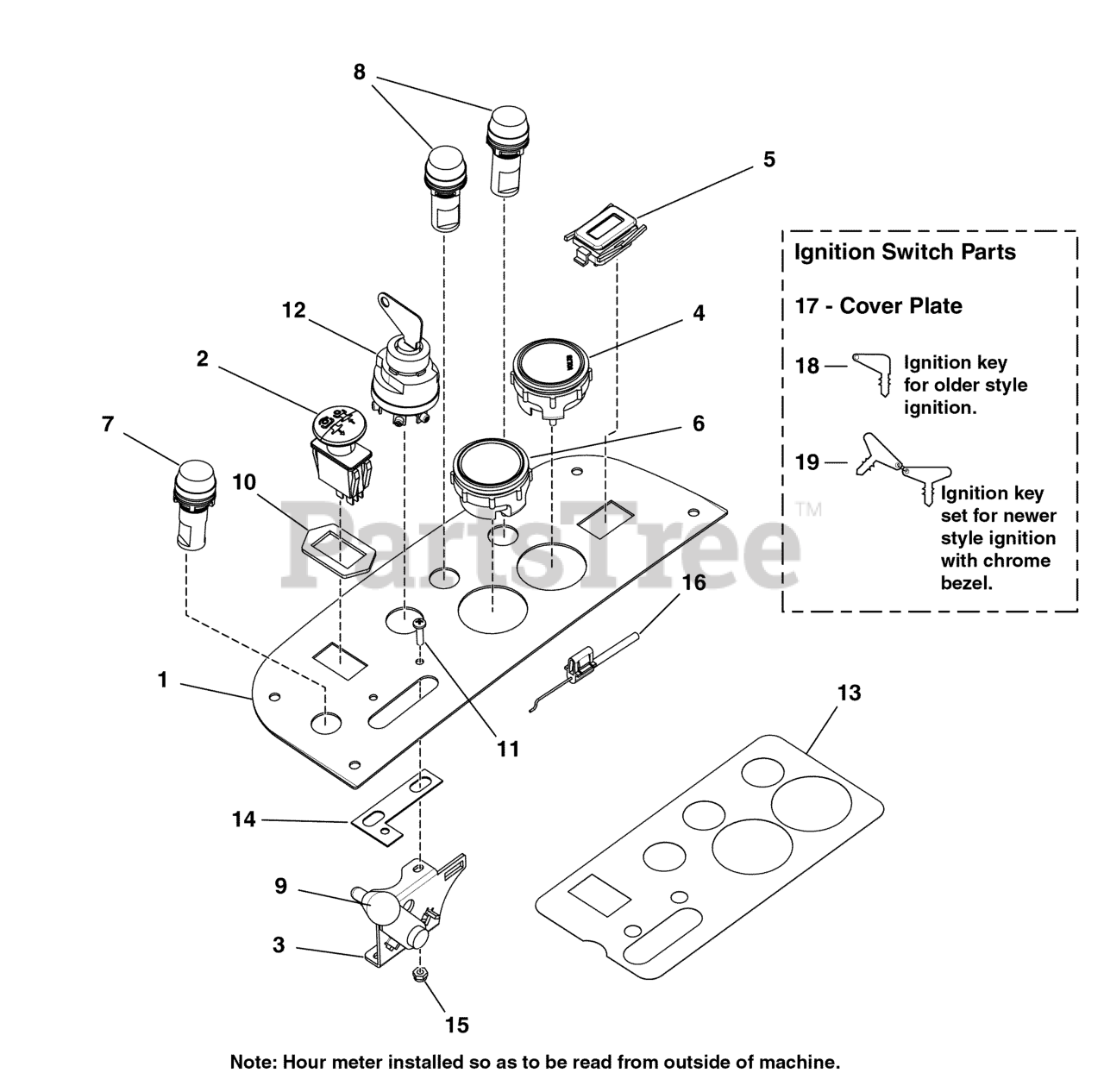

Instrument & Control Panel Group Parts Diagram

  • Title
1

Ferris 5401006A

CONTROL PANEL, IS5000Z RH - BLK

$19.99

$

Usually ships in 2-12 days

0

2

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

3

Ferris 5046360

HANDLE, THROTTLE CONTROL

Note: (with knob)

$55.99

$

In Stock, only 2 left!

0

4

Ferris 5022387

GUAGE, VOLTS

$53.99

$

Usually ships in 2-12 days

0

5

Ferris 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

6

Ferris 5023393

GAUGE, WATER TEMPERATURE
(Superseded to 5023393YP)

$72.99

$

Usually ships in 2-12 days

0

7

Ferris 5023451

LIGHT, GLOW PLUG, 22MM AMBER
(Superseded to 5023451FS)

$48.99

$

Usually ships in 2-12 days

0

8

Ferris 5023452

LIGHT, WARNING, 22MM RED
(Superseded to 5023452FS)

$48.99

$

Usually ships in 2-12 days

0

9

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

10

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

11

Ferris 5025179X6

SCREW, #10-24 X 3/4"
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5103148

SWITCH, Ignition, Complete

$263.99

$

Usually ships in 2-12 days

0

13

Ferris 5100315

DECAL, CONTROL PANEL
(Superseded to 5100315FS)

$27.99

$

Usually ships in 2-12 days

0

14

Ferris 5048475A

PLATE, THROTTLE STOP

Note: (export model only)

$4.99

$

Usually ships in 2-12 days

0

15

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5046392

CABLE, THROTTLE CONTROL, 47.5"

$23.99

$

Usually ships in 2-12 days

0

17

Ferris 5022883X3

COVER PLATE

Note: (not illustrated)

$35.99

$

Usually ships in 2-12 days

0

18

Ferris 5022883X2

KEY, IGNITION

Note: (not illustrated)

$59.99

$

Usually ships in 2-12 days

0

19

Ferris 5103148X1

KEY, SET OF TWO, IGN SWITCH, CAT ENG

$67.99

$

Usually ships in 2-12 days

0
