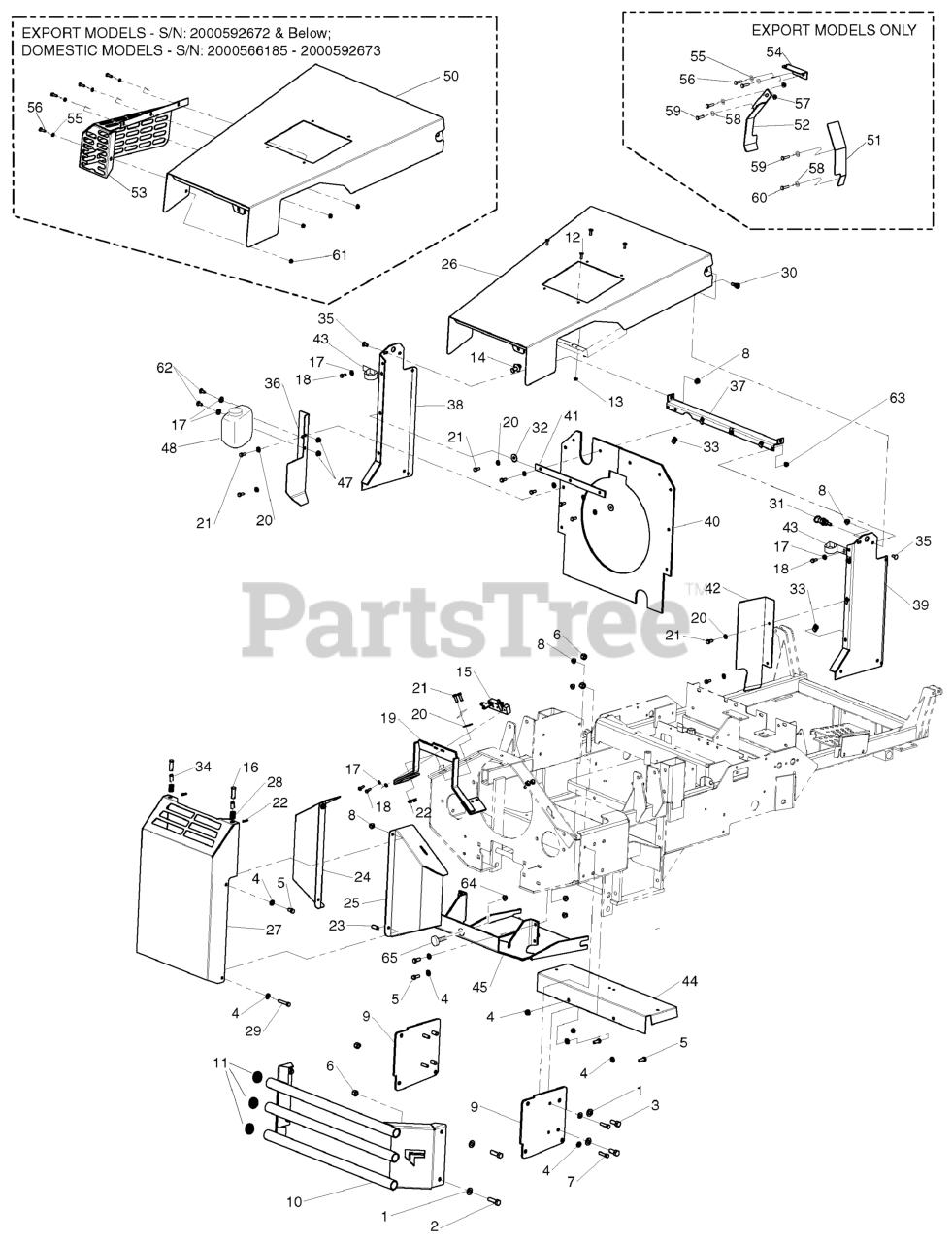

IS 5100Z (5900708) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel Hood, Bumper & Shields Group (All Models - S/N: 2000592672 & Below) Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

Hood, Bumper & Shields Group (All Models - S/N: 2000592672 & Below) Parts Diagram

  • Title

1

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

2

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

In Stock, only 2 left!

0

3

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

In Stock, Qty 20+

0

4

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

6

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

8

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Ferris 5400625B

PLATE, BUMPER MOUNT - RED

$41.99

$

Usually ships in 2-12 days

0

10

Ferris 5400255B

WELD, BUMPER, SERVICE IS4500 - RED

$

$

Currently unavailable

11

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025299X4

SCREW, 1/4-20 X 1/2" ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 20+

0

13

Ferris 5025391

NUT, 1/4-20 NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

14

Ferris 5100266

BOLT/WASHER ASM HOOD LATCH
(Superseded to 5100266FS)

$10.99

$

In Stock, only 2 left!

0

15

Ferris 5100265

HOOD LATCH, IS5000
(Superseded to 5100265FS)

$56.99

$

In Stock, only 2 left!

0

16

Ferris 5022807

BUMPER, RUBBER, 5/16-18
(Superseded to 5022807FS)

$8.49

$

Usually ships in 2-12 days

0

17

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

19

Ferris 5400937B

WELD, MOUNT HOOD LATCH - RED

$63.99

$

Usually ships in 2-12 days

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

22

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5044959

SPACER, .38 X .50 X 1.00
(Superseded to 5044959FS)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5400345B

WELD, BUMPER SIDE LH IS5000 - RED

$33.99

$

Usually ships in 2-12 days

0

25

Ferris 5400343B

WELD, BUMPER SIDE RH IS5000 - RED

$34.99

$

Usually ships in 2-12 days

0

26

Ferris 5400340B

WELD, IS5000 HOOD - RED
(Superseded to 5401652B)

$387.99

$

Usually ships in 2-12 days

0

27

Ferris 5400341B

WELD, CENTER BUMPER IS5000 - RED

$90.99

$

Usually ships in 2-12 days

0

28

Ferris 5061833

SPRING, HOOD LATCH

$9.49

$

Usually ships in 2-12 days

0

29

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

30

Ferris 5025356

BOLT, 3/8-16 X 3/8", 1/2" SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

31

Ferris 5100010

PIN, LATCH, SPR LOADED-PULL ACT

$

$

Currently unavailable

32

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

33

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

34

Ferris 5047199

SPACER, .38 X .50 X .75
(Superseded to 5047199FS)

$7.49

$

Usually ships in 2-12 days

0

35

Ferris 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

36

Ferris 5401089B

GUARD, FAN, LH - RED

$12.99

$

Usually ships in 2-12 days

0

37

Ferris 5400813B

SHROUD, SUPPORT

$17.99

$

Usually ships in 2-12 days

0

38

Ferris 5400765B

WELD, SHROUD CHANNEL - LH - RED

$51.99

$

Usually ships in 2-12 days

0

39

Ferris 5400786B

WELD, SHROUD CHANNEL, RH - RED

$53.99

$

Usually ships in 2-12 days

0

40

Ferris 5103796

SHROUD, RUBBER, IS5100Z

Note: was 5100178

$91.99

$

Usually ships in 2-12 days

0

41

Ferris 5061268B

BAR, RUBBER SUPPORT SIDE

$5.49

$

Usually ships in 2-12 days

0

42

Ferris 5401090B

GUARD, FAN, RH - RED

$16.99

$

Usually ships in 2-12 days

0

43

Ferris 5025430

CLAMP, 5/16 DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

44

Ferris 5401140B

SHIELD, DEBRIS - RED

$38.99

$

Usually ships in 2-12 days

0

45

Ferris 5400926B

WELD, SKID PLATE - RED

$136.99

$

Usually ships in 2-12 days

0

46

Ferris 5022922

CLAMP, #4 HOSE, STAINLESS
(Superseded to 5022922SM)

Note: (Not Shown)

$3.49

$

In Stock, only 1 left!

0

47

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

48

Ferris 5022883X34

EXPANSION TANK

$213.99

$

Usually ships in 2-12 days

0

49

Ferris 5022883X35

CAP

Note: (Not Shown)

$57.99

$

Usually ships in 2-12 days

0

50

Ferris 5401652B

WELD, HOOD, IS5100ZCE - RED

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$387.99

$

Usually ships in 2-12 days

0

51

Ferris 5401416B

GUARD, FLYWHEEL RH

Note: (Export Models)

$12.99

$

Usually ships in 2-12 days

0

52

Ferris 5401418B

GUARD, FLYWHEEL LH

Note: (Export Models)

$12.99

$

Usually ships in 2-12 days

0

53

Ferris 5401547B

WELD, MUFFLER GUARD

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$188.99

$

Usually ships in 2-12 days

0

54

Ferris 5401417B

GUARD, HOOD LATCH

Note: (Export Models)

$5.49

$

Usually ships in 2-12 days

0

55

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$4.49

$

Usually ships in 2-12 days

0

56

Ferris 5025010X6

BOLT, 1/4-20 X 3/4"
(Superseded to 5025010X6SM)

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$3.99

$

In Stock, Qty 20+

0

57

Ferris 5025392

NUT, 5/16-18 NYLOCK
(Superseded to 5025392FS)

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$3.49

$

Usually ships in 2-12 days

0

58

Ferris 5025155

WASHER, 5/16" SAE

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$

$

Currently unavailable

59

Ferris 5025011X8

BOLT, 5/16-18 X 1"
(Superseded to 5025011X8FS)

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$3.49

$

In Stock, Qty 17

0

60

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4"
(Superseded to 5025055X10YP)

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$3.49

$

Usually ships in 2-12 days

0

61

Ferris 5025391

NUT, 1/4-20 NYLOCK
(Superseded to 5025391FS)

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$3.99

$

In Stock, Qty 20+

0

62

Ferris 5025010X6

BOLT, 1/4-20 X 3/4"
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

63

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

64

Ferris 5025057

NUT, 5/16-18 LOCK
(Superseded to 5025057FS)

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$3.99

$

Usually ships in 2-12 days

0

65

Ferris 5022807

BUMPER, RUBBER, 5/16
(Superseded to 5022807FS)

Note: (Export Models; Domestic S/N: 2000566185 & ABOVE)

$8.49

$

Usually ships in 2-12 days
