IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

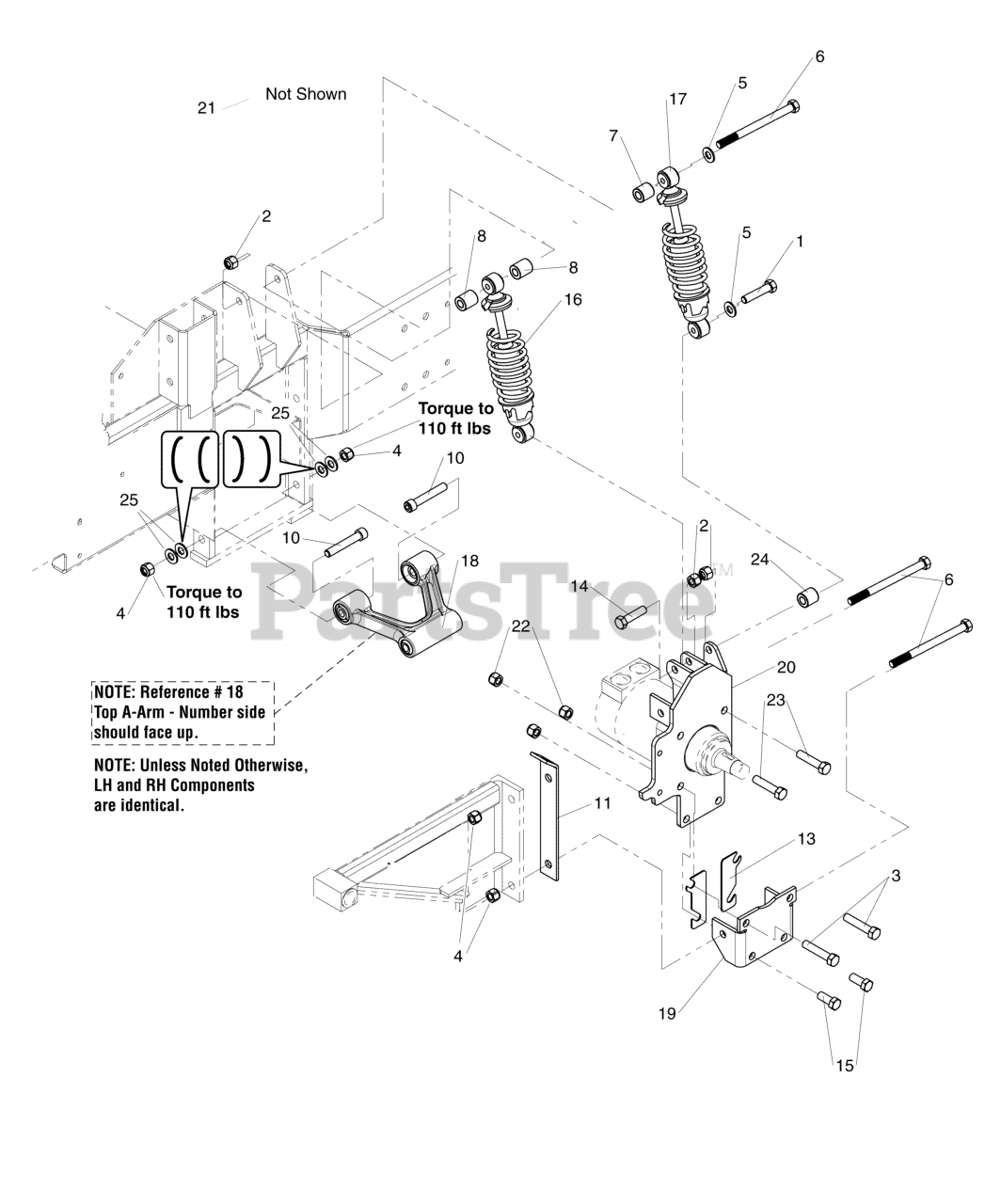

Rear Suspension Group Parts Diagram

  • Title

1

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

2

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0

3

Ferris 5025018X24

BOLT, 1/2-20 X 3" GD5 YZ
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

4

Ferris 5101927

NUT, 1/2-13 HEX NYLOCK FLANGE GR8, YZ
(Superseded to 5101927FS)

Note: (Torque to 110 ft lbs)

$2.99

$

In Stock, Qty 5

0

5

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

6

Ferris 5025488X52

BOLT, 1/2-13 X 6-1/2" GD8 YZ
(Superseded to 5025488X52YP)

$8.49

$

Usually ships in 2-12 days

0

7

Ferris 5049777

SPACER, .52 x 1.00 x 1.00
(Superseded to 5049777YP)

$11.99

$

Usually ships in 2-12 days

0

8

Ferris 5061781

SPACER, .52 X 1.00 X 1.15
(Superseded to 5061781FS)

$12.99

$

Usually ships in 2-12 days

0

9

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

Note: (not shown)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5025294X26

BOLT, 1/2-13 X 3-1/4" ALLEN HEAD
(Superseded to 5025294X26FS)

$3.99

$

In Stock, Qty 5

0

11

Ferris 5400802B

WELD, BRACKET, BRAKE CABLE, RH

$14.99

$

Usually ships in 2-12 days

0

12

Ferris 5400803B

WELD, BRACKET, BRAKE CABLE, LH

Note: (not shown)

$13.99

$

Usually ships in 2-12 days

0

13

Ferris 5100332

SHIM, CAMBER - PLATED
(Superseded to 5100332FS)

$20.99

$

In Stock, only 2 left!

0

14

Ferris 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

$4.49

$

In Stock, only 1 left!

0

15

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

16

Ferris 5023384

SHOCK, REAR, IS4500
(Superseded to 5023384FS)

$195.99

$

Usually ships in 2-12 days

0

17

Ferris 5100355

SHOCK/SPRING ASSEMBLY, IS5000 (2006)

$207.99

$

In Stock, only 2 left!

0

18

Ferris 5101617

ASSM, A-ARM WITH BEARINGS
(Superseded to 5101617FS)

Note: (Number Side Should Face Up)(*See Footnote)

$373.99

$

Usually ships in 2-12 days

0

19

Ferris 84008457

MOUNT

$58.99

$

Usually ships in 2-12 days

0

20

Ferris 5400874B

WELD, MOTOR MOUNT, LH - RED

$101.99

$

In Stock, only 2 left!

0

21

Ferris 5400873B

WELD, MOTOR MOUNT, RH - RED

Note: (not shown)

$101.99

$

Usually ships in 2-12 days

0

22

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

23

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

24

Ferris 5044609

SPACER, .52 X 1.00 X .38, CZ
(Superseded to 5044609SM)

$6.49

$

Usually ships in 2-12 days

0

25

Ferris 5025523

BELLEVILLE WASHER, 1.259 X .512 X .138 YZ
(Superseded to 5025523FS)

$5.49

$

In Stock, Qty 5

0
