IS 5100Z (5900618) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel Deck Lift Group (S/N: 2000729894 & Above) Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

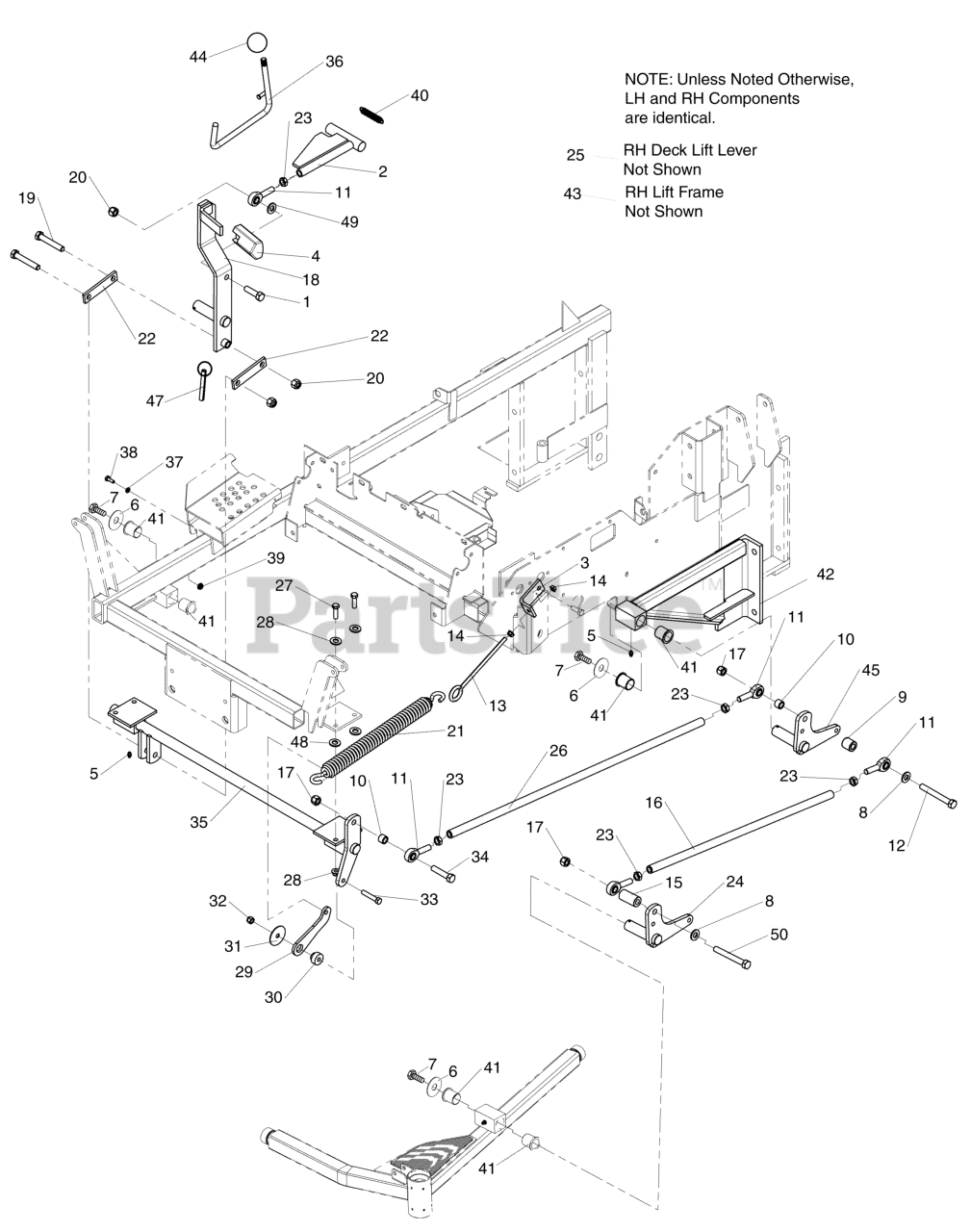

Deck Lift Group (S/N: 2000729894 & Above) Parts Diagram

  • Title

1

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

In Stock, only 2 left!

0

2

Ferris 5061119B

WELD, DECK ADJUST LINK

$61.99

$

Usually ships in 2-12 days

0

3

Ferris 5061355B

ANCHOR, EYEBOLT
(Superseded to 5061355AA)

$9.49

$

Usually ships in 2-12 days

0

4

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0

5

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

6

Ferris 5100548

WASHER, .390 X 1.50 X .109
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5049777

SPACER, .52 X 1.00 X 1.00
(Superseded to 5049777YP)

$11.99

$

Usually ships in 2-12 days

0

10

Ferris 5047027

SPACER, .51 X .75 X .56
(Superseded to 5047027SM)

$5.49

$

In Stock, Qty 20+

0

11

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

12

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 4 left!

0

13

Ferris 5021811

EYE BOLT, 3/8-16 X 8", 1" EYE
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

14

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

15

Ferris 5061781

SPACER, .52 X 1.00 X 1.15
(Superseded to 5061781FS)

$12.99

$

Usually ships in 2-12 days

0

16

Ferris 5061350

ROD, DECK LIFT OUTER

$75.99

$

Usually ships in 2-12 days

0

17

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

18

Ferris 5402813B

WELD, DECK LIFT PEDAL - RED

$

$

Currently unavailable

19

Ferris 5025018X24

BOLT, 1/2-20 X 3" GD5 YZ
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

20

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

21

Ferris 5023392

SPRING, DECK LIFT ASSIST
(Superseded to 5023392YP)

$74.99

$

Usually ships in 2-12 days

0

22

Ferris 5044994B

LINK, DECK LIFT - RED

$6.49

$

Usually ships in 2-12 days

0

23

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 20+

0

24

Ferris 5401671A

WELD, DECK LIFT LEVER, LH - BLK
(Superseded to 5401671AYP)

$61.99

$

Usually ships in 2-12 days

0

25

Ferris 5401672A

WELD, DECK LIFT LEVER, RH - BLK
(Superseded to 5401672AYP)

Note: (not shown)

$67.99

$

Usually ships in 2-12 days

0

26

Ferris 5061349

ROD, DECK LIFT INNER

$93.99

$

Usually ships in 2-12 days

0

27

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

28

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

29

Ferris 5061224B

LINK, SPRING
(Superseded to 5061224BFS)

$17.99

$

Usually ships in 2-12 days

0

30

Ferris 5061227

BUSHING, DECK PIVOT
(Superseded to 5061227SM)

$13.99

$

Usually ships in 2-12 days

0

31

Ferris 5025326

WASHER, .39 X 2.00 X X .14
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

32

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

34

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

35

Ferris 5400924B

WELD, LIFT SHAFT, IS5000Z - RED

$193.99

$

Usually ships in 2-12 days

0

36

Ferris 5061116B

WELD, ROD DECK LIFT
(Superseded to 5061116BFS)

$40.99

$

Usually ships in 2-12 days

0

37

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

38

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

39

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

40

Ferris 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

41

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

42

Ferris 5300038

ASSM, REAR DECK LIFT LH

$

$

Currently unavailable

43

Ferris 5300039

ASSM, REAR DECK LIFT RH
(Superseded to 5300039B)

Note: (not shown)

$210.99

$

Usually ships in 2-12 days

0

44

Ferris 5021733

KNOB, PLASTIC, 1/2-13
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

45

Ferris 5402812B

WELD, DECK LIFT LEVER, LH - RED

$35.99

$

Usually ships in 2-12 days

0

46

Ferris 5402811B

WELD, DECK LIFT LEVER, RH - RED

Note: (not shown)

$35.99

$

Usually ships in 2-12 days

0

47

Ferris 5022045

PIN, COTTERLESS
(Superseded to 5022045SM)

$14.99

$

Usually ships in 2-12 days

0

48

Ferris 5025293

WASHER, 3/8" GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

49

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

50

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0
