IS 5100Z (5900602) - Ferris IS5100Z Series Zero-Turn Mower, 33hp Caterpillar Diesel Main Frame & Front Suspension Group Parts Diagram

IS5100Z Series Zero-Turn Mower, 33hp Caterpillar Diesel

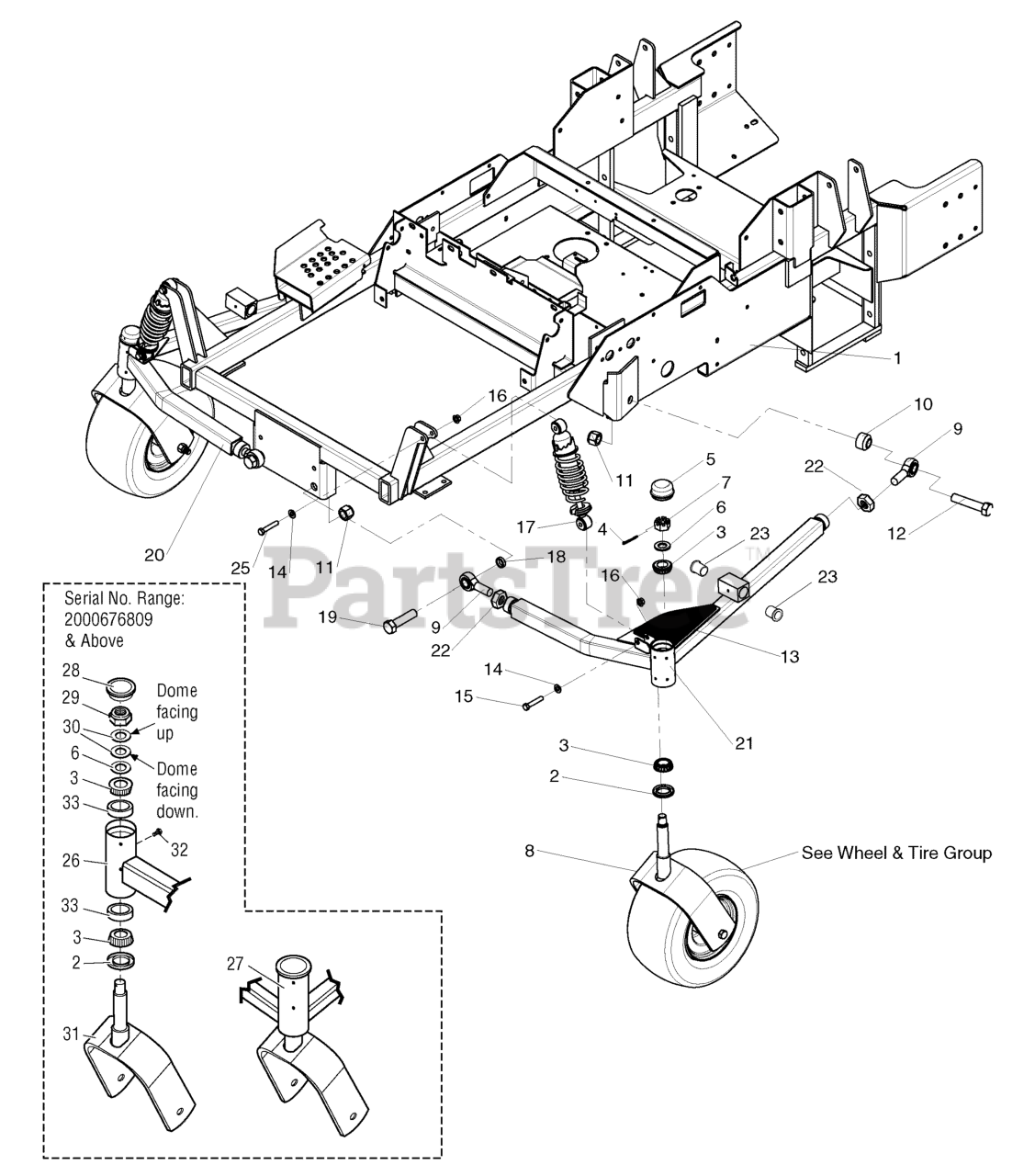

Main Frame & Front Suspension Group Parts Diagram

  • Title
1

Ferris 5400242B

WELD, MAIN FRAME IS5000 - RED

Note: (old)

$

$

Currently unavailable

1

Ferris 5407418B

WELD, MAIN FRAME IS5100 - RED

Note: (new)

$

$

Currently unavailable

2

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 3 left!

0

3

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

4

Ferris 5025202X12

3/16 X 1-1/2 COTTER PIN
(Superseded to 5025202X12SM)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5021073

CAP, DUST
(Superseded to 5021073SM)

$7.49

$

In Stock, only 4 left!

0

6

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

7

Ferris 5025104

NUT, 3/4-16 HEX SLOTTED
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

8

Ferris 5401115B

WELD, CASTER YOKE - RED
(Superseded to 5600100)

$186.99

$

In Stock, only 2 left!

0

9

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

10

Ferris 5046093

SPACER, .75 X 1.50 X 1.00
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

11

Ferris 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

12

Ferris 5025265X28

BOLT, 3/4-16 X 3-1/2" YZ GD5
(Superseded to 5025265X28SM)

$15.99

$

Usually ships in 2-12 days

0

13

Ferris 5101003

SAFETY WALK, IS5000Z A-ARM STEP
(Superseded to 5101003FS)

$11.99

$

Usually ships in 2-12 days

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5022842

COIL-OVER SHOCK ASSEMBLY
(Superseded to 5022842SM)

$216.99

$

In Stock, only 2 left!

0

18

Ferris 5046093

SPACER, .75 X 1.50 X 1.00
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

19

Ferris 5025265X28

BOLT, 3/4-16 X 3-1/2" YZ GD5
(Superseded to 5025265X28SM)

$15.99

$

Usually ships in 2-12 days

0

20

Ferris 5300037

ASSM, SUSPENSION ARM RH - RED

$575.99

$

Usually ships in 2-12 days

0

21

Ferris 5300036

ASSM, SUSPENSION ARM LH - RED

$575.99

$

Usually ships in 2-12 days

0

22

Ferris 5025093

NUT, 3/4-16 HEX JAM
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

23

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

24

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

Note: (not shown)

$3.99

$

In Stock, only 3 left!

0

25

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 4 left!

0

26

Ferris 84008463

WELD, SUSPENSION ARM - RH - RED

Note: (Serial No.: 2000676809 & Above)

$461.99

$

Usually ships in 2-12 days

0

27

Ferris 5402216B

WELD, SUSPENSION ARM - LH - RED

Note: (Serial No.: 2000676809 & Above)

$450.99

$

Usually ships in 2-12 days

0

28

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

Note: (Serial No.: 2000676809 & Above)

$7.99

$

In Stock, Qty 20+

0

29

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

Note: (Serial No.: 2000676809 & Above)

$3.49

$

In Stock, Qty 20+

0

30

Ferris 5025449

BELLEVILLE WASHER, 1.500 X .755
(Superseded to 5025449SM)

Note: (Serial No.: 2000676809 & Above)

$4.99

$

Usually ships in 2-12 days

0

31

Ferris 5402206B

WELD, CASTER YOKE - RED
(Superseded to 5402206BFS)

Note: (Serial No.: 2000676809 & Above)

$165.99

$

In Stock, only 1 left!

0

32

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

Note: (Serial No.: 2000676809 & Above)

$3.99

$

In Stock, only 3 left!

0

33

Ferris 5020883

BEARING CUP

Note: (Serial No.: 2000676809 & Above)

$8.99

$

Usually ships in 2-12 days

0
