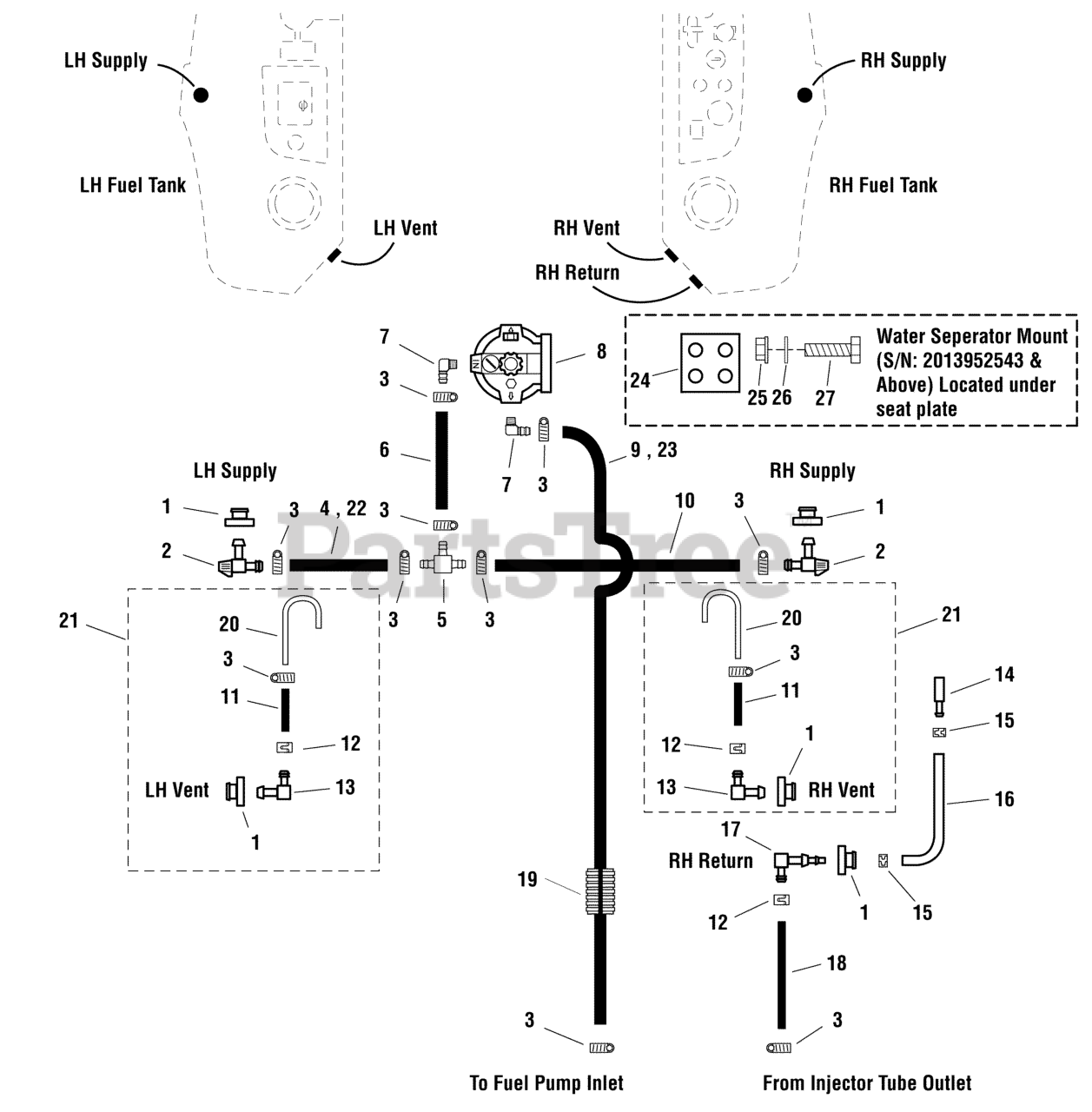

IS 5100Z (5900507) - Ferris IS5100Z Series Zero-Turn Mower, 33hp Caterpillar Diesel Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

IS5100Z Series Zero-Turn Mower, 33hp Caterpillar Diesel

Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

  • Title

1

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

2

Ferris 5023060

VALVE, Fuel Shut Off

$49.99

$

Usually ships in 2-12 days

0

3

Ferris 5022922

CLAMP, #4 Hose
(Superseded to 5022922SM)

$3.49

$

In Stock, only 1 left!

0

4

Ferris 5050919X26P5

HOSE, 3/8" FUEL, 26.50"

$14.99

$

Usually ships in 2-12 days

0

5

Ferris 5022920

FITTING, TEE, 3/8" Hose
(Superseded to 5022920SM)

$18.99

$

Usually ships in 2-12 days

0

6

Ferris 5050919X3P5

HOSE, 3/8" FUEL, 3.50"

Note: (S/N: 2013952542 & Below)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5022708

FITTING, 1/4" NPT, 90 Deg.

$10.99

$

Usually ships in 2-12 days

0

8

Ferris 5022926

FILTER/WATER SEPARATOR ASSEMBLY, Complete

$469.99

$

Usually ships in 2-12 days

0

8

Ferris 5022926X1

FUEL FILTER

$111.99

$

In Stock, only 2 left!

0

8

Ferris 5022926X2

O-RING SEAL

Note: (between filter and bowl)

$36.99

$

In Stock, only 2 left!

0

8

Ferris 5022926X3

BOWL

$257.99

$

Usually ships in 2-12 days

0

9

Ferris 5050919X54

HOSE, 3/8" FUEL, 54.00"

Note: (S/N: 2013952542 & Below)

$37.99

$

Usually ships in 2-12 days

0

10

Ferris 5050919X35

HOSE, 3/8" FUEL, 35.00

$16.99

$

Usually ships in 2-12 days

0

11

Ferris 5050831X8

HOSE, 1/4" FUEL, 8.00"
(Superseded to 5050831X8YP)

$5.99

$

Usually ships in 2-12 days

0

12

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

13

Ferris 1674231

ELBOW FITTING
(Superseded to 1674231SM)

$

$

Not available

14

SEE REF # 16

$

$

Not available

15

SEE REF # 16

$

$

Not available

16

Ferris 5101158

HOSE ASSEMBLY

$13.99

$

Usually ships in 2-12 days

0

17

SEE REF # 16

$

$

Not available

18

Ferris 5050831X33P5

HOSE, 1/4" FUEL, 33.50"

$14.99

$

In Stock, only 1 left!

0

19

Ferris 5050861X25

LOOM, 5/8" I.D., 25

$5.49

$

Usually ships in 2-12 days

0

20

Ferris 5404079

VENT TUBE, DIESEL
(Superseded to 5404079FS)

$10.99

$

Usually ships in 2-12 days

0

21

Ferris 5600160

KIT, FUEL TANK VENT LINE

Note: (Includes Ref Nos 1, 3, 11 - 13 & 20)

$91.99

$

Usually ships in 2-12 days

0

22

Ferris 5050919X4P5

HOSE, 3/8" FUEL, 4.5"

Note: (S/N: 2013952543 & Above)

$

$

Currently unavailable

23

Ferris 5050919X56

HOSE, 3/8" FUEL, 56"

Note: (S/N: 2013952543 & Above)

$40.99

$

Usually ships in 2-12 days

0

24

Ferris 5406039B

MOUNT, WATER SEPERATOR - RED

Note: (S/N: 2013952543 & Above)

$

$

Currently unavailable

25

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (S/N: 2013952543 & Above)

$4.49

$

In Stock, Qty 20+

0

26

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (S/N: 2013952543 & Above)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

Note: (S/N: 2013952543 & Above)

$3.99

$

Usually ships in 2-12 days
