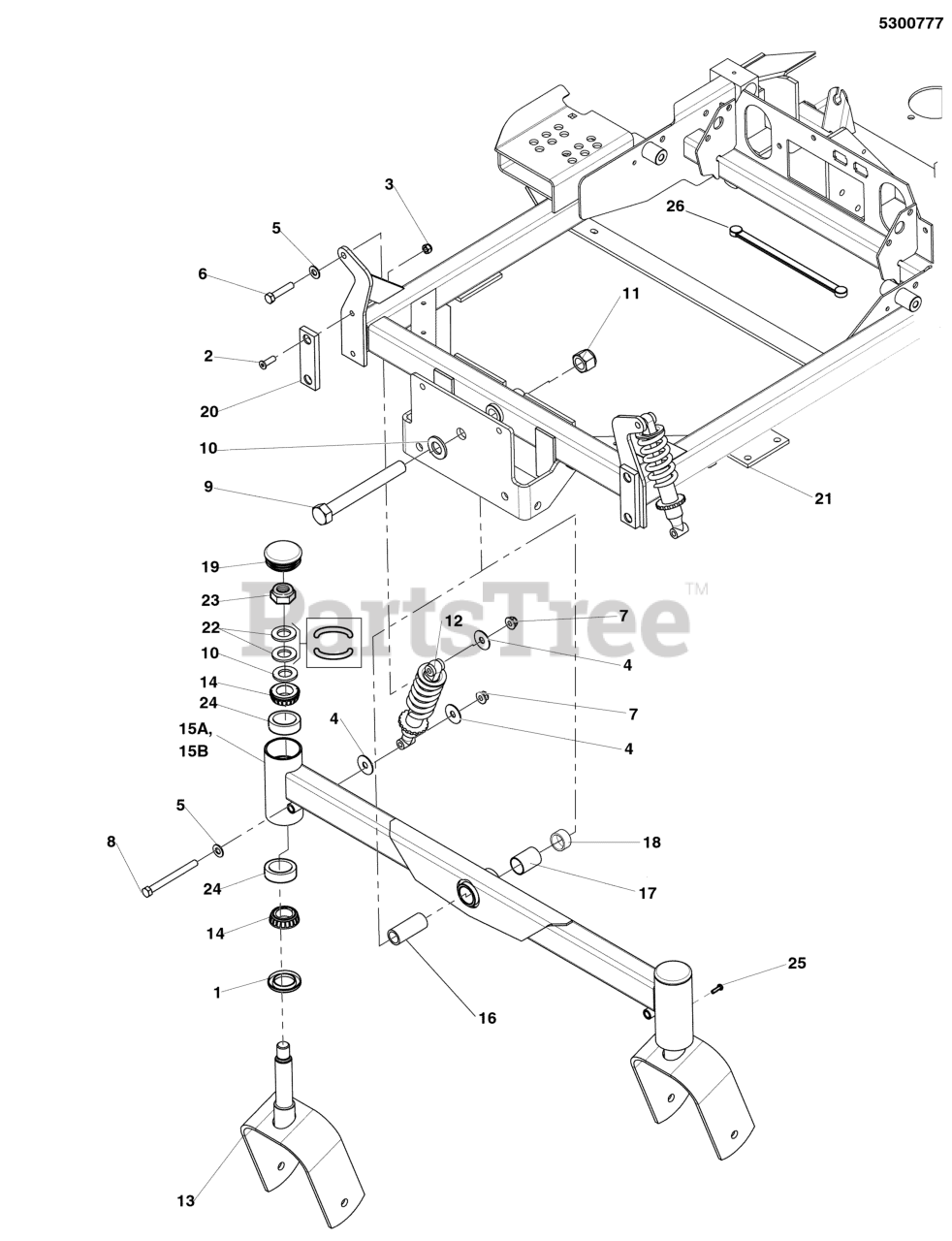

IS 500Z (5900770) - Ferris IS500Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton Main Frame & Front Suspension Group Parts Diagram

IS500Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton

Main Frame & Front Suspension Group Parts Diagram

  • Title

1

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

2

Ferris 5025594

SCREW, 5/16-18 X 1 PHILLIPS HD, BZ
(Superseded to 5025594YP)

Note: (Was 5025303)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025165

WASHER, 3/8" FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

5

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

9

Ferris 5025265X52

BOLT, 3/4-16 X 6-1/2" YZ GD5
(Superseded to 5025265X52SM)

$15.99

$

In Stock, Qty 7

0

10

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

11

Ferris 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

12

Ferris 5023483

SHOCK, SPRING ASSEMBLY
(Superseded to 5023483SM)

$55.99

$

In Stock, Qty 15

0

13

Ferris 5402539B

WELD, CASTER YOKE - RED
(Superseded to 5402539BFS)

$201.99

$

Usually ships in 2-12 days

0

14

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

15a

Ferris 5402536B

WELD, FRONT PIVOT, IS500Z - RED
(Superseded to 5600255)

Note: (44" & 52" Models)

$492.99

$

Usually ships in 2-12 days

0

15b

Ferris 5409889B

WELD, PIVOTING FRONT END - RED

Note: (61" Models)

$398.99

$

Usually ships in 2-12 days

0

16

Ferris 5047489

SPACER, .75 X 1.00 X 2.38
(Superseded to 5047489SM)

$35.99

$

In Stock, Qty 13

0

17

Ferris 5022852

PIVOT BEARING, 1.00" X 1.125" OD X 1.50"
(Superseded to 5022852SM)

$33.99

$

In Stock, Qty 16

0

18

Ferris 5100358

PIVOT BEARING, 1.00" X 1.125" OD X .50"
(Superseded to 5100358SM)

$18.99

$

In Stock, Qty 14

0

19

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

20

Ferris 5102702

PAD, FRICTION, .375 X 1.25 X 4.00
(Superseded to 5102702YP)

$6.99

$

Usually ships in 2-12 days

0

21

Ferris 5403394B

WELD, IS500 MAIN FRAME - RED

$

$

Currently unavailable

22

Ferris 5025449

WASHER, BELLEVILLE
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

23

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

24

Ferris 5020883

BEARING CUP

$8.99

$

Usually ships in 2-12 days

0

25

Ferris 5025457

BOLT, 1/4-28 X 1/2" GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 3 left!

0

26

Ferris 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0
