IS 500Z (5900730) - Ferris IS500Z Series 44" Zero-Turn Mower, 24hp Briggs & Stratton Wheel & Tire Group Parts Diagram

IS500Z Series 44" Zero-Turn Mower, 24hp Briggs & Stratton

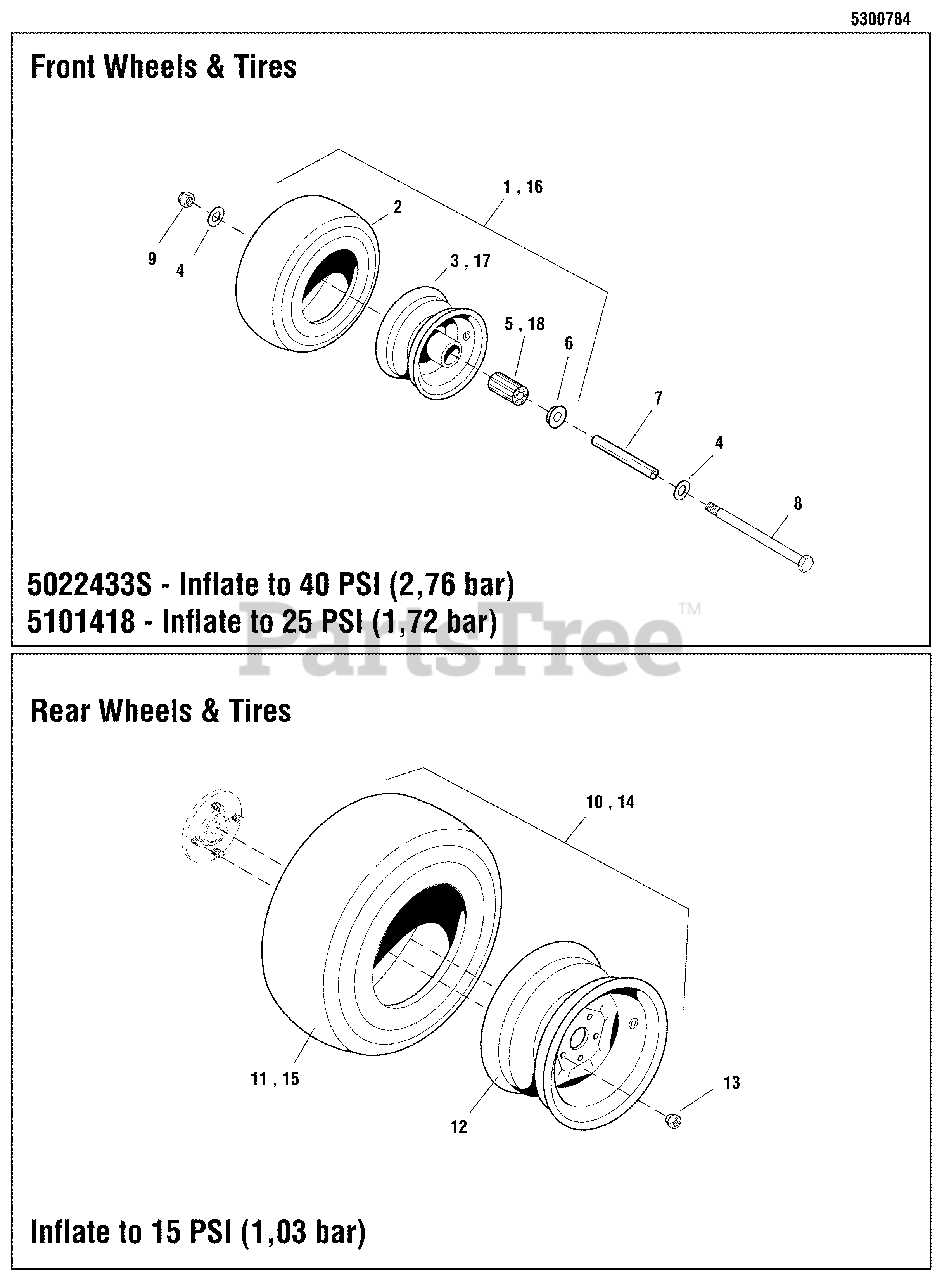

Wheel & Tire Group Parts Diagram

  • Title
1

USE 5101418 - WHEEL, CASTER, 11 X 4 - 5 SILVER, BEAD LOCK (Max PSI: 25)

Note: (S/N: 2013130773 & Below) (Replacement Wheel for 5101418 is 5101418X2)

$

$

Not available

2

Ferris 5022433X1

TIRE, FRONT, 11 X 4.0 - 5

Note: (SV)

$70.99

$

Usually ships in 2-12 days

0

3

Ferris 5022433SX2

WHEEL ASSEMBLY, COMPLETE
(Superseded to 5101418X2YP)

Note: (S/N: 2013130773 & Below)

$84.99

$

In Stock, only 1 left!

0

4

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

5

Ferris 5021042

BEARING, ROLLER

Note: (SV - S/N: 2013130773 & Below)

$

$

Currently unavailable

6

Ferris 5021043

BEARING, RETAINER

Note: (SV)

$6.99

$

Usually ships in 2-12 days

0

7

Ferris 5045996

CASTER AXLE DDSH
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

8

Ferris 5025017X56

BOLT, 1/2-13 X 7" GD5 YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

9

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

10

Ferris 5101480

TIRE ASM, REAR, 20 X 8.0 X 10

Note: (44" Models)

$263.99

$

Usually ships in 2-12 days

0

11

Ferris 5023095X1

TIRE, REAR, 20 X 8.0 X 10
(Superseded to 5102329)

Note: (SV - 44" Models)

$349.99

$

Usually ships in 2-12 days

0

12

Ferris 5023369X1

RIM-10X7-5-4.5 SOLID
(Superseded to 5023369X1SM)

Note: (SV)

$192.99

$

Usually ships in 2-12 days

0

13

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

14

Ferris 5101345

TIRE ASM, REAR, 20 X 10 X 10

Note: (52" & 61" Models)

$281.99

$

Usually ships in 2-12 days

0

15

Ferris 5101345X1

TIRE, REAR, 20 X 10 X 10

Note: (SV - 52" & 61" Models)

$

$

Currently unavailable

16

Ferris 5101418

WHEEL, CASTER, 11 X 4.0-5
(Superseded to 5101418YP)

Note: (SV - S/N: 2013130774 & Above)

$127.99

$

In Stock, Qty 11

0

17

Ferris 5101418X2

WHEEL FOR 11X4.0-5 TIRE ASSM

Note: (SV - S/N: 2013130774 & Above)

$

$

Currently unavailable

18

Ferris 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0-5

Note: (SV - S/N: 2013130774 & Above)

$27.99

$

Usually ships in 2-12 days

0
