IS 5000Z (5901074) - Ferris IS5000Z Series 61" Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1226 & Above) Seat Compartment Group Parts Diagram

IS5000Z Series 61" Zero-Turn Mower, 31hp Caterpillar Diesel

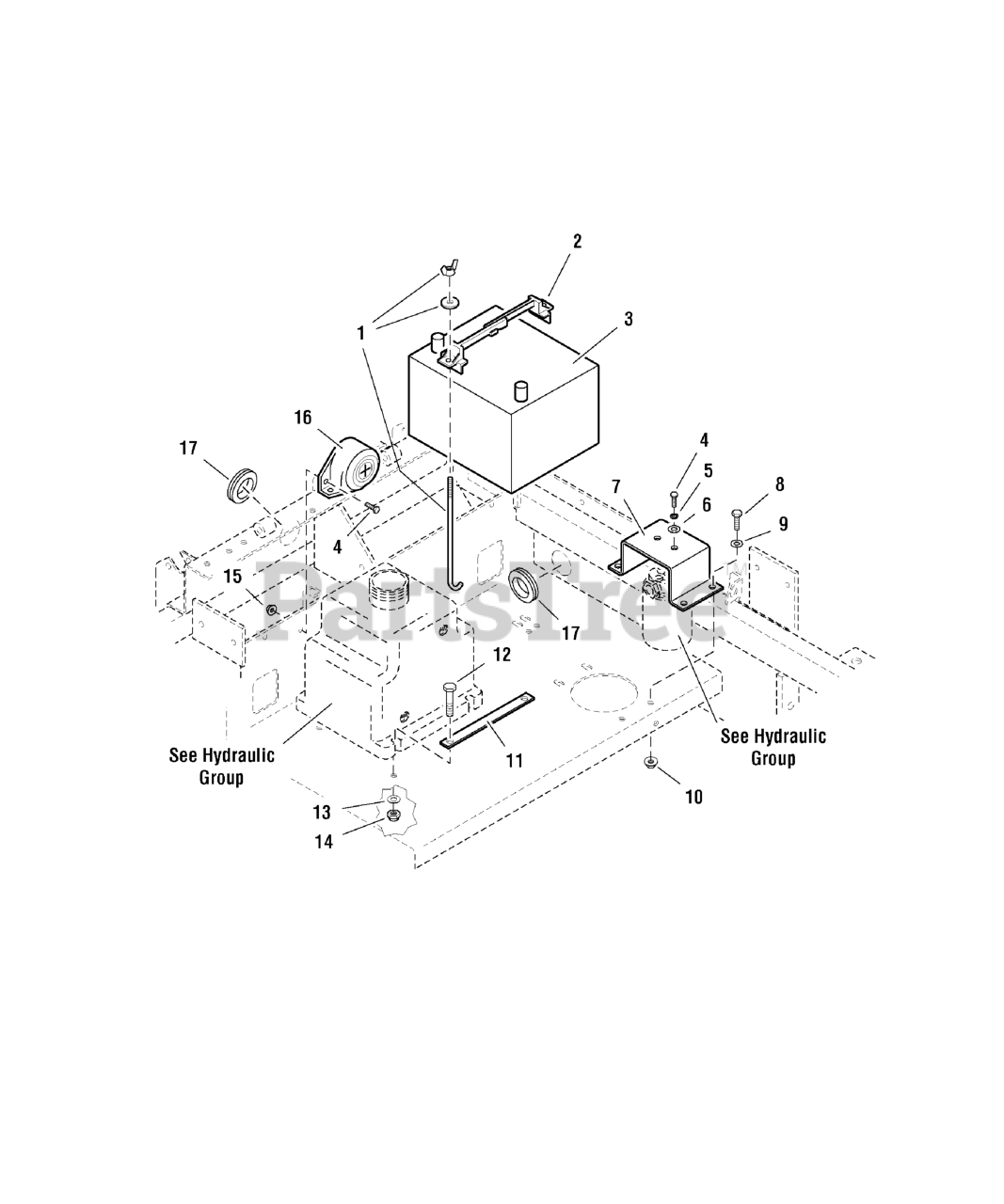

Seat Compartment Group Parts Diagram

  • Title

1

Ferris 5022596

BATTERY HOLDDOWN BOLT

$6.99

$

Usually ships in 2-12 days

0

2

Ferris 5022595

BATTERY HOLDDOWN
(Superseded to 5022595SM)

$23.99

$

Usually ships in 2-12 days

0

3

BATTERY, 12V (BCI58, 500 CCA)

$

$

Not available

4

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

5

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 4 left!

0

6

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 5047635B

OIL FILTER MOUNT

$30.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

11

Ferris 5046061B

HOLD DOWN PLATE

$

$

Currently unavailable

12

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5022594

ALARM

$148.99

$

Usually ships in 2-12 days

0

17

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0
