IS 5000Z (5901074) - Ferris IS5000Z Series 61" Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1226 & Above) Fuel Tank & Mount Group Parts Diagram

IS5000Z Series 61" Zero-Turn Mower, 31hp Caterpillar Diesel

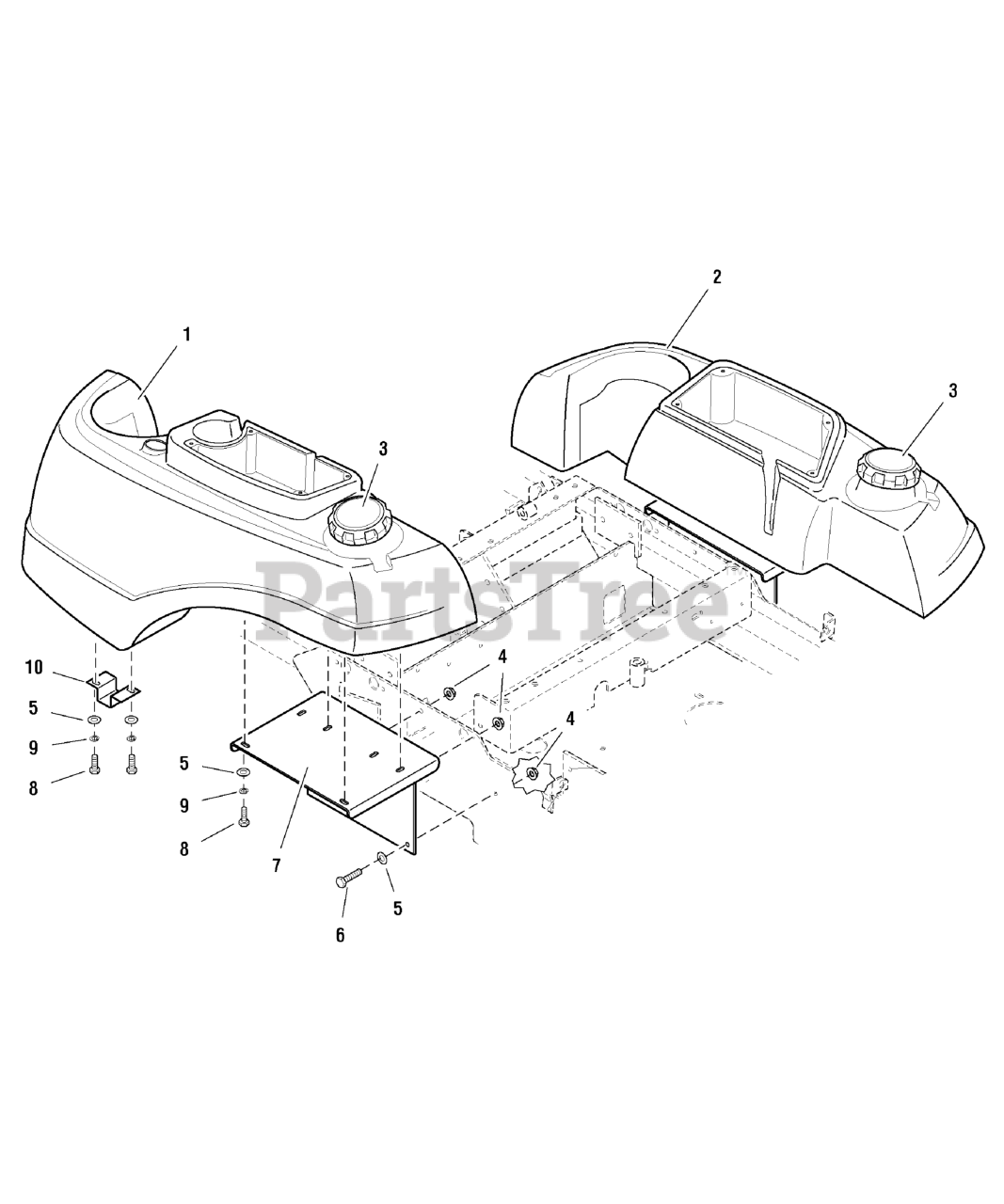

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5049120

FUEL TANK, IS5000Z, LH

$

$

Currently unavailable

2

Ferris 5049121

FUEL TANK, IS5000Z, RH

$462.99

$

Usually ships in 2-12 days

0

3

Ferris 5022915

FUEL TANK CAP, DIESEL

Note: (Yellow center, non-vented)

$50.99

$

In Stock, only 1 left!

0

4

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

7

Ferris 5048527B

FUEL TANK MOUNT

$106.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

9

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5047993B

GUARD, Tank Valve

$13.99

$

Usually ships in 2-12 days

0
